Philips Goldway UT7000C Patient Monitor Temperature Board C-IBPTEMPC0013A

Philips UT7000C Temperature Board

Philips Goldway UT7000C Patient Monitor Temperature Board C-IBPTEMPC0013A

► Product Overview

The C-IBPTEMPC0013A is the dedicated temperature acquisition board for the Philips Goldway UT7000C patient monitor. It's the core component responsible for processing signals from two temperature probes and delivering accurate, stable readings to the display.

The board uses a compact PCB with surface-mount components, carrying a high-precision signal acquisition chip, voltage divider sampling circuits, and filtering and regulation components. It supports dual-channel temperature monitoring, simultaneously recognising both surface and cavity thermistor probes. Gold-plated contacts connect directly to the monitor's temperature sockets, capturing resistance changes in real time and converting them to standard temperature values via the on board circuit

► Specification

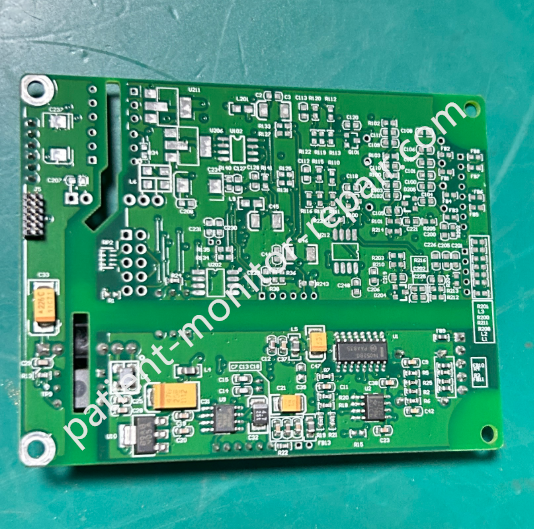

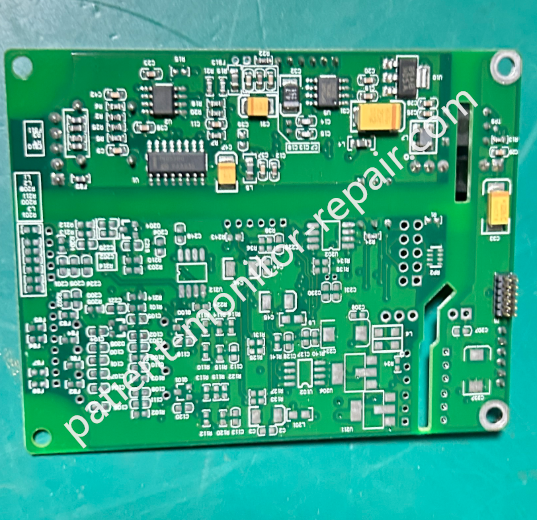

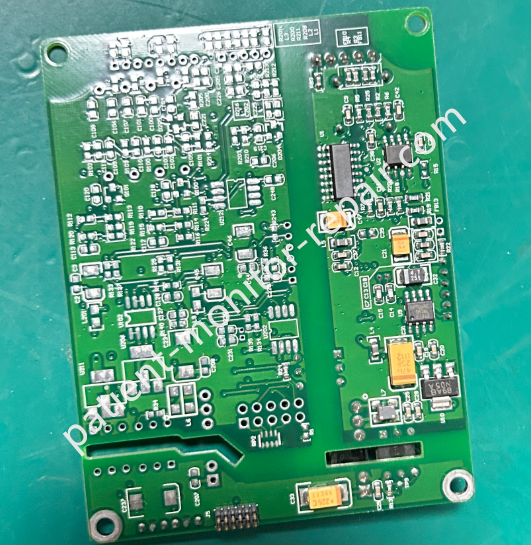

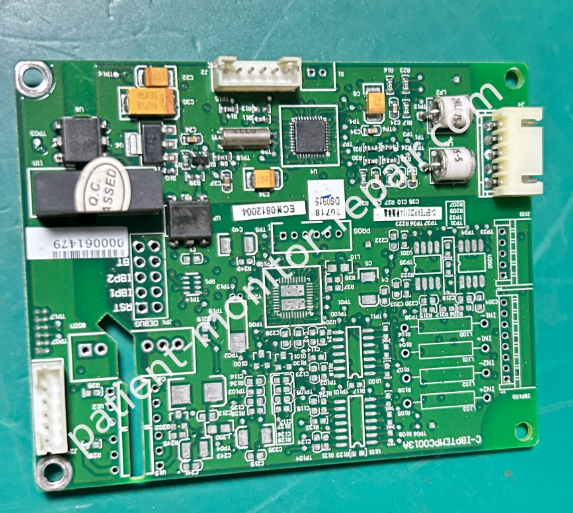

► Detailed Photos

Tags： Philips Goldway UT7000C, Philips Monitor Board, UT7000C Temperature Board,
