Philips Goldway UT7000C Patient Monitor SpO2 Interface

► Product Overview

The SpO₂ interface on the Philips Goldway UT7000C is the physical connection point on the monitor's front or side panel where the SpO₂ sensor cable plugs in. It's the gateway through which all blood oxygen data enters the monitor,  the raw photoelectric signals from the probe pass through this port on their way to the SpO₂ processing board (C-IP02011B).

The interface is a dedicated socket designed specifically for SpO₂ probes – it's not a generic connector, and it's not interchangeable with other ports on the monitor. It's part of the monitor's parameter panel, where all the patient cable connections are grouped together. The socket is clearly labelled and uses a keyed, fool‑proof design to prevent incorrect insertion.

► Specification

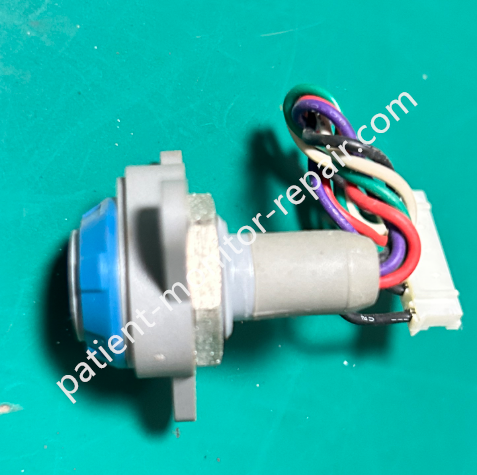

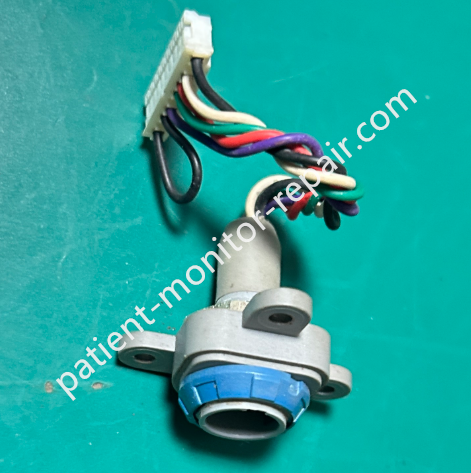

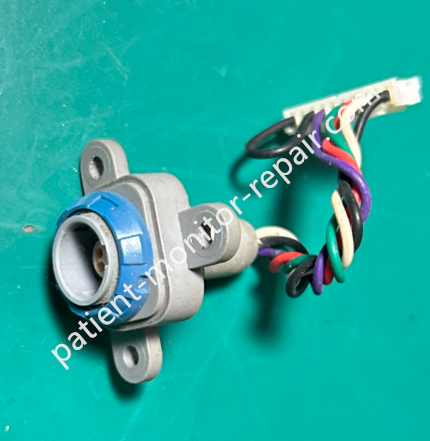

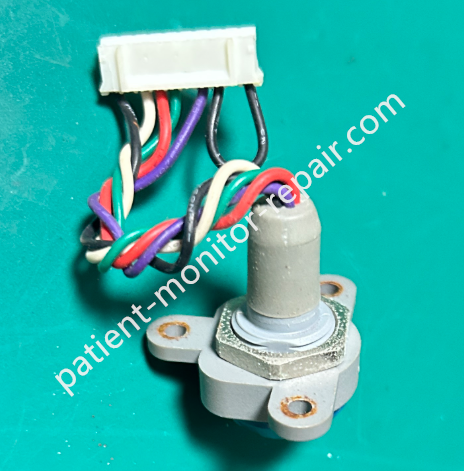

► Detailed Photos
