Philips Goldway UT7000C Patient Monitor Temperature Interface

► Product Overview

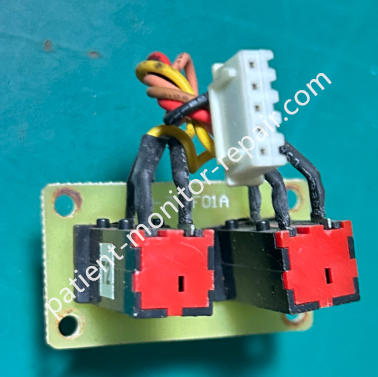

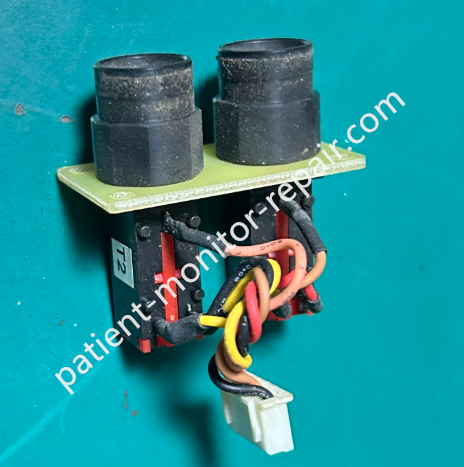

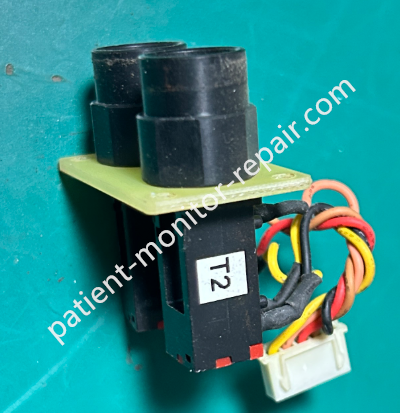

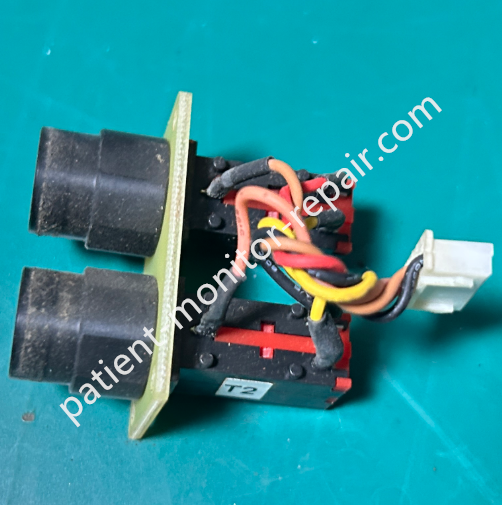

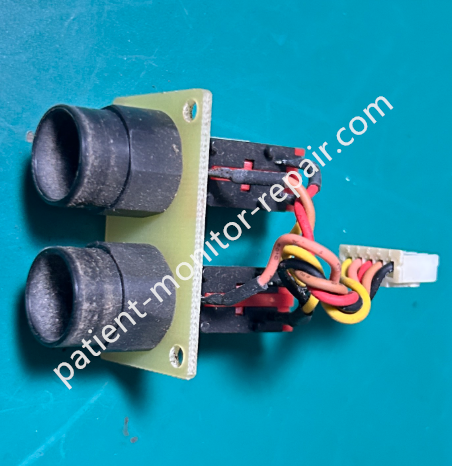

The temperature interface on the Philips Goldway UT7000C is the dedicated socket on the monitor's front panel where the temperature probe plugs in. It's the physical gateway for all data the probe's resistance signals pass through this port on their way to the temperature processing board .

This socket is an oval-shaped, multi-pin medical-grade connector mounted on the side of the front panel. It is clearly labeled and designed specifically for temperature probes, so you won't accidentally insert a pulse oximeter sensor or ECG lead. The housing is made of high-strength medical-grade insulating plastic, capable of withstanding repeated wiping with alcohol and quaternary ammonium disinfectants without cracking, yellowing, or becoming brittle. The internal metal contacts are gold-plated to prevent oxidation, and the spring tension is carefully calibrated to withstand frequent probe changes without loosening or causing connection instability.

► Specification
