Philips Goldway UT7000C Patient Monitor Triple Power Interface Board C-G40F011A 35201505000

Philips UT7000C Triple Power Interface Board

Philips Goldway UT7000C Patient Monitor Triple Power Interface

Board C-G40F011A 35201505000

► Product Overview

The C-IP02011B is the dedicated SpO₂ acquisition and processing board for the Philips Goldway UT7000C patient monitor. It's the hardware that actually handles all the blood oxygen monitoring taking the raw photoelectric signals from the probe, turning them into usable data, and feeding them to the main display.

The board also handles probe identification and safety self-checks. Through contact points on the interface, it recognises whether an original reusable or disposable SpO₂ sensor is connected and automatically matches the drive parameters. On the communication side, the C-IP02011B connects to the mainboard via an internal ribbon cable. It transmits SpO₂ values, pulse rate, perfusion index, and the pulse waveform to the display, and integrates with the monitor's alarm logic supporting user defined upper/lower SpO₂ limits and pulse rate alarms.

► Specification

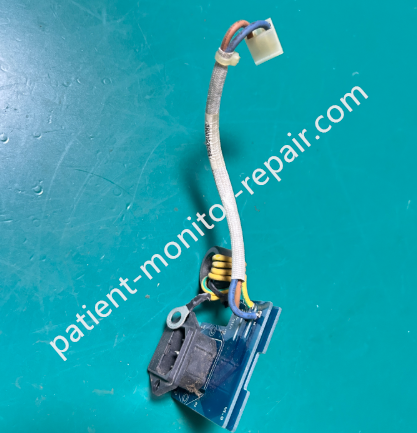

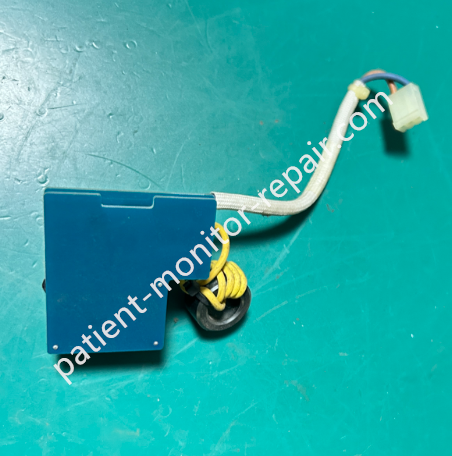

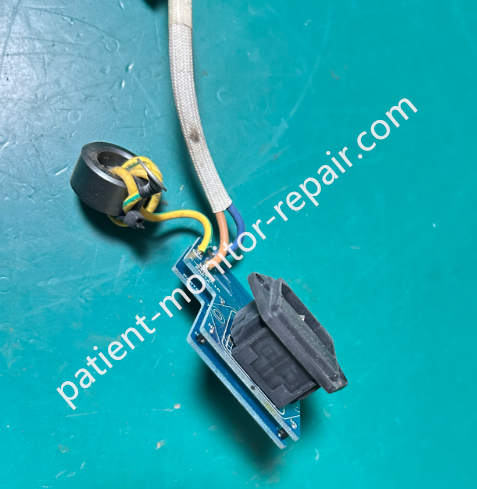

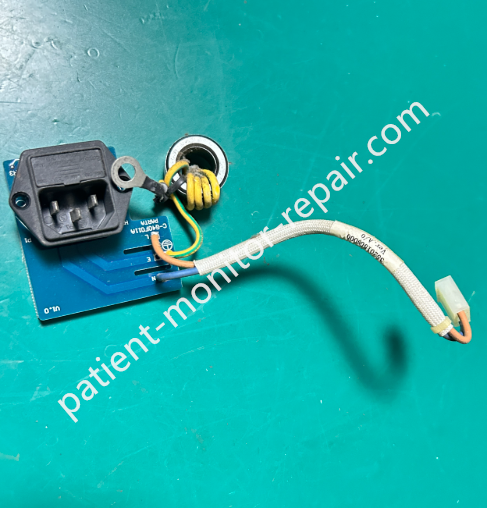

► Detailed Photos

Tags： Philips Goldway, UT7000C Patient Monitor, Triple Power Interface Board,
