Philips Goldway UT7000C Patient Monitor NIBP Board C-NIBP312B

Philips UT7000C  NIBP Board

Philips Goldway UT7000C Patient Monitor NIBP Board C-NIBP312B

► Product Overview

This board is the only component in the UT7000C that handles non-invasive blood pressure measurement. It integrates five core circuits  pneumatics drive, pressure sensing, signal processing, safety protection, and data communication  into one module.

Uses oscillometric measurement for accurate readings. The board works with a high-precision pressure sensor, differential amplification and filtering circuits, an A/D converter, and a dedicated control microcontroller. When the mainboard sends a measure command, the board drives the pump to inflate the cuff to the appropriate pressure, captures the oscillometric pressure signals from the cuff, and processes them through amplification, noise reduction, and analogue-to-digital conversion. The built-in algorithm then analyses the oscillation waveform to calculate systolic, diastolic, mean arterial pressure, and pulse rate. Data is sent back to the mainboard via serial communication for real-time display

► Specification

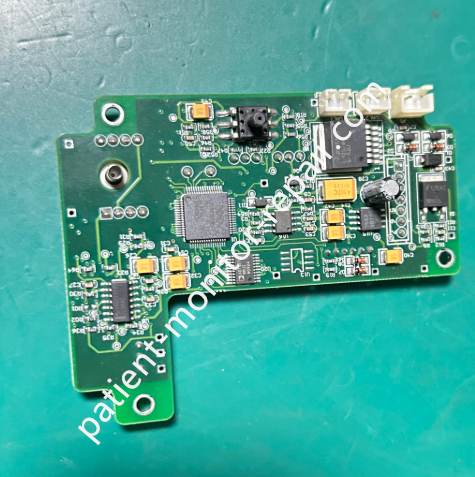

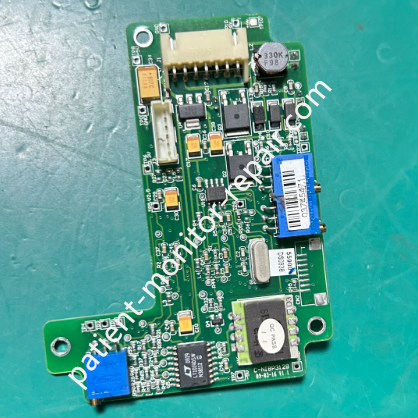

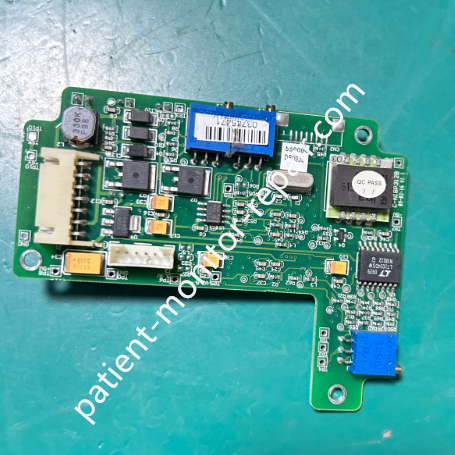

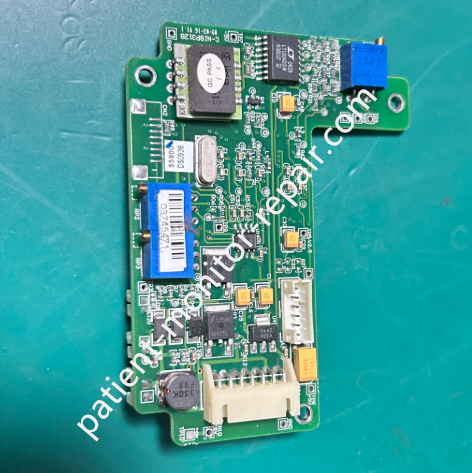

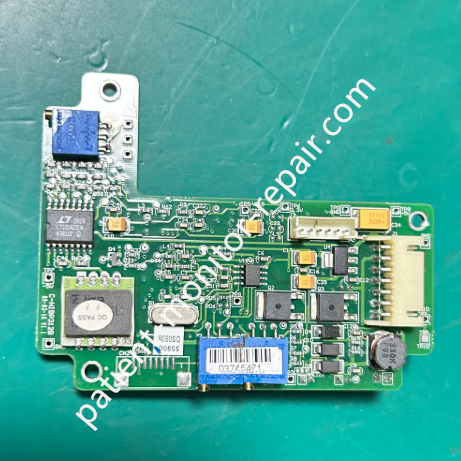

► Detailed Photos

Tags： Philips Goldway UT7000C； Philips NIBP Board C-NIBP312B；Patient Monitor NIBP Board,
