Philips Goldway UT7000C Patient Monitor Network Card USB

Interface Board Wiring

► Product Overview

The M-4B2C02B is the original, dedicated communications interface board for the Philips Goldway UT7000C multi‑parameter patient monitor. It serves as the central hub for all data exchange between the monitor and external systems – handling both network connectivity and peripheral device connections.

This board sits between the main control board and the external ports, linking the monitor to central monitoring stations, hospital information systems, and external storage or printing devices. It's built exclusively for the UT7000C series and is not compatible with any other UT series monitors. The board is manufactured with medical grade multi layer PCB and gold plated circuitry, incorporating protection circuits against overcurrent, overvoltage, and electrostatic discharge.

► Specification

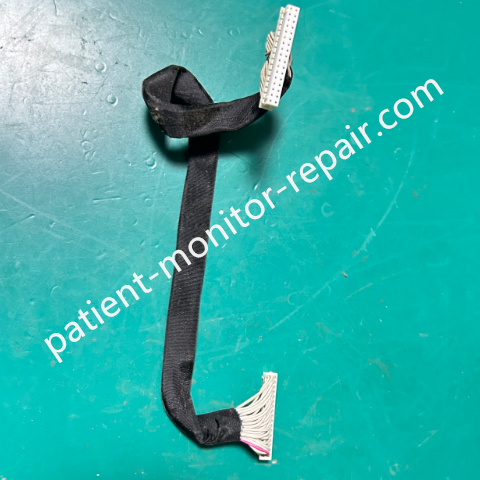

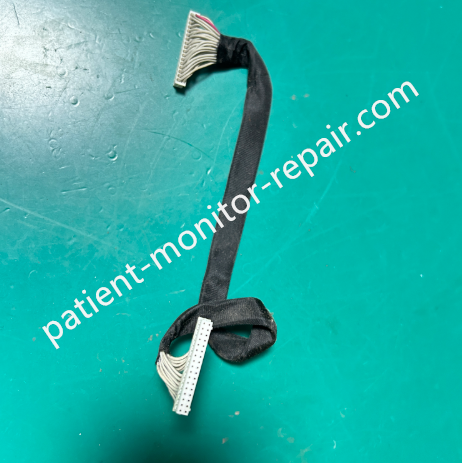

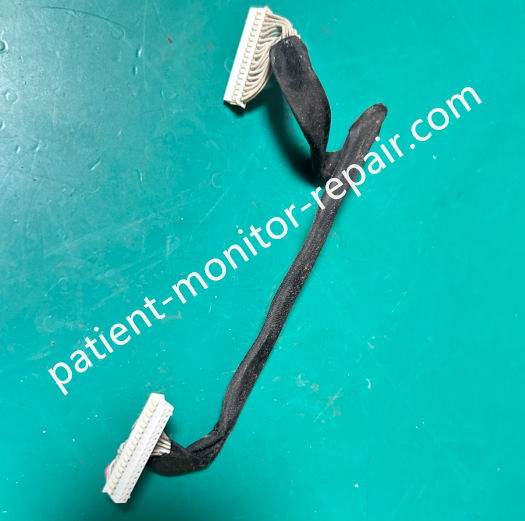

► Detailed Photos

Tags： Philips Goldway UT7000C ；Patient Monitor Wiring ；Philips Interface Board Wiring,
