Philips Goldway UT7000C Patient Monitor NIBP Board To Parameter Board Wiring
Announcer: PMR Med Release Time：2026-09-16
Philips UT7000C Wiring
Philips Goldway UT7000C Patient Monitor NIBP Board To Parameter Board Wiring
► Product Overview
The NIBP board to parameter board wiring is an internal multi-core shielded ribbon cable purpose-built for the Philips Goldway UT7000C patient monitor. It serves as the dedicated communication and power link between the monitor's NIBP (non-invasive blood pressure) module (C-NIBP312B) and the main parameter board (M-4B3S01A).
The parameter board delivers stable operating power to the NIBP module through this cable, supplying the voltage needed to run the pressure sensor, pump, solenoid valves, and signal processing circuits.
► Specification
Compatible Device | Philips Goldway UT7000C patient monitor |
Cable Type | Multi-core shielded ribbon cable |
Connector Type | Polarized / keyed connectors with snap-lock latches |
Connector Design | |
Internal Wiring Groups | Power supply circuit, differential communication signal lines, fault detection loop, and shielded ground |
Shielding | Aluminum foil shield layer |

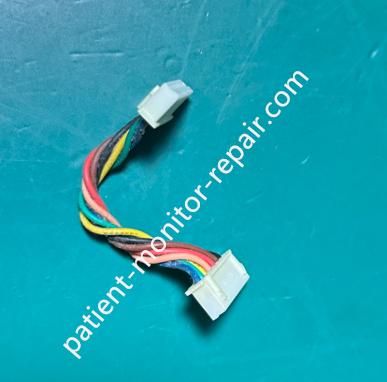

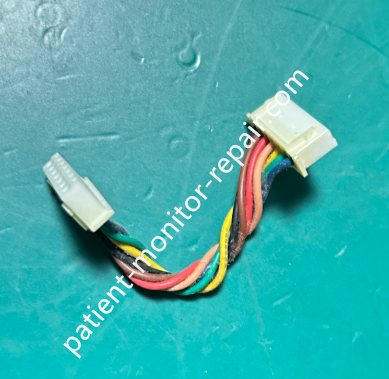

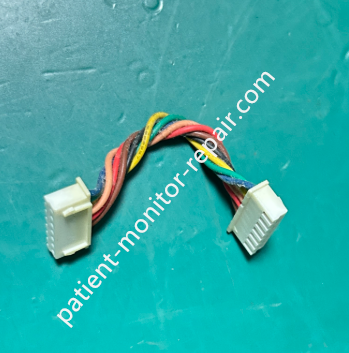

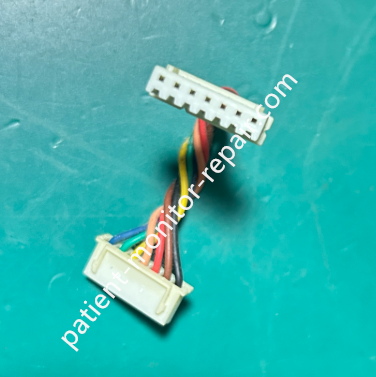

► Detailed Photos
Tags： Philips Goldway UT7000C, Board Wiring, Patient Monitor Wiring,
