Philips MP70 Patient Monitor Mainboard Circuit Board M8050-66421
Announcer: PMR Med Release Time：2026-05-08
Philips MP70 Mainboard
Philips MP70 Patient Monitor Mainboard Circuit Board M8050-66421
► Product Overview
This product is original mainboard assembly (Part Number: M8050-66421) specifically designed for the MP70 series patient monitor. The board features a high-density multi-layer PCB protected by optional metal shielding to guard against electromagnetic interference. Manufactured to OEM specifications.
This board serves as the central processing and control unit of the patient monitor, integrating the CPU, memory modules, display driving circuitry, and all critical system interfaces into a single compact assembly. It operates at 100MHz with 8MB Flash memory and 2MB SRAM, delivering sufficient processing throughput for real-time vital signs data acquisition, waveform rendering, alarm detection, and system resource coordination.
► Specification
Product Type | Mainboard |
Board PN | M8050-66421 |
Material | FR4 PCB, Electronic Components |
Quality | Medical Grade, OEM Specification |
Function | Central system control, |
Warranty | 90 days |

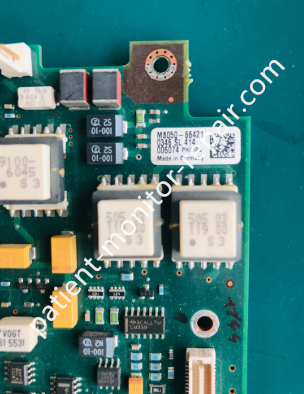

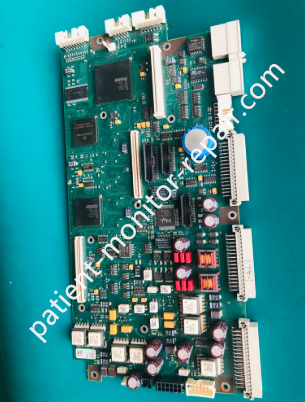

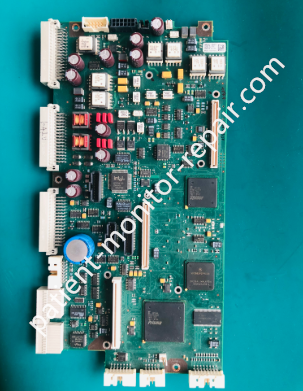

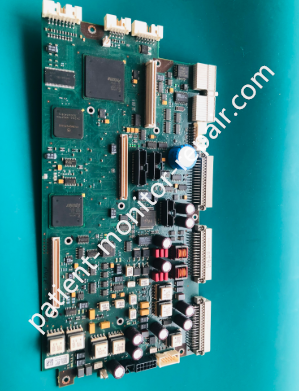

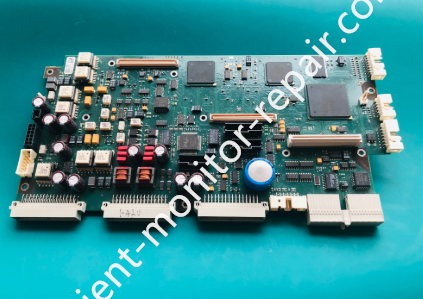

► Detailed Photos
Tags： Philips MP70 Patient Monitor, MP70 Mainboard, Circuit Board M8050-66421,
