Philips Goldway UT4000A Patient Monitor Spo2 Board M1020-26414

Philips UT4000A Board

Philips Goldway UT4000A Patient Monitor Spo2 Board M1020-26414

► Product Overview

This product is an original SpO₂ (blood oxygen saturation) board assembly (part number: M1020-26414), specifically designed for the Philips UT4000A series patient monitors. As a dedicated pulse oximetry processing unit, this board assembly is responsible for acquiring the raw optical signal from an external SpO₂ sensor and converting it into accurate real-time blood oxygen saturation and pulse rate measurements using a built-in motion-tolerant signal processing algorithm.

The assembly utilizes a compact multi-layer PCB and is encapsulated in a rugged, durable medical-grade protective housing, capable of withstanding the harsh environments of continuous clinical use. It seamlessly connects to the monitor's mainboard via a keyed multi-pin connector, ensuring reliable data transmission and simplified modular replacement.

► Specification

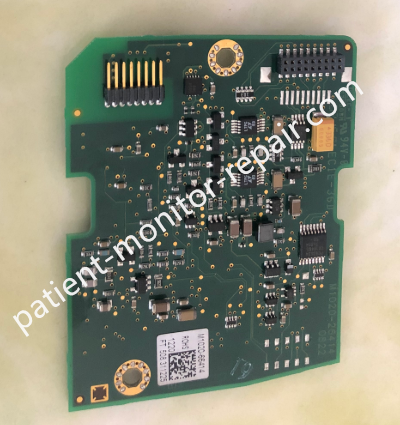

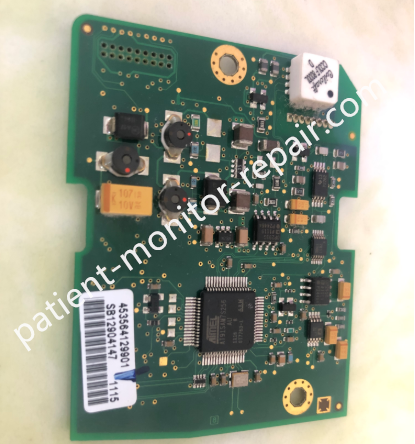

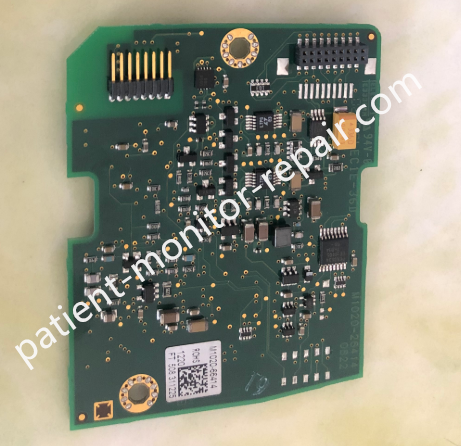

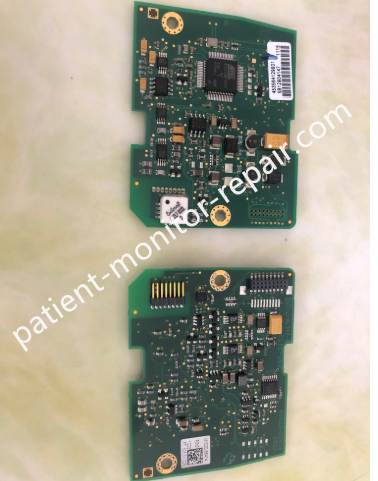

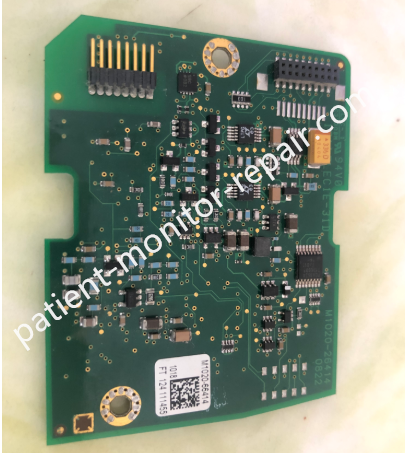

► Detailed Photos

Tags： Goldway UT4000A, Philips Patient Monitor, Spo2 Board,
