2.5CM Width 30-Pin Flat Flexible Cable (FFC) For Philips TC10 ECG Machine Display Board

30-Pin Flat Flexible Cable (FFC)

2.5CM Width 30-Pin Flat Flexible Cable (FFC) For Philips TC10 ECG Machine Display Board

► Product Overview

This is a high-precision Flat Flexible Cable (FFC) specifically designed for the Philips Intellivue TC10 Patient Monitor. As shown in the images, this 2.5cm wide ribbon cable serves as the critical link between the main control board and the display screen. It is engineered to transmit high-frequency video and data signals with minimal loss, ensuring the ECG waveforms and vital signs are displayed clearly and in real-time. The cable features gold-plated contacts for superior conductivity and a reinforced flat structure to withstand the repeated folding and movement typical inside medical electronics. This replacement part is essential for repairing "No Display," "Flickering Screen," or "Signal Loss" issues on the TC10 device.

Installation & Usage Tips:

Power Off:

Always disconnect the power source and remove the battery before opening the device.

Handle with Care:

Do not bend the cable sharply at a 90-degree angle; follow the original routing path.

Connection:

Gently lift the black latch on the ZIF connector, insert the cable fully, and lock the latch.

Testing:

Power on the machine to verify the screen displays correctly before reassembling the casing.

► Specification

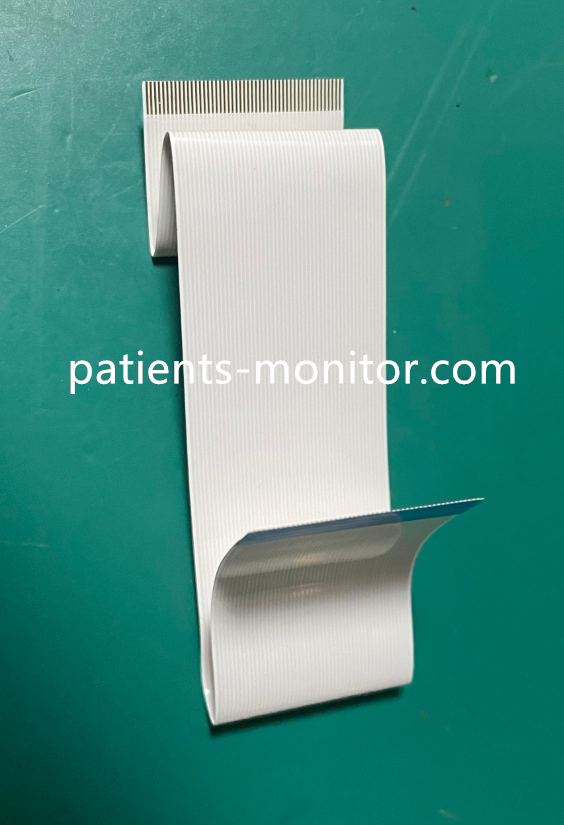

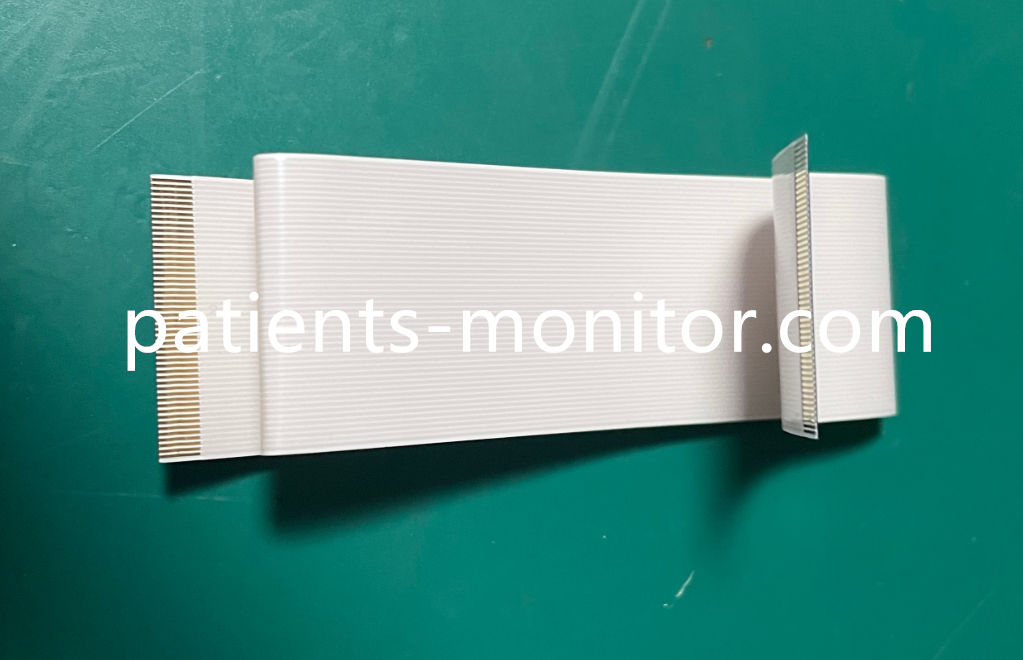

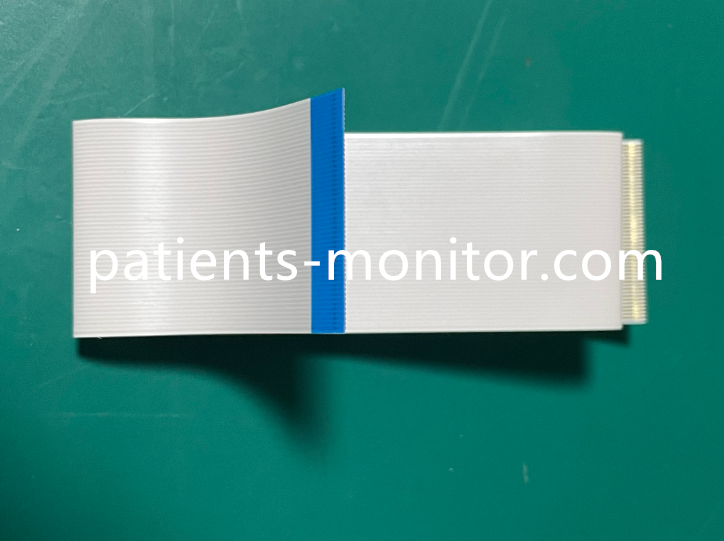

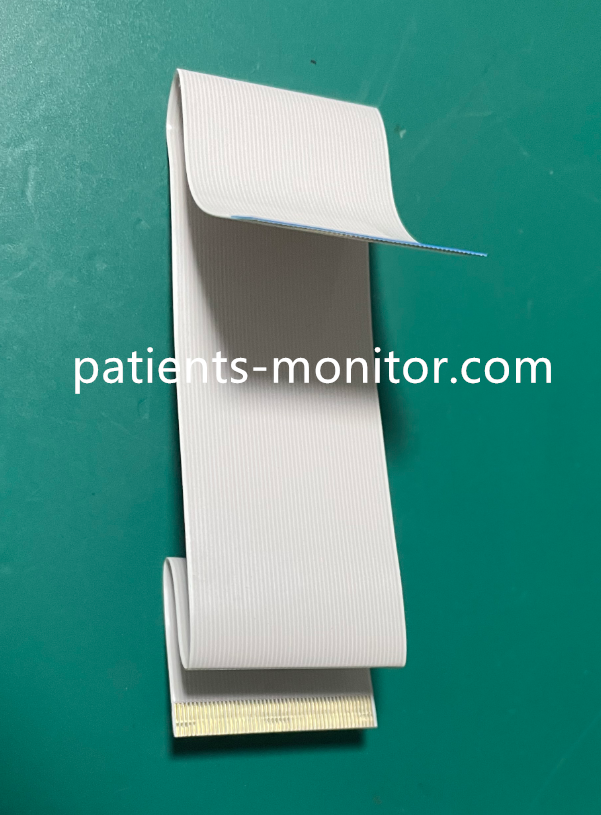

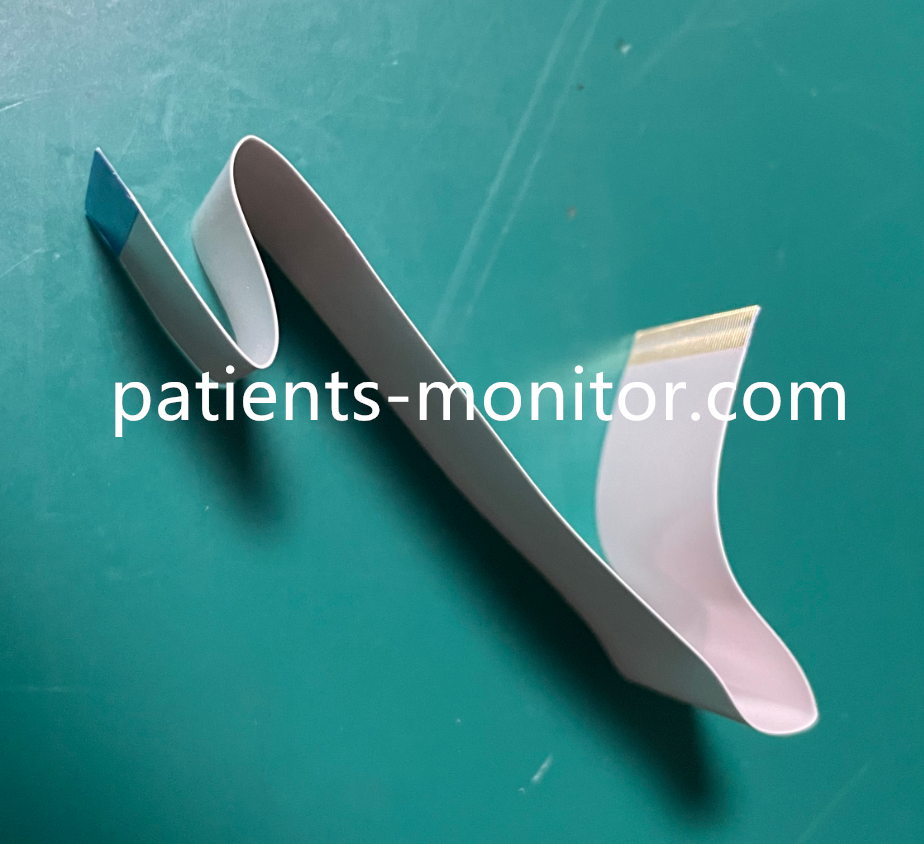

► Detailed Photos

Tags： Philips TC10 ECG Monitor, Display Ribbon Cable, 2.5CM Flat Flexible Cable,
