M3001-66422 M3001-66424 M3001-66458 M3001-2642 Parameter Board ECG SpO2 NIBP Main Board Assembly

Philips X2 Patient Monitor

M3001-66422 M3001-66424 M3001-66458 M3001-2642 Parameter Board ECG SpO2 NIBP Main Board Assembly

► Brief Description

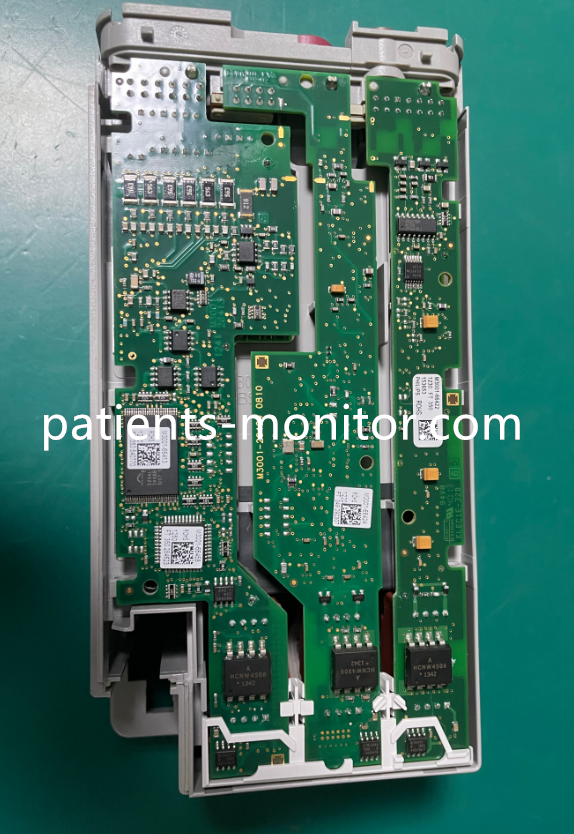

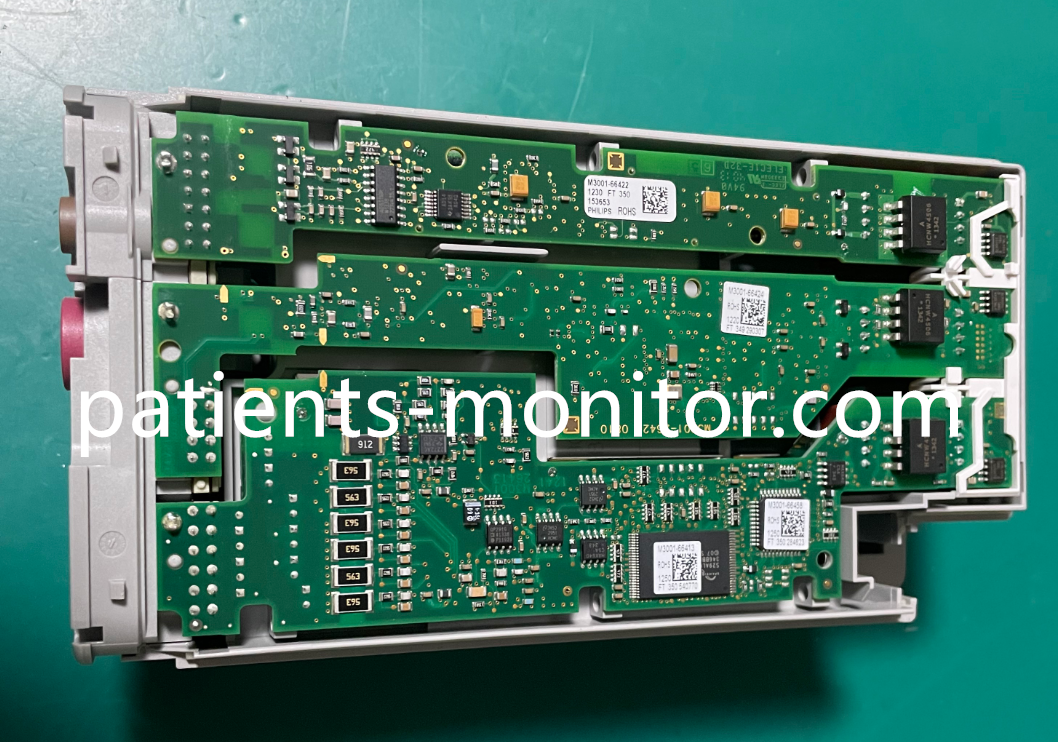

This is a genuine Philips X2 Patient Monitor Parameter Board Assembly, featuring core modules including M3001-66422, M3001-66424, M3001-66458, and M3001-2642. This assembly is responsible for processing critical vital signs such as ECG, SpO2, and NIBP. The circuit board utilizes a green PCB base populated with precision integrated circuits, SMD capacitors, resistors, and multi-layer connectors. As seen in the images, the assembly is compact, with complex routing connecting various sub-modules to ensure signal transmission stability and accuracy. It serves as the "brain" of the monitor and is a core component for patient safety monitoring, widely used in ICUs, operating rooms, and emergency departments.

► Specification

► Installation

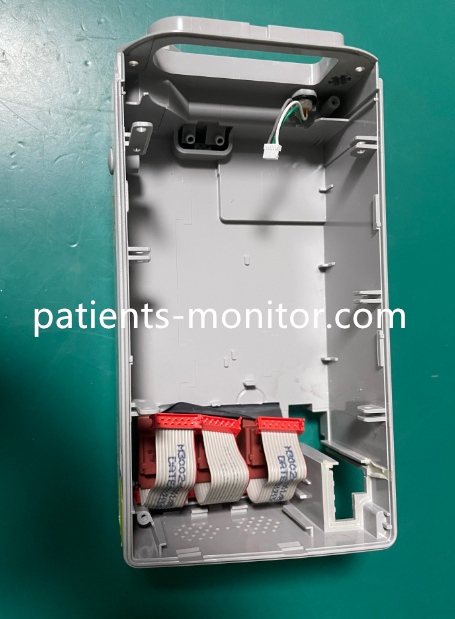

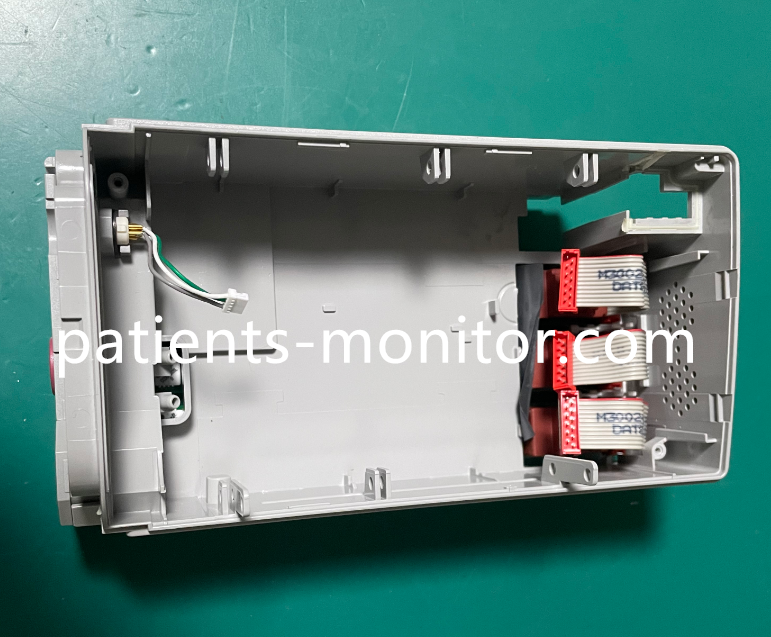

This parameter board is typically located inside the rear housing of the Philips X2 monitor. To install, open the device's back cover, locate the corresponding main board slot, align the assembly's interface with the slot, and push it in smoothly until the latch locks. After installation, reinstall the back cover and power on to test if all vital sign monitoring functions are normal.

► Detailed Photos

Tags： Philips X2 Parameter Board Assembly, ECG SpO2 Main Board, M3001-66458 NIBP Module, Philips X2 Vital Signs,
