Philips IntelliVue X3 Patient Monitor Blood Pressure Board 453564521621 453564521631

Philips X3 Blood Pressure Board

Philips IntelliVue X3 Patient Monitor Blood Pressure Board 453564521621 453564521631

► Product Overview

This blood pressure board is used with the Philips IntelliVue X3 monitor. It is built using a green, high-density printed circuit board (PCB), integrating a high-precision pressure sensing and processing chip, a pneumatic control drive circuit, and a foolproof interface module, with a compact layout and robust protection. As the control and signal heart of the NBP measurement function, it is responsible for accurately acquiring cuff pressure signals, driving the pneumatic pump valve to complete the inflation and deflation process, and calculating and generating reliable blood pressure values.

► Specification

► Main Functions

1.The core receives weak analog signals from the blood pressure cuff pressure sensor. Through built-in amplification circuitry and multi-stage filtering modules, it effectively filters environmental noise and interference, converting the signal into accurate digital pressure data, providing a reliable basis for blood pressure calculation.

2. Based on pressure change curves and oscillating wave analysis algorithms, it automatically calculates and outputs key blood pressure parameters such as systolic pressure, diastolic pressure, and mean arterial pressure, ensuring the accuracy and consistency of measurement results.

3. The calculated blood pressure data is transmitted to the monitor's mainboard in real time, synchronously driving the display screen to show the values and measurement status. It also supports data storage, alarm linkage, and other functions, ensuring the continuity of clinical monitoring.

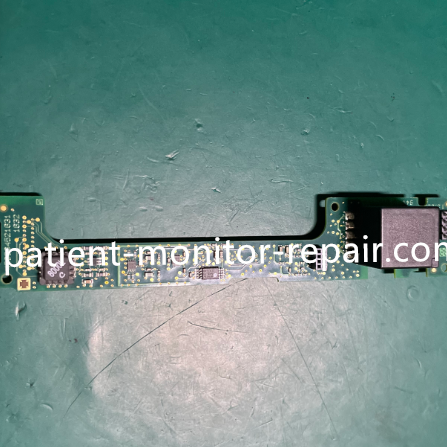

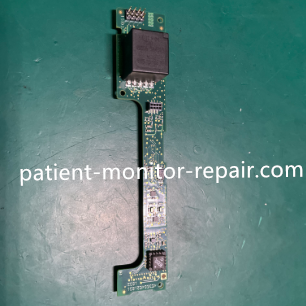

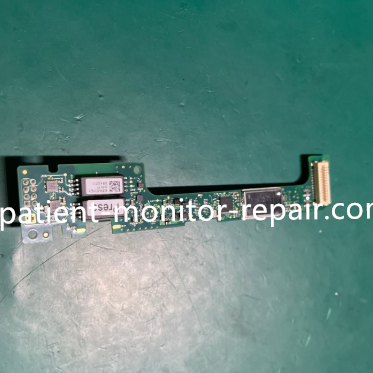

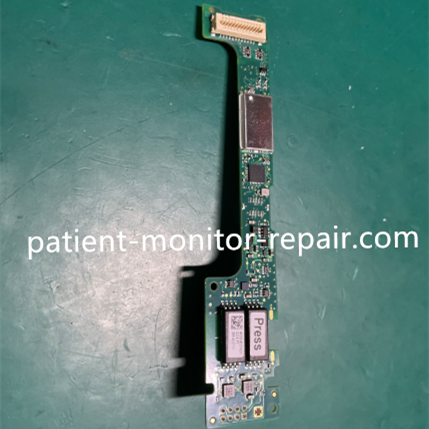

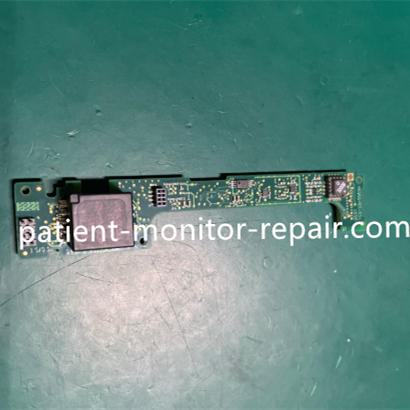

► Detailed Photos

Tags： X3 Patient Monitor, Philips IntelliVue, Blood Pressure Board,
