Philips IntelliVue X3 Patient Monitor Bottom Shell 453564541861 Housing Component

Philips X3 Bottom Shell

Philips IntelliVue X3 Patient Monitor Bottom Shell 453564541861 Housing Component

► Product Overview

This bottom casing is an original component of the Philips IntelliVue X3 monitor, made of white medical-grade high-strength flame-retardant engineering plastic through a single injection molding process. Structurally, its internal components include precise slots and clips for mounting the motherboard, battery, and modules, while the external components integrate air and power interfaces. The edges are thickened and rounded to ensure structural strength and prevent scratches during handling. As the bottom protective and support frame of the device, it directly protects the monitor's core internal components.

► Specification

► Main Functions

1. Physical Protection and Dust Prevention: The sealed bottom of the device prevents dust, liquids, and foreign objects from entering, protecting core components from contamination and corrosion in the clinical environment. The bottom features an anti-slip structure.

2. Structural Support and Fixation: Internal clips, screw holes, and positioning posts secure critical components such as the motherboard, battery compartment, and pneumatic module, maintaining the stability of the internal structure and preventing malfunctions caused by component displacement.

3. Heat Dissipation and Ventilation Assistance: Ventilation holes and heat dissipation fins at the bottom, working in conjunction with the internal cooling system, help dissipate heat from components such as the motherboard and power module, preventing performance degradation or component damage due to overheating.

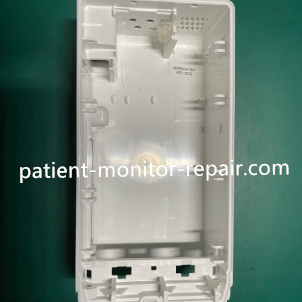

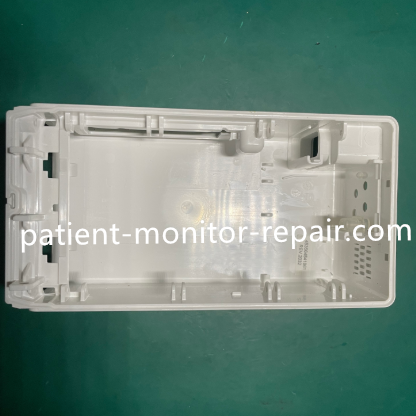

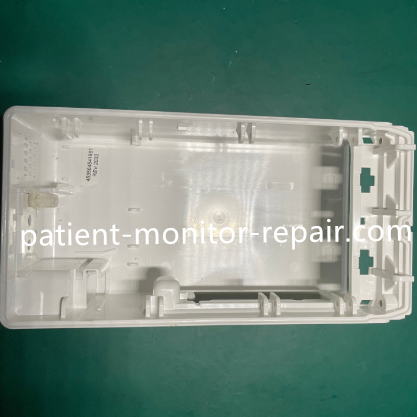

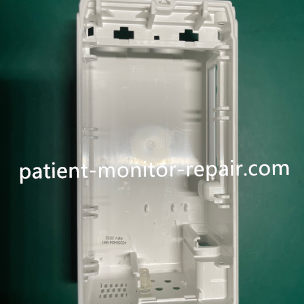

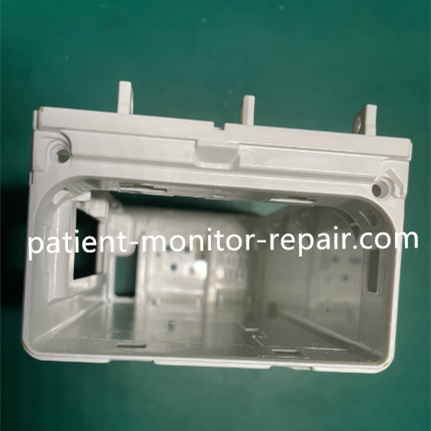

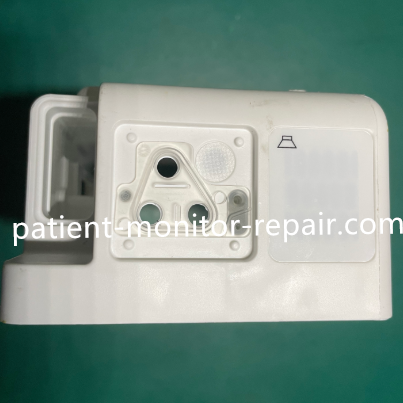

► Detailed Photos

Tags： X3 Patient Monitor, Philips IntelliVue, Bottom Shell Housing Component,
