Philips IntelliVue X3 Patient Monitor Battery Compartment Assembly 453564521791

Philips X3 Battery Compartment

Philips IntelliVue X3 Patient Monitor Battery Compartment Assembly 453564521791

► Product Overview

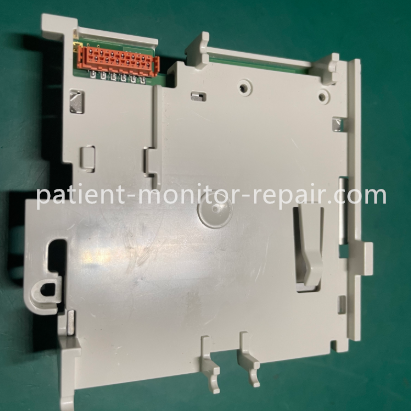

This battery compartment assembly, PN 453564521791, balances structural strength with electrical safety. The outer casing is made of light gray medical-grade flame-retardant engineering plastic, injection molded in one piece with a smooth surface and multiple clips and positioning holes along the edges for precise docking with the monitor body. A row of orange multi-pin connectors is integrated on the right side for electrical connection and data communication with the device's motherboard. The push-button locking mechanism on the left is crucial for securing the battery. The internal module contains a circuit board covered by a metal shield. The shield not only effectively blocks electromagnetic interference but also aids in heat dissipation, protecting the internal power management chip and detection circuitry.

► Specification

► Main Functions

1.Provides a standardized battery installation space, using internal positioning slots and locking mechanisms to firmly secure the battery within the compartment, preventing it from loosening or falling out during device movement or vibration, ensuring continuous power supply.

2.Precisely connects to the battery electrodes via gold-plated metal contacts, stably transmitting battery power to the device's mainboard. It also supports charging circuit continuity, allowing the device to efficiently charge the battery when connected to power, meeting the need for continuous monitoring after power outages.

3. As part of the main body, it encloses the battery installation area, preventing dust and liquid intrusion, while also distributing the device's weight, helping to maintain structural stability and reducing the risk of deformation of the battery compartment under stress.

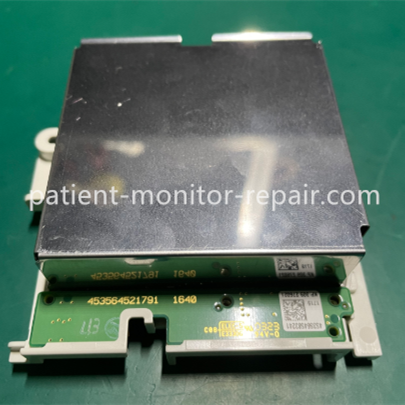

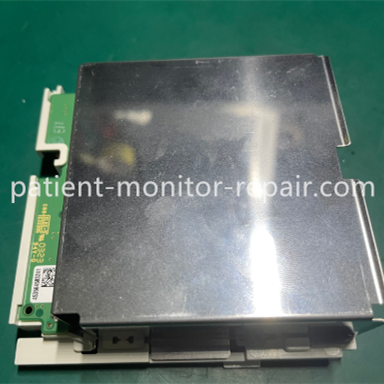

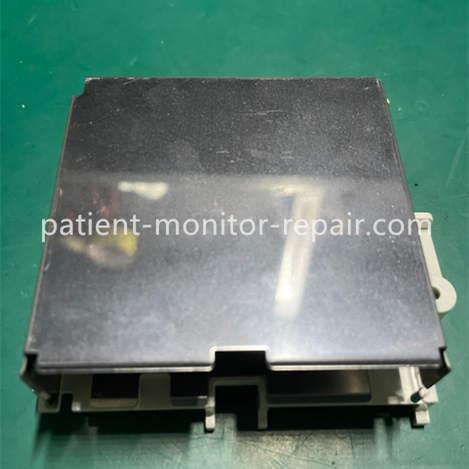

► Detailed Photos

Tags： X3 Patient Monitor, Philips IntelliVue, Battery Compartment Assembly,
