Philips IntelliVue X3 Patient Monitor MSL Board 453564532071 For Equipment Core Circuit Control

Philips X3 Monitor MSL Board

Philips IntelliVue X3 Patient Monitor MSL Board 453564532071 For Equipment Core Circuit Control

► Brief Description

This product is a multi-parameter signal acquisition and processing board specifically designed  part number 453564532071.

Commonly referred to as the core of the Multi-measurement Module (MSL), it integrates a high-precision analog front-end,

a dedicated processor, and multiple physiological parameter conditioning circuits. Its core function is to amplify, and

 preliminarily process different physiological signals from the patient's body, such as ECG, RESP, NBP, and temperature.

Through sophisticated filtering and digitization techniques, the board converts these weak bioelectrical and physical signals into

stable, clean raw data, which is then uploaded to the monitor's main processing system for in-depth analysis and display. Acting

as the sensory center of the Philips X3 Patient Monitor , it  directly determines the fundamental data quality and system reliability

of multi-parameter monitoring.

► Specification

► Main functions

• It receives raw physiological signals from various parameter modules (ECG, blood oxygen, NIBP, body temperature, CO₂, etc.).

• Through an internal chip, it performs amplification, filtering, and analog-to-digital conversion, filtering out environmental

  electromagnetic interference to ensure signal purity and accuracy, providing a reliable foundation for subsequent data

  analysis.

• The processed physiological signals are uploaded to the mainboard for display, storage, and alarm functions. It also receives

  control commands from the mainboard to coordinate the operation of each module, ensuring synchronized and orderly

  monitoring of multiple parameters.

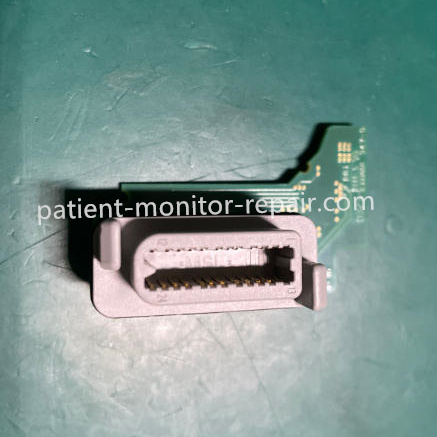

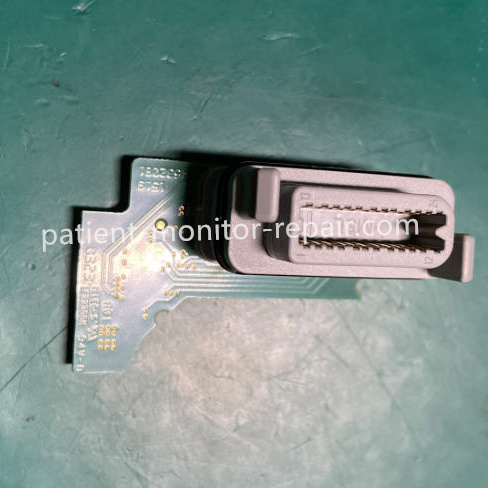

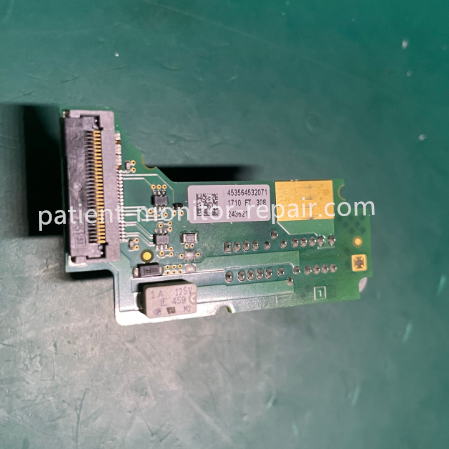

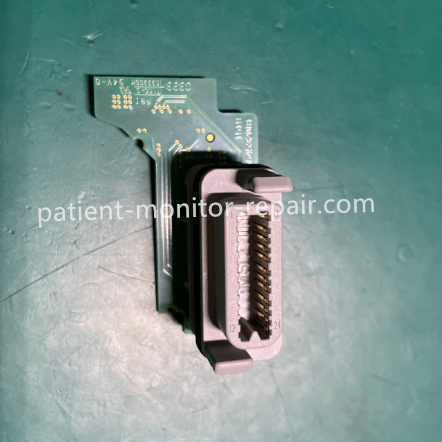

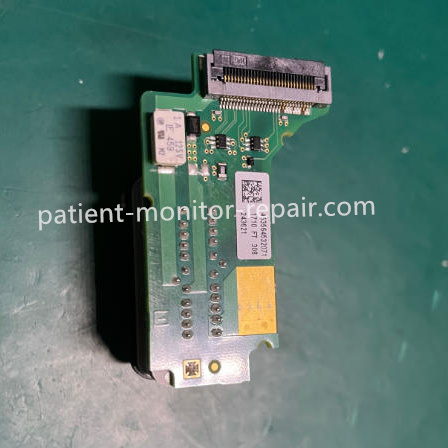

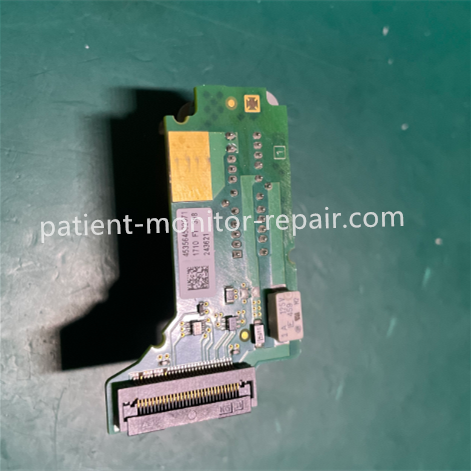

► Detailed Photos
