Philips X3 Monitor Parameter Panel Interface Components Include Blood Oxygen ECG NBP Temperature

Parameter Panel Interface Components

Philips X3 Monitor Parameter Panel Interface Components Include Blood Oxygen ECG NBP Temperature

► Brief Description

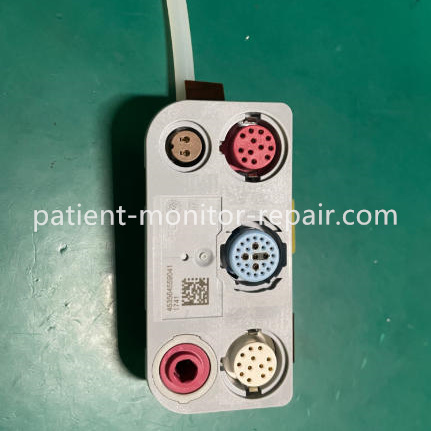

• This parameter panel interface component is a core original component of the Philips IntelliVue X3 monitor. The interfaces are arranged functionally, integrating four major clinical monitoring interfaces: SpO₂ (blood oxygen saturation), ECG (electrocardiogram), NIBP (non-invasive blood pressure), and Temp (body temperature). It serves as a crucial bridge connecting the patient's vital signs acquisition module to the main unit. Aesthetically, it is made of light gray medical-grade flame-retardant engineering plastic in a single piece, with a matte, scratch-resistant surface and rounded corners for added protection.




► Specification

► Right Side View

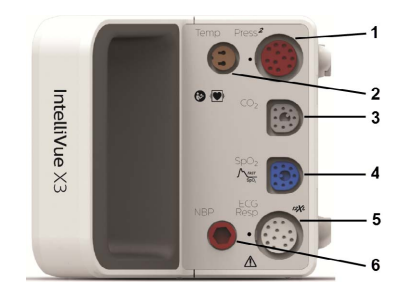

1. Pressure (option) - one or two pressure lines can be connected

2. Temperature (option, together with pressure)

3. CO2 (option) or alternatively a second SpO2

4. SpO2 (various options, see below)

5. ECG/Respiration

6. Noninvasive blood pressure

► Main Functions

• Multi-parameter signal input: Serving as the physical connection port between the patient and the device, it receives raw

  physiological signals from ECG, blood oxygen, body temperature, and non-invasive blood pressure, forming the first step in

  clinical monitoring.

• Physical error prevention and safety protection: The interface is designed with color, pin, and shape differences to prevent

  incorrect lead insertion and ensure monitoring safety.

• Signal and gas path transmission: The ECG, blood oxygen, and body temperature interfaces transmit electrical signals,

  while the non-invasive blood pressure interface controls gas path access, simultaneously supporting data acquisition and

  pressure control.

• Status feedback and fault indication: Working with the host, it detects interface connections. When a lead becomes detached

  or the interface malfunctions, it triggers an alarm, facilitating rapid troubleshooting.
