Philips X3 Patient Monitor Temperature Board 453564542211 For Medical Equipment Replacement

Philips X3 Temperature Board

Philips X3 Patient Monitor Temperature Board 453564542211 For Medical Equipment Replacement

► Brief Description

The body temperature board (part number: 453564542211) for the Philips X3 Monitor. This board features a highly integrated PCB design, incorporating a high-precision analog front-end circuit, an analog-to-digital converter, and a temperature signal processing chip. Its main function is to receive and process weak electrical signals from surface or intracavitary temperature probes, accurately converting the analog signals into digital body temperature values using a professional temperature measurement algorithm. The board design prioritizes low noise and interference immunity, ensuring stable operation even in complex medical electromagnetic environments, providing continuous and accurate body temperature monitoring data for the monitor.

► Specification

► Making a Temp Measurement

1. Select the probe type and size that is suitable for the patient.

2. If using a disposable probe, connect it to the temperature cable.

3. Plug the probe or temperature cable into the temperature connector socket.

4. Apply the probe to the patient. It is recommended to use a protective rubber cover on rectal probes.

5. Select an appropriate temperature label.

6. Check that the alarm settings (including whether it is on or off, and the high and low limits) are appropriate for the patient and the type of temperature measurement being performed.

 ► Main Functions

•Medical-grade Precision Monitoring: Employs high-precision medical-grade sensor chips and anti-interference circuits, controlling body temperature measurement error within ±0.1℃, meeting core standards for clinical precision monitoring.

• Data Transmission and Alarms: Transmits processed, precise body temperature data to the monitor's mainboard in real time, simultaneously supporting numerical display on the screen and automatic alarm functions for abnormal conditions such as over-temperature and under-temperature.

• Multi-mode Body Temperature Monitoring: Supports single-channel or dual-channel body temperature monitoring, adaptable to different clinical monitoring needs such as surface and core body temperatures, meeting diverse usage scenarios.

• Safety and Compliance: Strictly complies with medical electrical equipment safety standards, with built-in overcurrent and anti-static protection in the circuitry, comprehensively ensuring clinical safety.

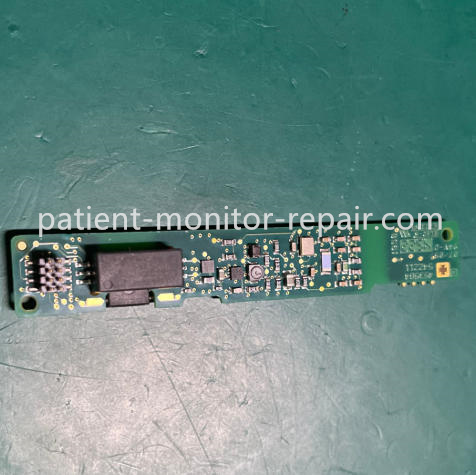

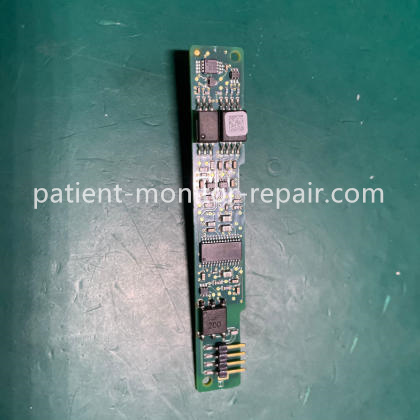

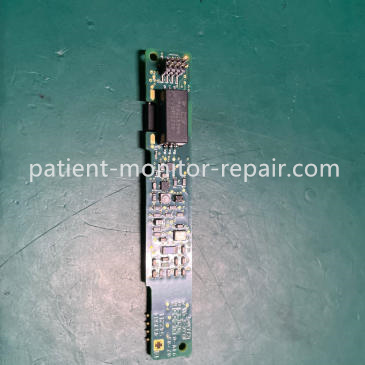

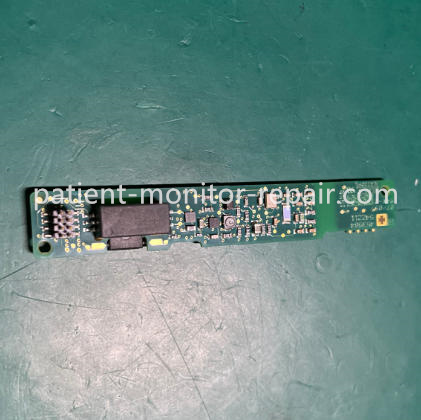

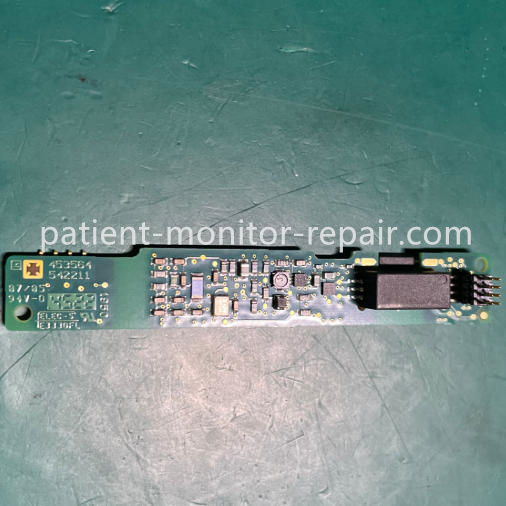

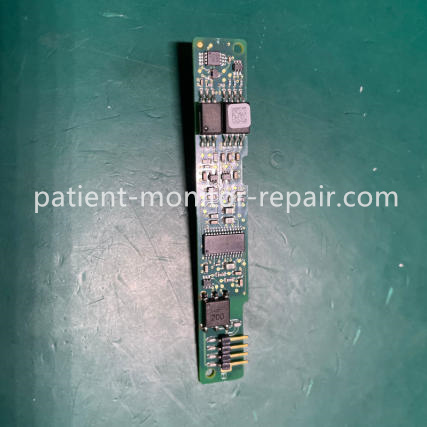

► Detailed Photos
