Philips M3012A Original Used Dual Link Bar Assembly Bracket For CO IBP Module

Philips M3012A Dual Link Bar

Philips M3012A  Original Used Dual Link Bar Assembly Bracket For CO IBP Module

► Brief Description

The Philips M3012A Dual Connecting Rod Assembly is a mechanical component within the Philips M3012A Measurement Server Expansion Module (MMS Expansion Module), serving as a mechanical support and guide rail system.

Function:

 The dual connecting rods connect the front and rear panels of the module, forming its rigid frame structure. When the module is inserted into the display host, it also functions as part of the slide rail and locking mechanism.

 The assembly consists of three gray injection-molded plastic parts. A larger L-shaped part forms the main frame, while the two smaller parts are the central connecting rods used to secure the circuit board.

► Specification

► Important Notes

1. This product is a mechanical component (casing/frame/stand) and does not include the internal electronic circuit board.

2. Before ordering, please check the screw hole positions and shapes of your old equipment to confirm compatibility.

3. Handle the plastic parts carefully during installation to avoid damage.

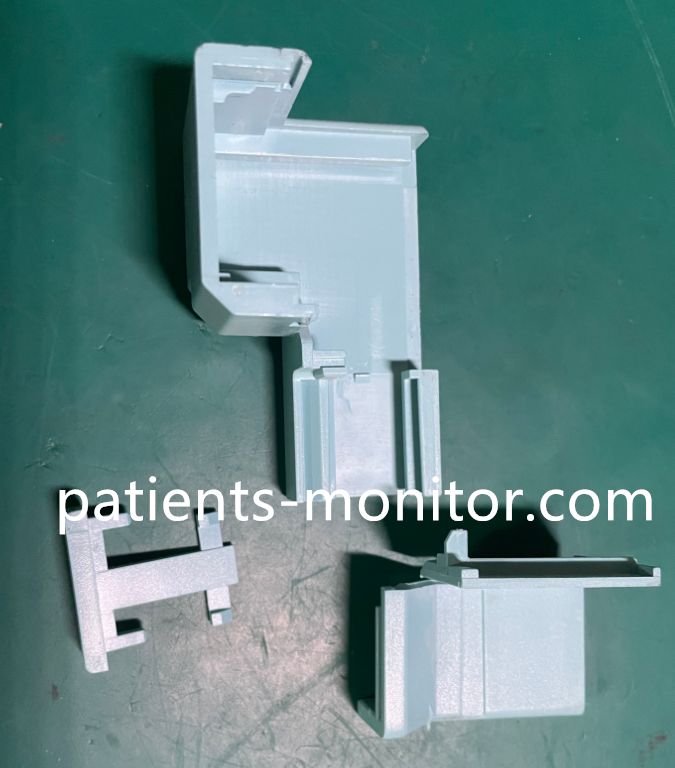

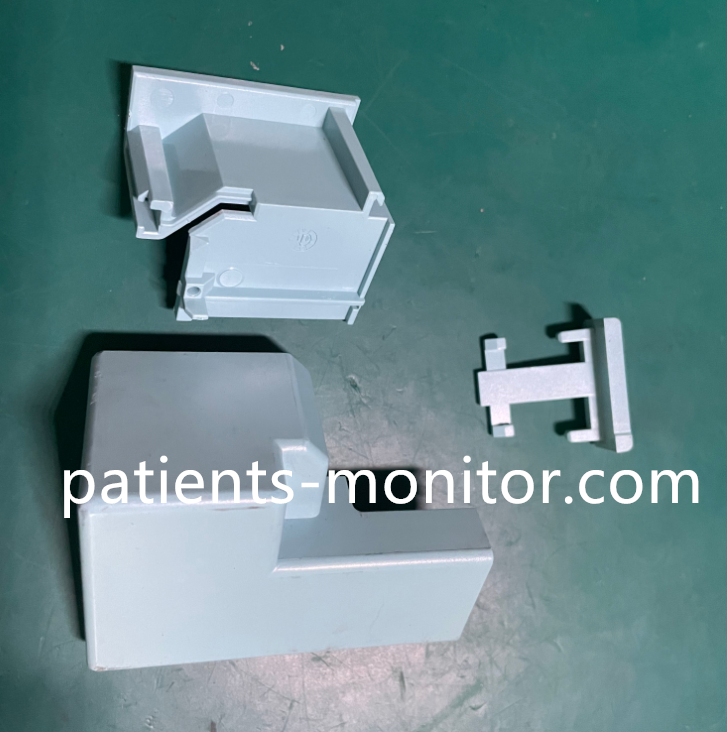

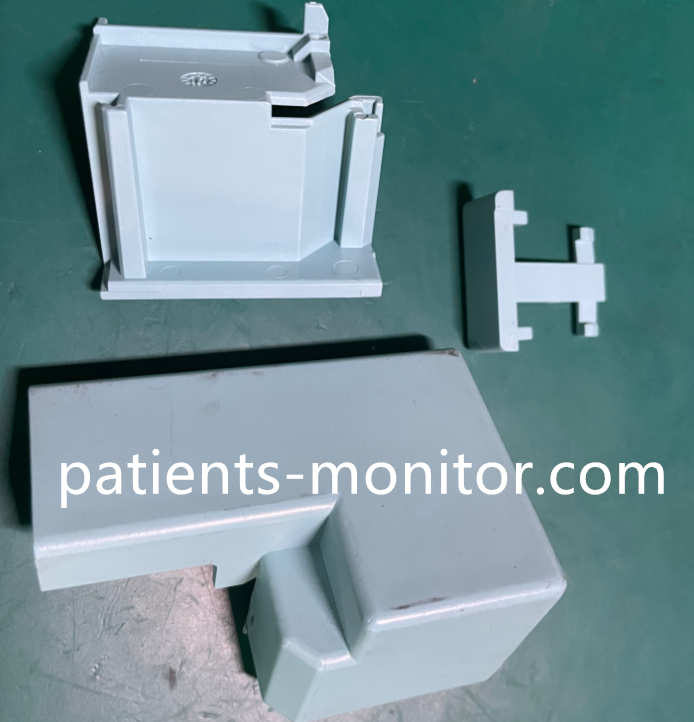

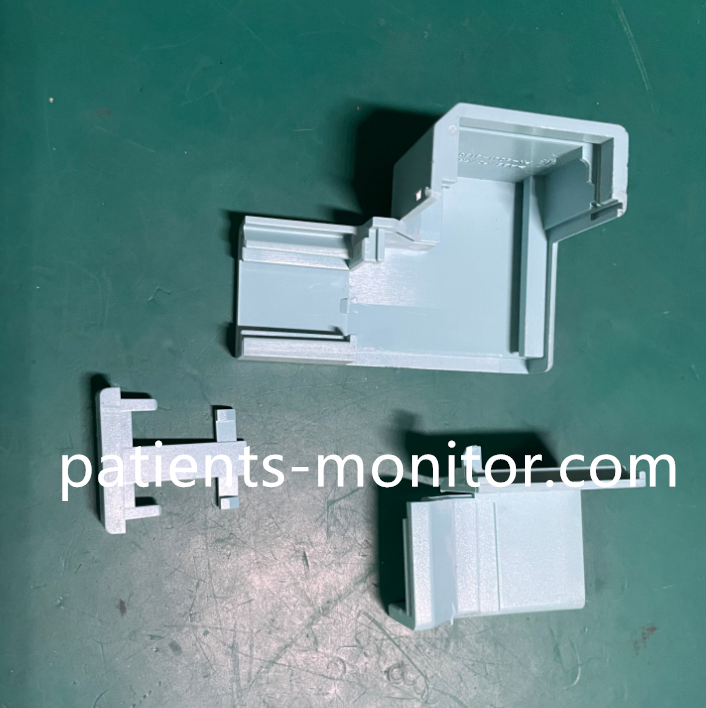

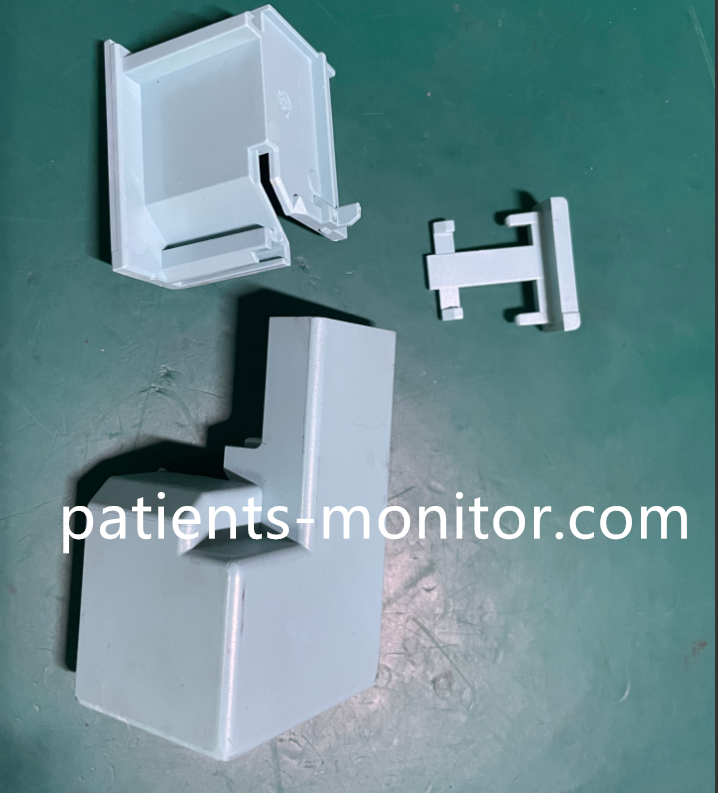

► Detailed Photos
