M3012-66410 Philips M3012A Main Board Module Assembly For Patient Monitor

Philips M3012A Main Board

M3012-66410 Philips M3012A Main Board Module Assembly For Patient Monitor

► Brief Description

This is the Philips M3012A Multi-Parameter Measurement Server Expansion Module motherboard (part number M3012-66410). It is a core electronic component designed specifically for the Philips IntelliVue patient monitoring system. It is a high-density, green printed circuit board (PCB) integrating multiple integrated circuit chips, connectors, and robust interface connectors for connection to the host unit.

Interface (left gray section): This is the physical interface for connecting to the monitor host. It contains contacts for power, data communication, and external sensor cable connections.

Multi-layer board design: This circuit board employs a multi-layer structure with a hollow center. This design meets the module's internal space layout and thermal management requirements.

Flat cable interface (right red section): Connects to the onboard red connector, serving as the interface for the indicator light panel on the module's front panel.

► Specification

► Function

Invasive Blood Pressure (IBP): This board integrates a high-precision analog-to-digital converter (ADC) and signal processor to process the analog signal from the pressure sensor.

Cardiac Output (CO): The core function of the M3012A. This mainboard integrates a dedicated thermal dilution calculation circuit and algorithm processor to analyze the temperature change curve after saline injection, thereby calculating cardiac output.

Temp: Processes the catheter temperature probe used to measure cardiac output, as well as potential skin surface temperature signals.

Note: This is a highly integrated electronic component. If used for repair, electrostatic discharge (ESD) protection measures must be taken, as damage to this delicate chip typically requires replacement of the entire board.

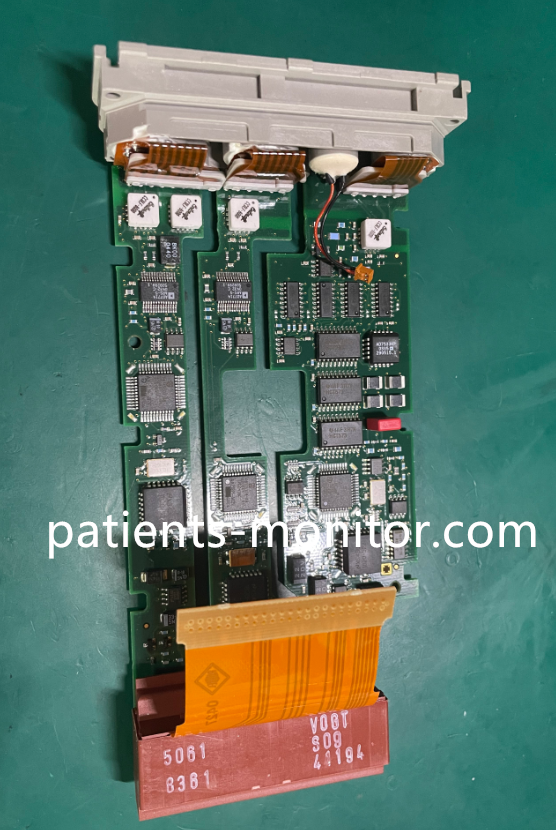

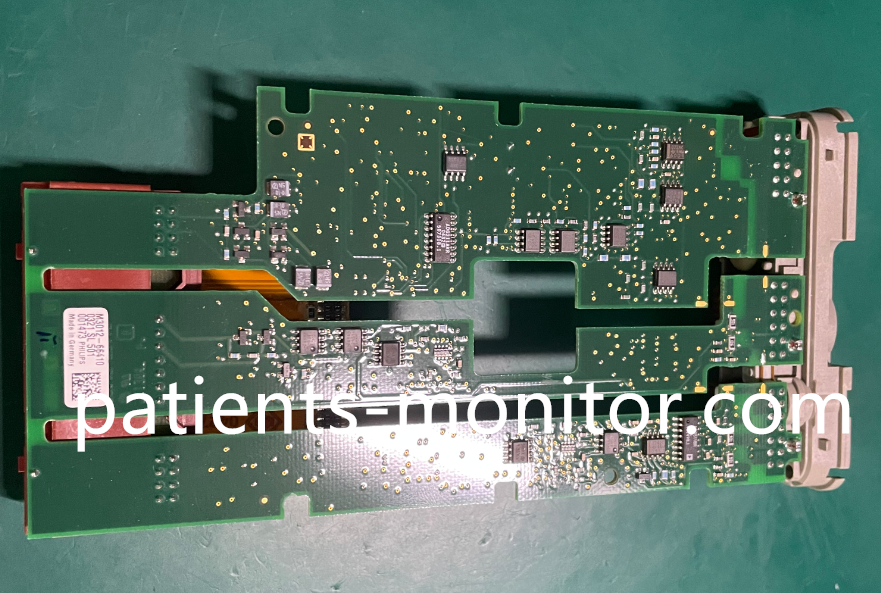

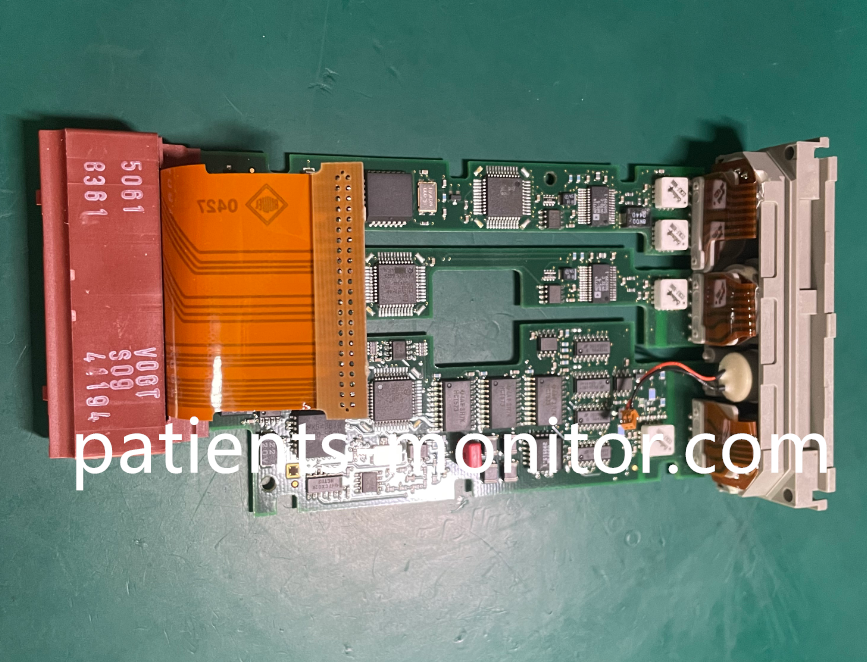

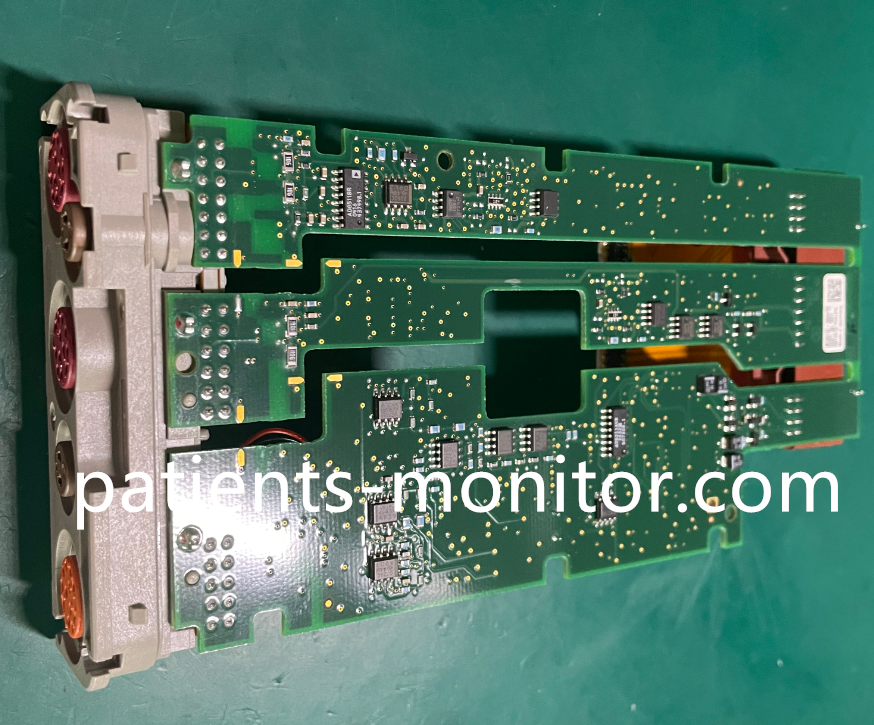

► Detailed Photos

Tags： Philips M3012A blood pressure, CO temperature module, Philips M3012A Main Board,
