Philips M3014A Double Link Bar Upper Left Cover Chassis Assembly for IntelliVue MP20 MP30 MMS

Philips M3014A Double Link Bar Upper Left

Philips M3014A Double Link Bar Upper Left Cover Chassis Assembly for IntelliVue MP20 MP30 MMS

► Brief Description

This is the original mounting frame for the Philips M3014A and other MMS expansion module series. It forms the structural foundation of the module and is made of high-strength white ABS plastic, ensuring durability and dimensional accuracy. Its unique L-shaped bend design and multiple snap-fit edges are specifically designed for secure mounting on the MMS rails of monitors such as the Philips IntelliVue MP20/MP30. The large center opening not only reduces weight but also provides the necessary space for internal sensors and gas passages. This frame is an ideal replacement for the M3014A CO2 monitoring module repair and refurbishment, effectively addressing issues such as damaged, deformed, or aged housings.

► Specification

► Function

This component is a key part of the Philips M3014A module's "dual-link" structure. Its main functions include:

Physical Protection: As a housing, it protects the critical internal MSL flexible cable from external physical damage.

Structural Support: Together with the base frame, it forms a robust connecting arm, ensuring a stable connection between the module and the monitor host.

Signal Transmission Assistance: By protecting the internal cables, it indirectly ensures stable data and signal transmission between the module and the host.

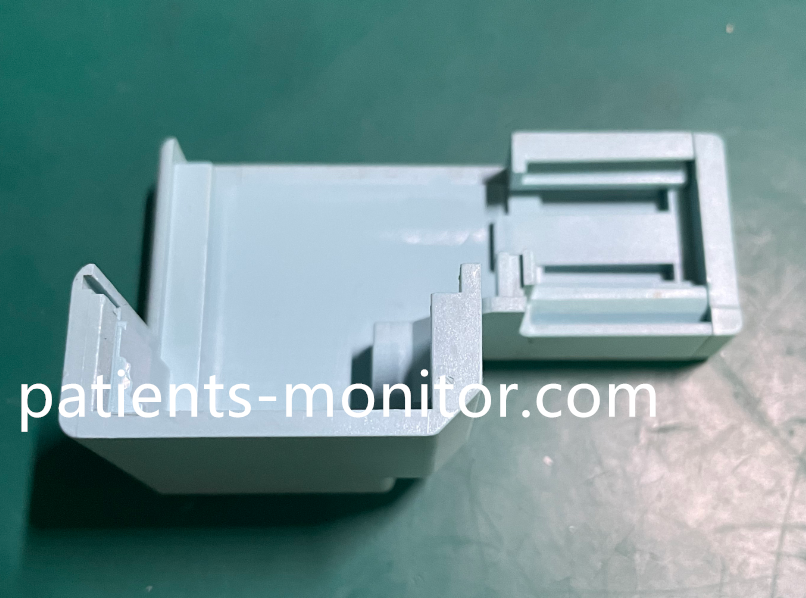

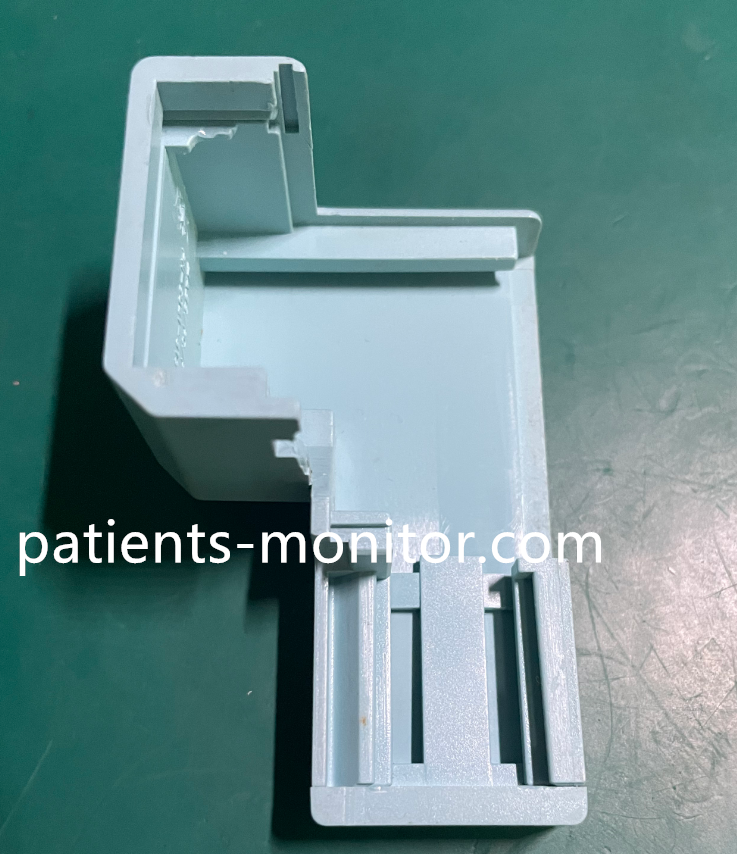

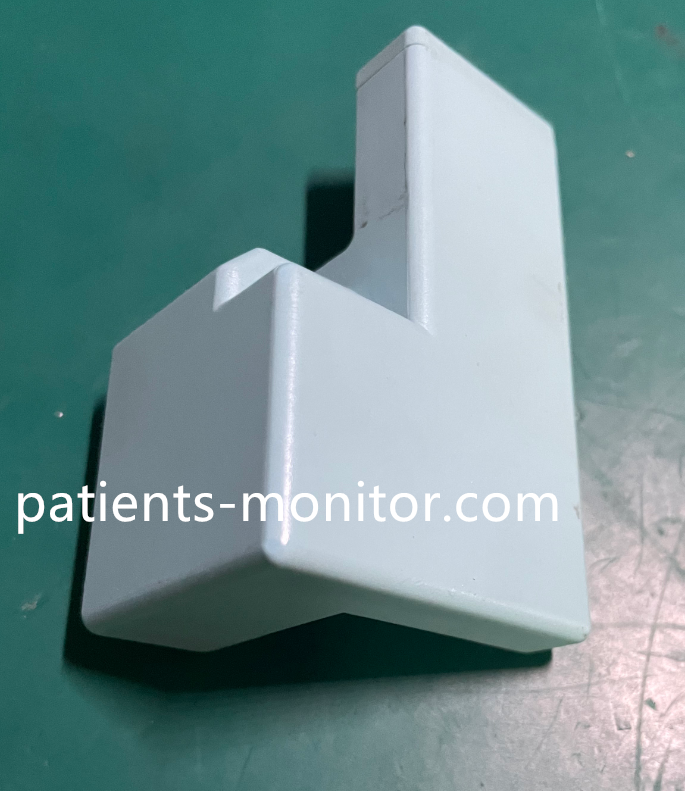

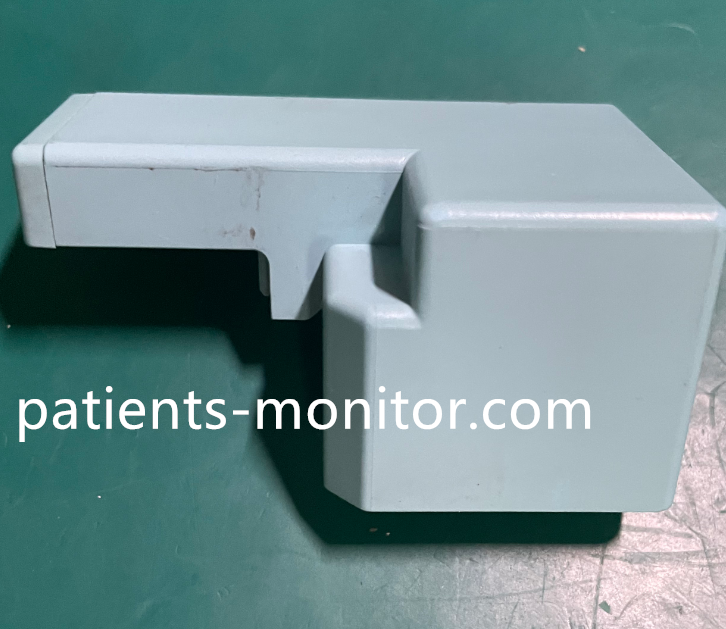

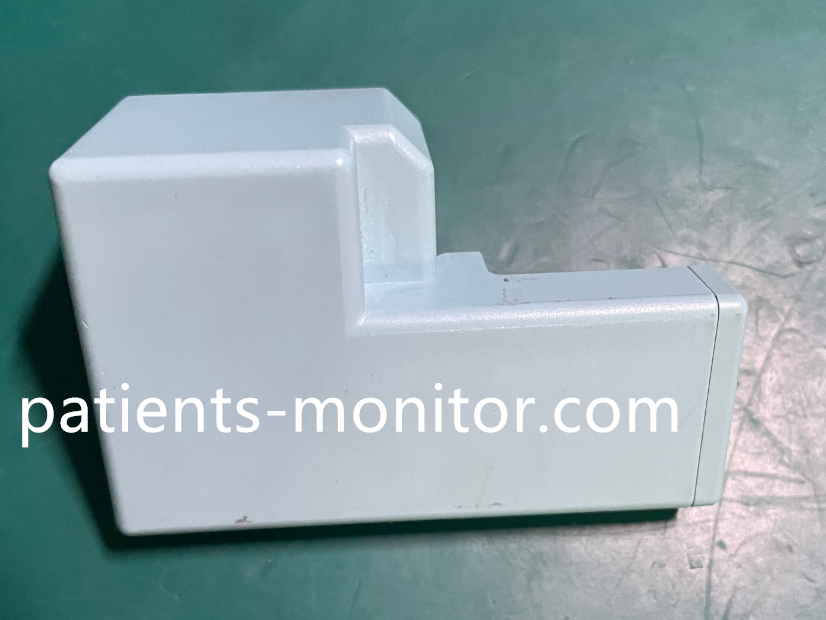

► Detailed Photos

Tags： Double Link Bar, Upper Left Cover, Capnography Module Housing, Philips IntelliVue MP20, Philips M3014A,
