Philips M3014A Fixed Frame Bottom Housing Chassis Assembly for IntelliVue MP20 MP30 MMS

► Brief Description

This is the original mounting frame for the Philips M3014A and other MMS expansion module series. It forms the structural foundation of the module and is made of high-strength white ABS plastic, ensuring durability and dimensional accuracy. Its unique L-shaped bend design and multiple snap-fit edges are specifically designed for secure mounting on the MMS rails of monitors such as the Philips IntelliVue MP20/MP30. The large center opening not only reduces weight but also provides the necessary space for internal sensors and gas passages. This frame is an ideal replacement for the M3014A CO2 monitoring module repair and refurbishment, effectively addressing issues such as damaged, deformed, or aged housings.

► Specification

► Function

This mounting frame forms the "skeleton" of modules like the Philips M3014A. It not only provides physical support, allowing the module to be securely mounted on the display, but also protects internal components (PCB, sensors). It ensures the airtightness and stability of the electrical and gas connections between the module and the host unit, making it an indispensable part of the entire monitoring system.

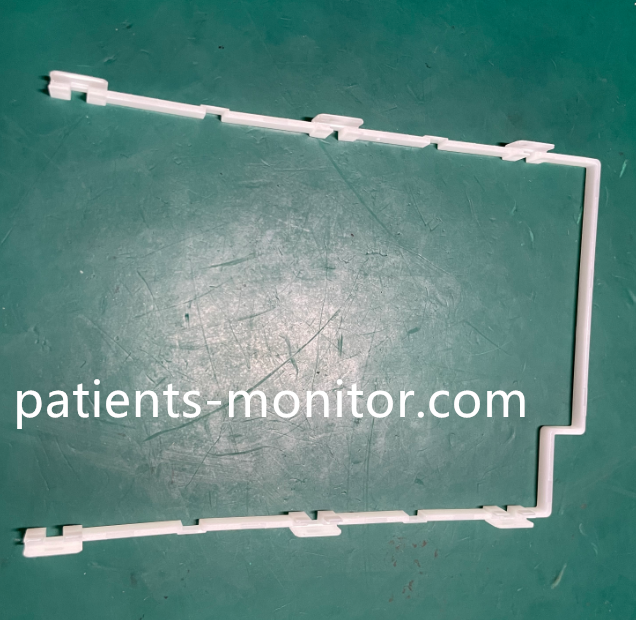

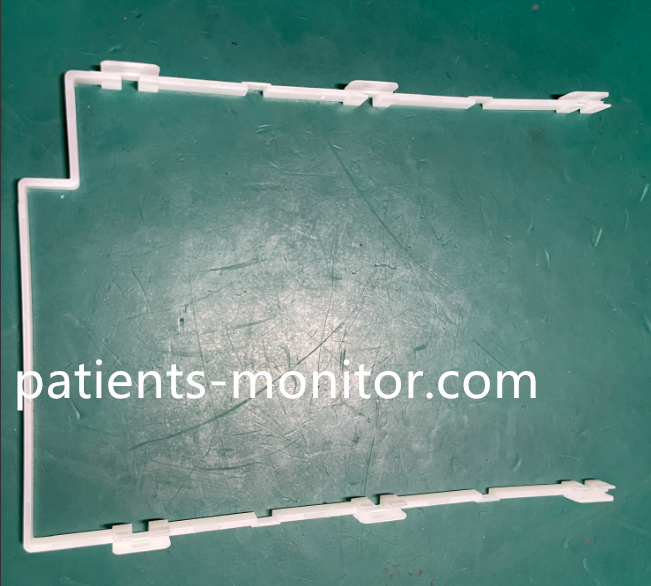

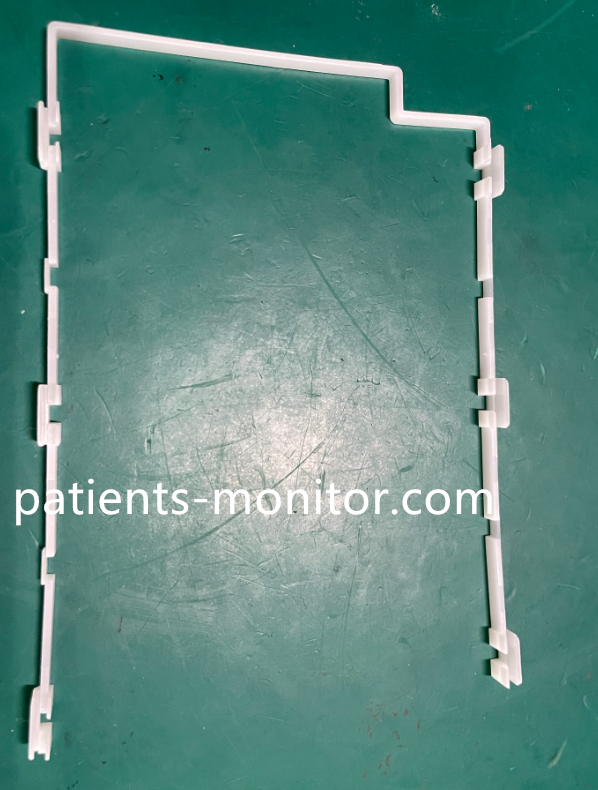

► Detailed Photos
