Philips M3014A Bottom Housing Cover 5041-6111 Back Case Shell With Mounting Pins

Philips M3014A Back Case

Philips M3014A Bottom Housing Cover 5041-6111 Back Case Shell With Mounting Pins

► Brief Description

This is the rear cover (part number 5041-6111) for the Philips M3014A module. This rear cover housing is specifically designed for the M3014A patient monitoring module.

The housing is made of durable, medical-grade flame-retardant plastic, ensuring product lifespan and compliance with medical safety standards.

It features unique “long mounting pins,” which serve as both pivot points and structural supports for the top cover.

These mounting pins are crucial for proper snap-fit installation; without them, the device housing will not seal properly, potentially leading to measurement module malfunction.

This kit includes the main rear cover with an integrated mounting structure. Blue sliding snaps and screw holes provide precise openings for secure installation.

► Specification

► Function

The Philips M3014A rear cover 5041-6111 is the bottom housing assembly for the M3014A module in the Philips IntelliVue MP series patient monitors.

Its primary functions are to provide structural support, sealing protection, and secure internal components.

This housing not only provides physical protection but also participates in the device's electromagnetic shielding and heat dissipation design.

Therefore, genuine Philips parts must be used during repairs to ensure compliance and safety.

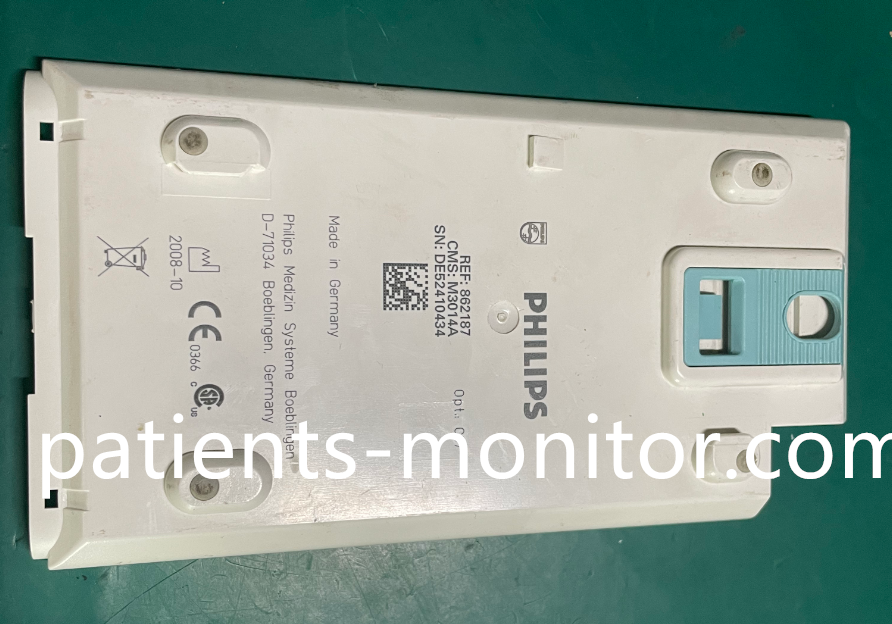

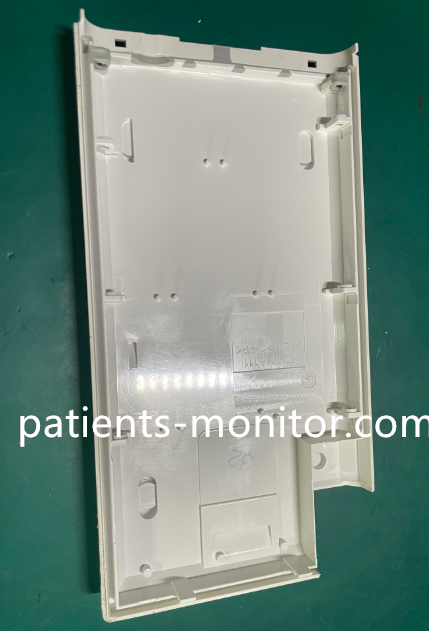

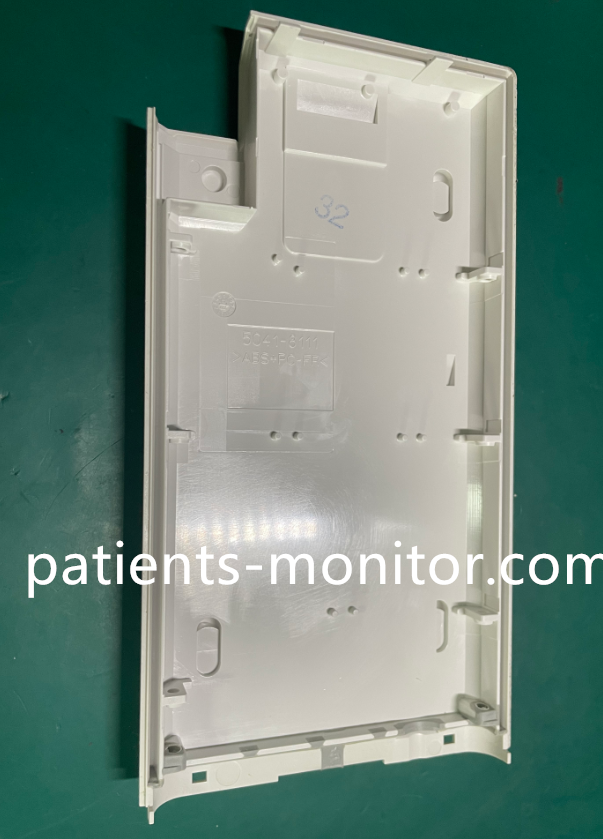

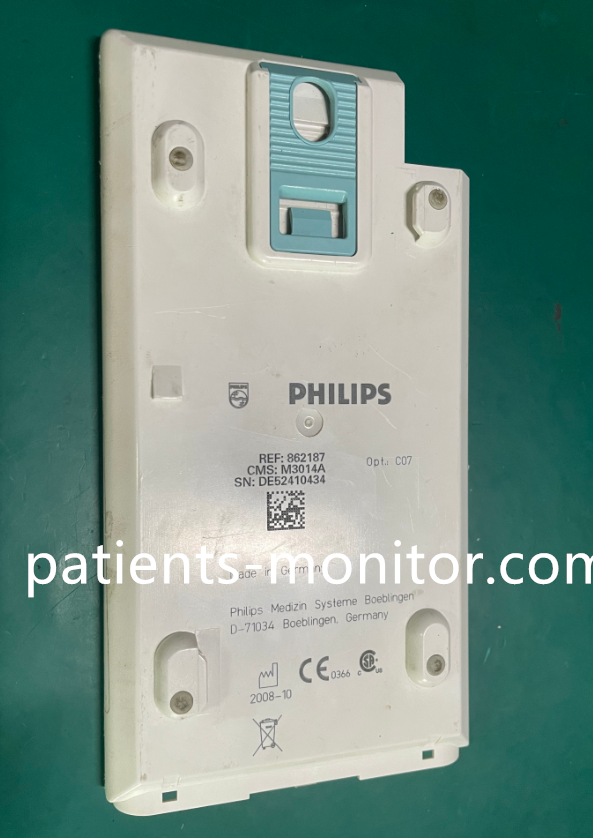

► Detailed Photos

Tags： Philips M3014A Back Case, Bottom Housing Cover, Shell With Mounting Pins,
