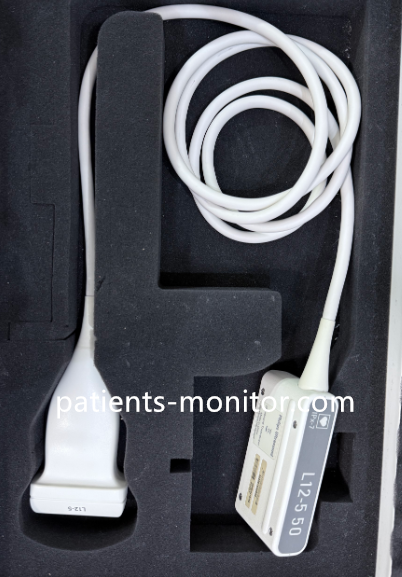

Philips L12-5 50 Ultrasound Probe - Linear Array Transducer For Abdominal, Vascular Imaging

Philips L12-5 50 Ultrasound Probe

Philips L12-5 50 Ultrasound Probe - Linear Array Transducer For Abdominal, Vascular Imaging

► Brief Description

The Philips L12-5 50 Ultrasound Probe is a linear array ultrasound probe from Philips.It utilizes broadband technology, has a frequency range of 12-5MHz, 256 array elements, and a 50mm aperture. It is IPX7 waterproof and dustproof, allowing for stable operation in various clinical environments.

This probe supports multiple imaging modes, including 2D, M-mode, color M-mode, steerable pulsed wave Doppler, color Doppler, color energy angiography, and tissue harmonic imaging.

It provides high-quality images for examinations of the abdomen, blood vessels, small organs (such as the thyroid, breast, and testes), and musculoskeletal system, helping doctors diagnose conditions more accurately.

► Specification

► Usage Guide

· First, place the ultrasound device on a stable and well - ventilated workbench to ensure that there is enough space around the device for operation and heat dissipation.

· Then, turn on the power switch of the device and wait for the device to complete the self - test procedure.

· Next, align the connector of the Philips L12 - 5 50 Ultrasound Probe with the corresponding interface on the device, gently insert it and ensure that the connection is firm. At this time, the relevant information of the probe should be displayed on the device screen.

· Finally, perform a simple image test, select a suitable examination mode, and observe whether the image is displayed normally. If there is any abnormality, check the connection in time or contact the after - sales personnel.

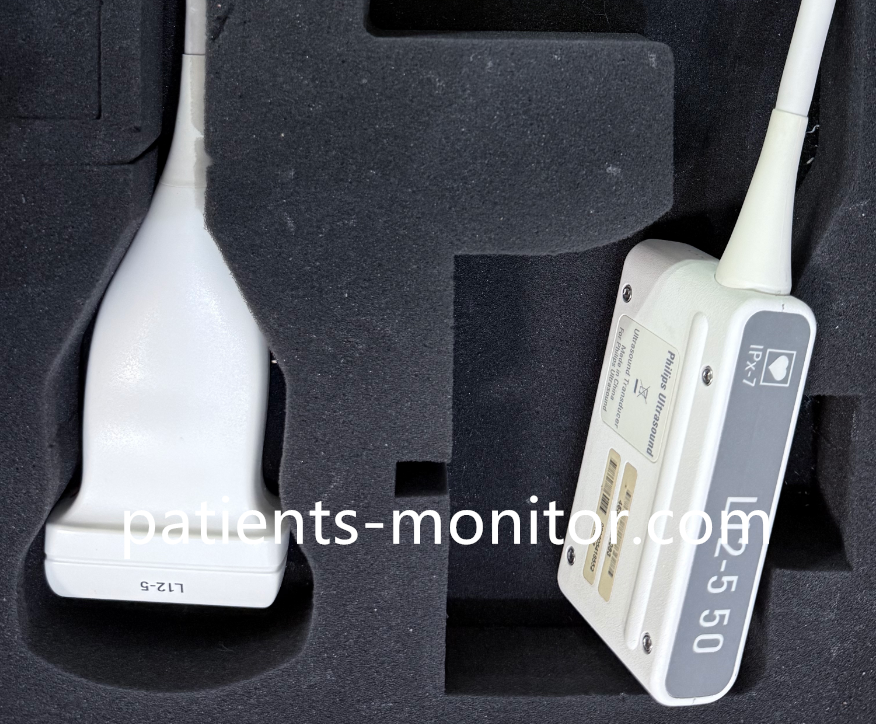

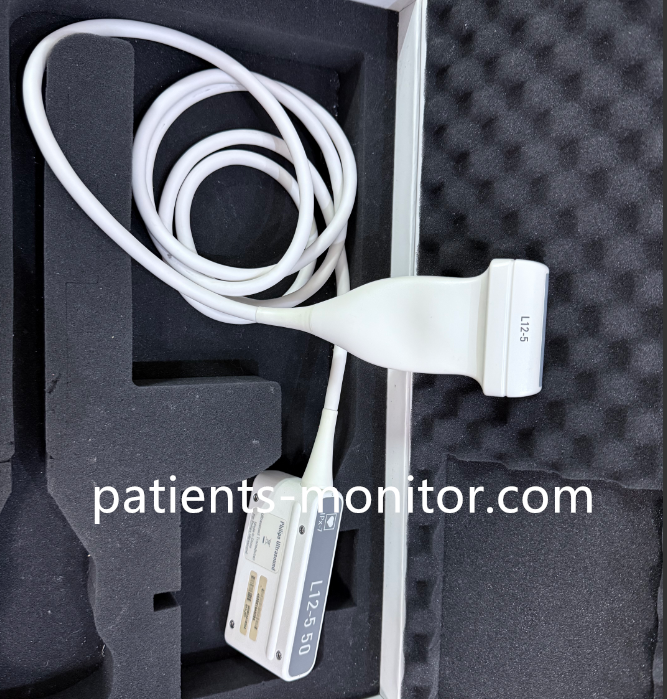

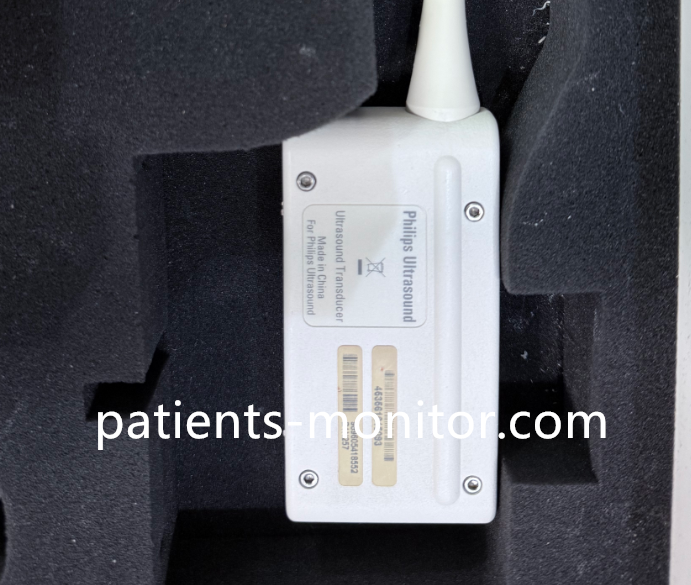

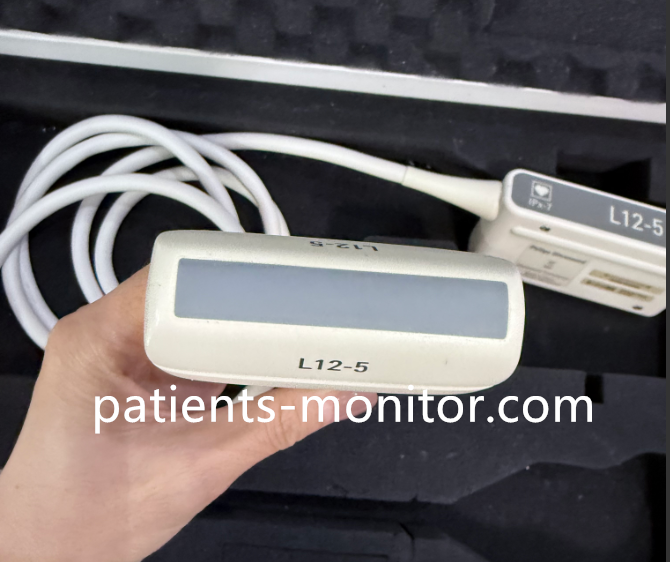

► Detailed Photos

Tags： Philips L12 - 5 50, Ultrasound Probe Linear Array, Multi - Mode Imaging, Biopsy Guidance, Clinical Diagnosis,
