Philips Goldway UT7000C Patient Monitor Power Board 042720002026-LF

Philips UT7000C Power Board

Philips Goldway UT7000C Patient Monitor Power Board 042720002026-LF

► Product Overview

The 042720002026-LF is the original internal switching power board for the Philips Goldway UT7000C patient monitor – the component that actually keeps the whole thing running. It takes the AC mains power, converts it into the stable DC voltages the monitor needs, manages the lithium battery charging and discharging, and handles all the safety protection circuits.

The power board supports 100–240V wide range AC input, so it works with any hospital mains supply. It also handles seamless switching between AC and battery power, if the mains drops out, the board switches to the internal lithium battery without interrupting monitoring. Multiple regulated outputs are provided: a 12V main rail for the motherboard, air pump, and display backlight; 5V and 3.3V rails for ECG acquisition, SpO₂ processing, keypad, and alarm speaker; and a dedicated charging circuit that manages the battery charge curve with automatic float and equalisation switching to prevent overcharging or undercharging.

► Specification

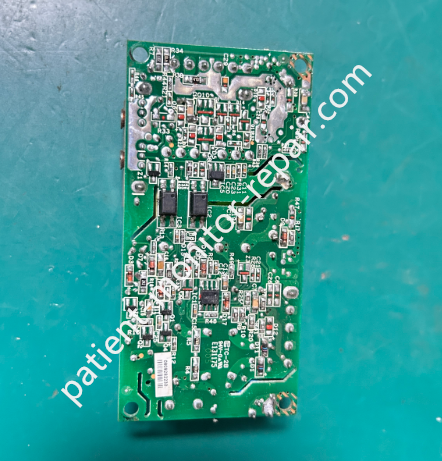

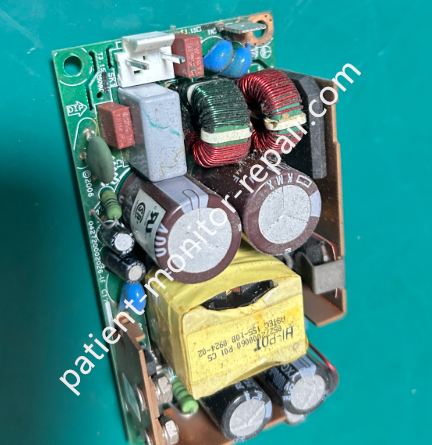

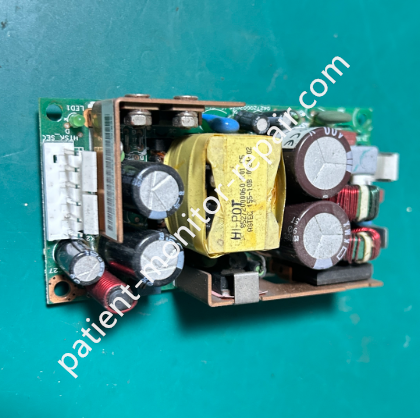

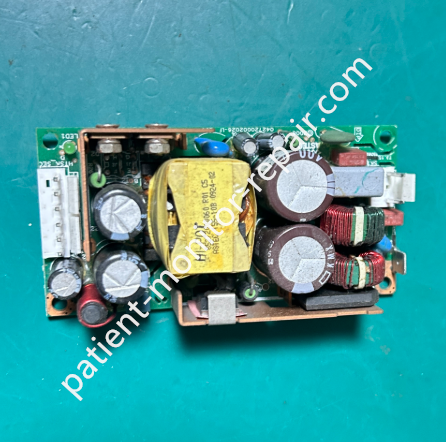

► Detailed Photos

Tags： Philips Goldway UT7000C, Patient Monitor Power Board, UT7000C Power Board,
