Philips G60 Patient Monitor Battery Board Wiring Harness Internal Power Cable Assembly

Battery Board Wiring Harness Internal Power Cable

Philips G60 Patient Monitor Battery Board Wiring Harness Internal Power Cable Assembly

► Product Overview

This is a dedicated internal wiring harness specifically engineered for the Philips G60 patient monitor, identified by part number JM1121440028 and board revision G60BAT01A.

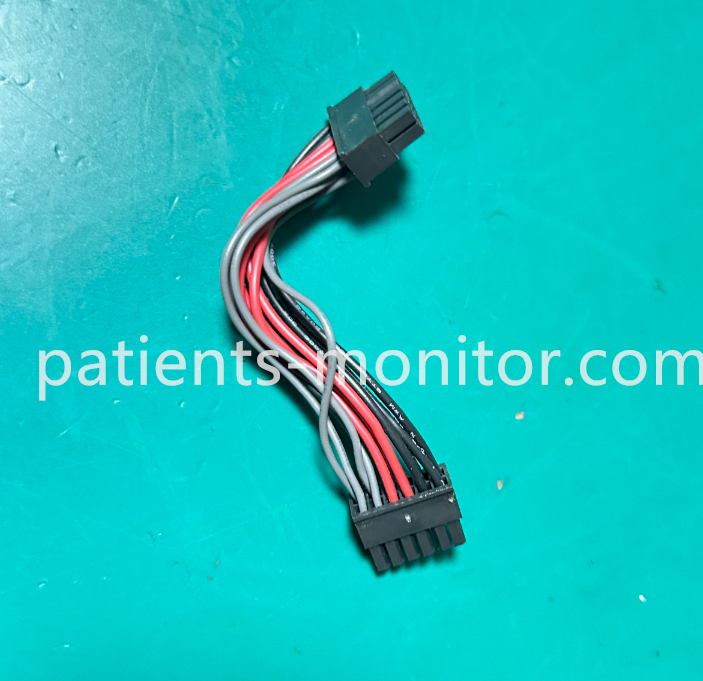

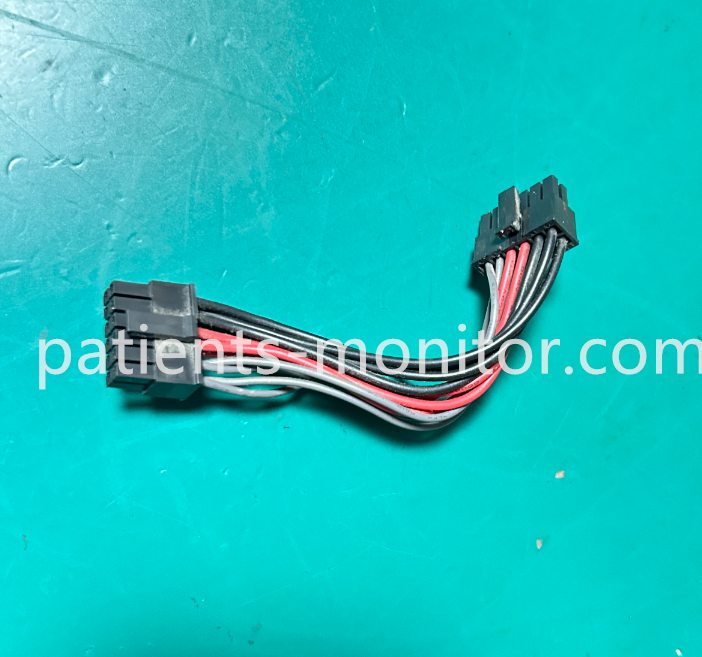

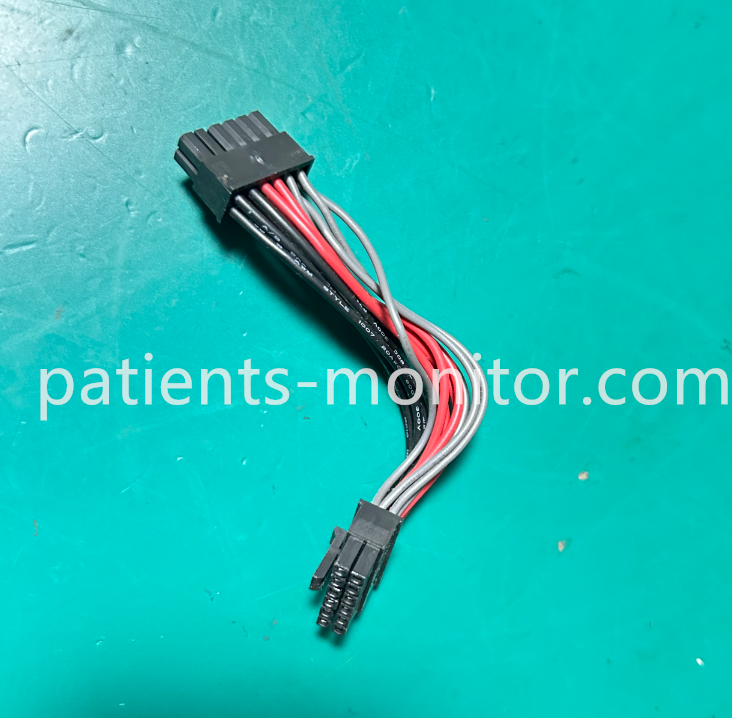

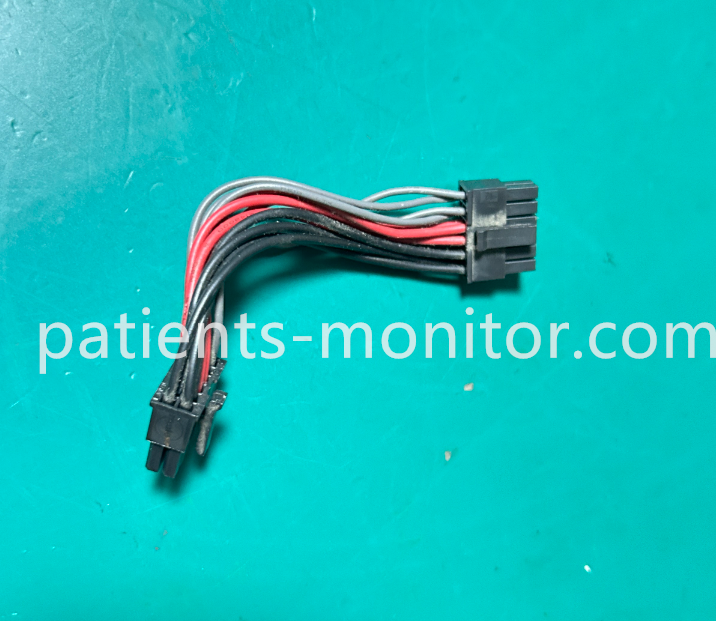

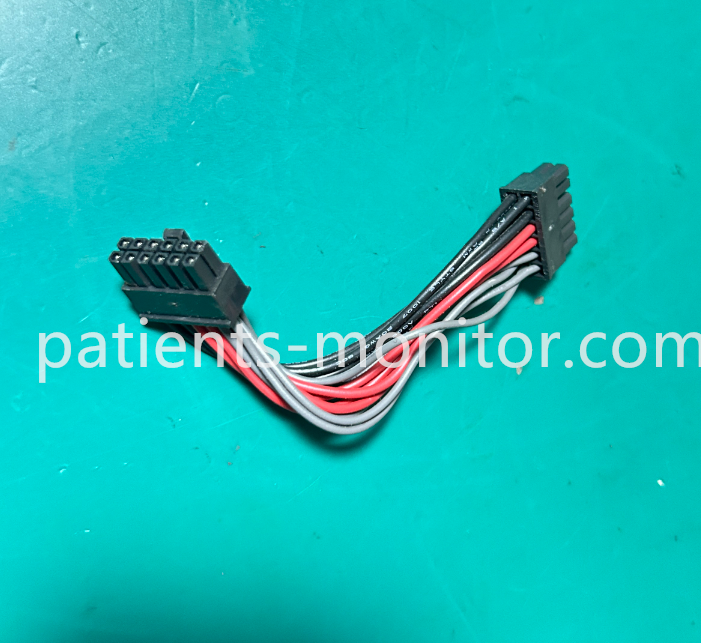

 As clearly shown in the images, this cable assembly features a robust multi-wire configuration with distinct red, black, and grey insulated conductors encased in a protective black sheath. It terminates in two precision-molded black plastic connectors: a larger multi-pin socket designed to mate directly with the battery interface board’s JP1 port, and a smaller connector that plugs into the mainboard or power distribution unit. This harness serves as the critical physical link between the rechargeable battery pack and the monitor’s core electronics, ensuring uninterrupted power delivery during mobile use or AC power failure.

Beyond simple power transfer, it carries essential I2C communication signals — including SCL, SDA, and THM lines --- which allow the system to accurately read battery status, temperature, and health metrics.

Without this cable functioning correctly, the monitor may fail to recognize the battery, display incorrect charge levels, or refuse to charge altogether. Its compact, pre-routed design ensures clean installation within the confined internal chassis of the G60 unit, minimizing interference with other components while maintaining reliable electrical continuity under repeated handling and vibration.

► Specification

► Detailed Photos
