Philips G60 Patient Monitor Battery Interface Board JM1121440028 G60BAT01A Replacement PCB Assembly

Battery Interface Board

Philips G60 Patient Monitor Battery Interface Board JM1121440028 G60BAT01A Replacement PCB Assembly

► Product Overview

This is a genuine replacement Battery Interface Board designed specifically for the Philips G60 Patient Monitor. Identified by the part number JM1121440028 and board revision G60BAT01A, this component serves as the critical link between the monitor's main power system and its rechargeable battery pack.

Visually, the board features a compact blue PCB layout with precision soldering.

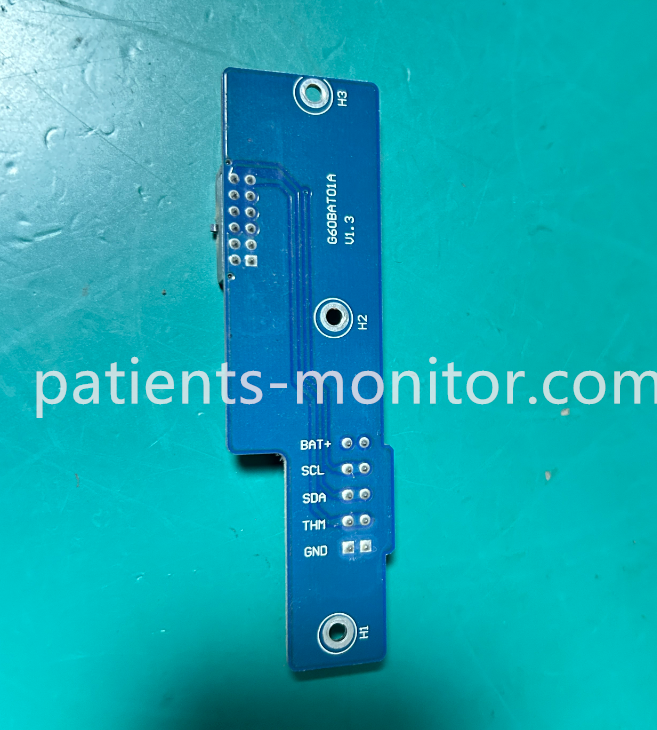

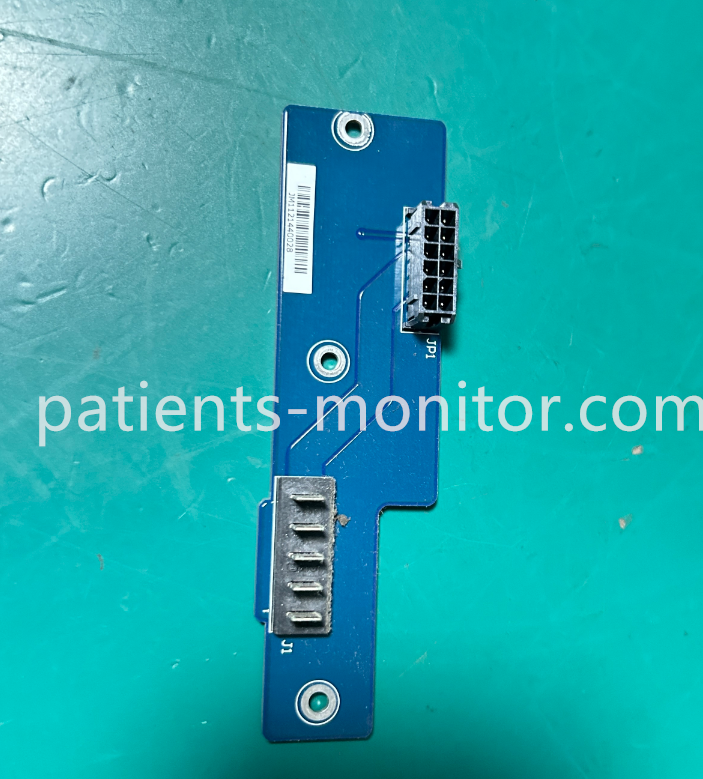

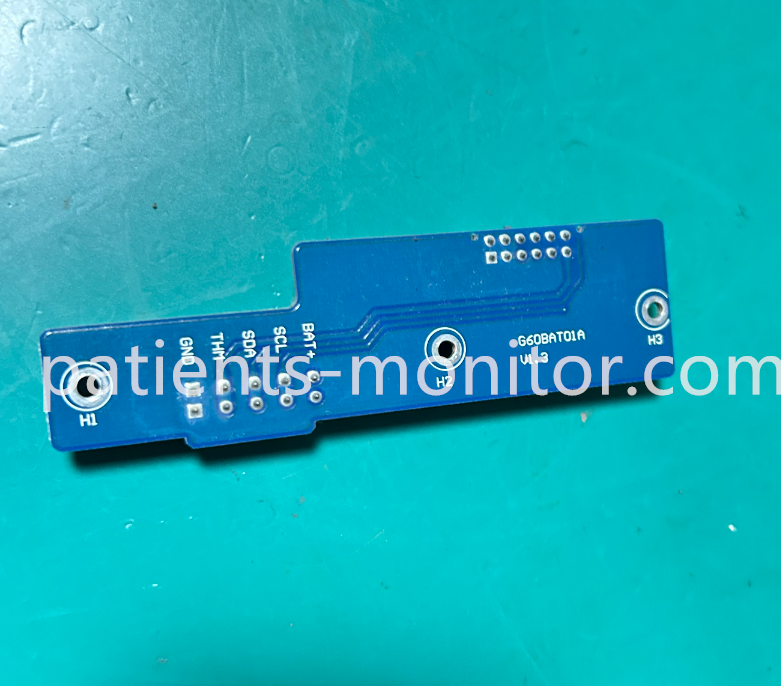

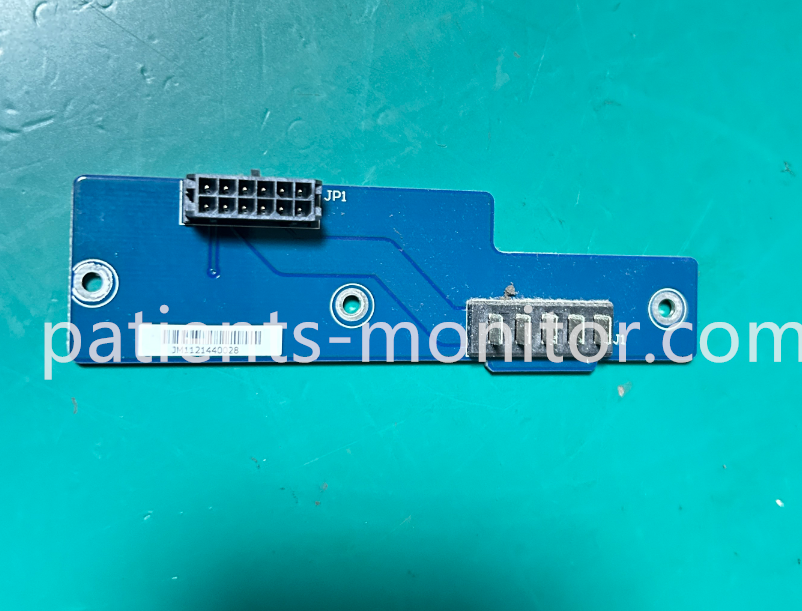

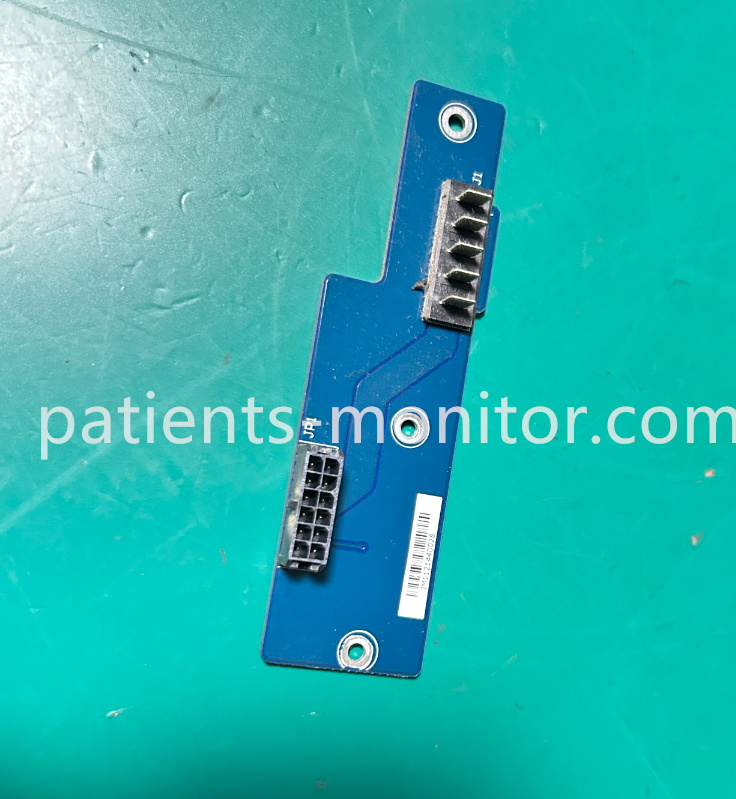

It is equipped with two distinct connectors: a multi-pin interface (JP1) for connecting to the monitor's internal harness and a dedicated port (J1) for the battery assembly. As seen in the close-up images, the board includes specific circuit traces for I2C communication (SCL/SDA) and thermal monitoring (THM), ensuring accurate battery level reporting and safe charging management.
