Philips Replacement Mainboard M8052-66404 for MP40 Patient Monitor

Philips MP40 Mainboard

Philips Replacement Mainboard M8052-66404 for MP40 Patient Monitor

► Product Introduction

The Philips IntelliVue MP40 motherboard (part number: M8052-66404) is the central processing unit and control unit of the IntelliVue MP40 and MP50 series patient monitors. This motherboard is responsible for system management, data acquisition, signal processing, and communication with all internal functional modules.

Located inside the monitor, the mainboard connects to various parameter modules via ribbon cables and internal wiring. It integrates the central processor, memory, and interface controllers. The board processes physiological signals: including ECG, SpO₂, NIBP, respiration, and temperature, received from the measurement modules, then sends the processed data to the display, manages network communications, and handles external device connectivity.

► Specification

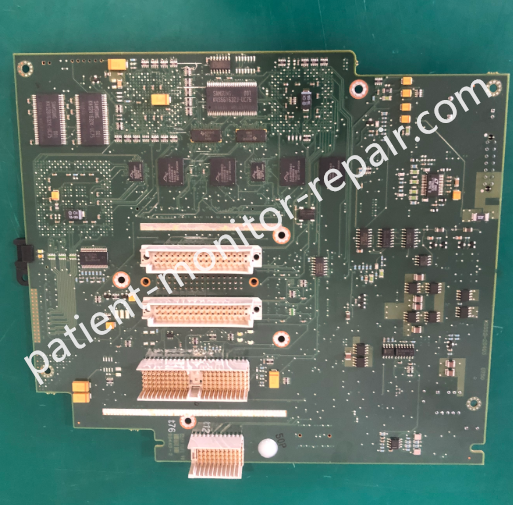

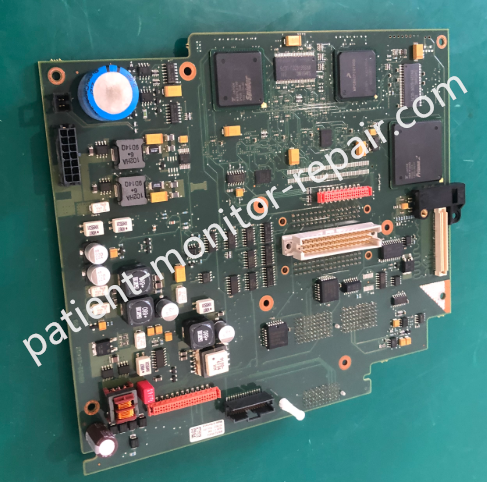

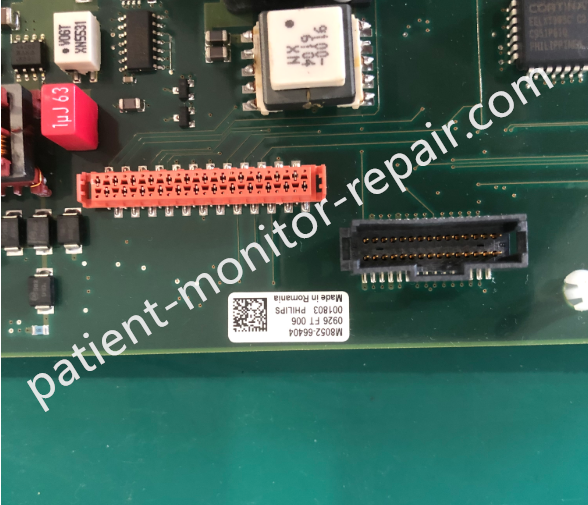

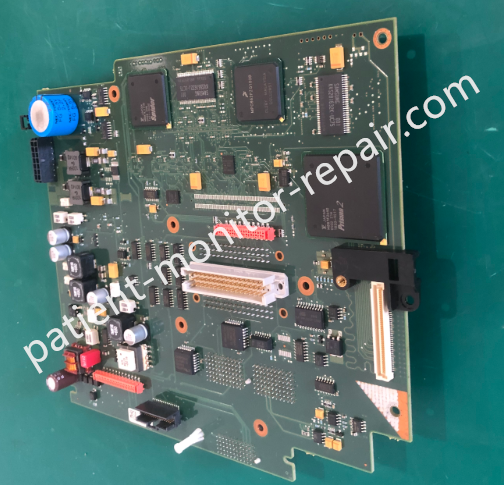

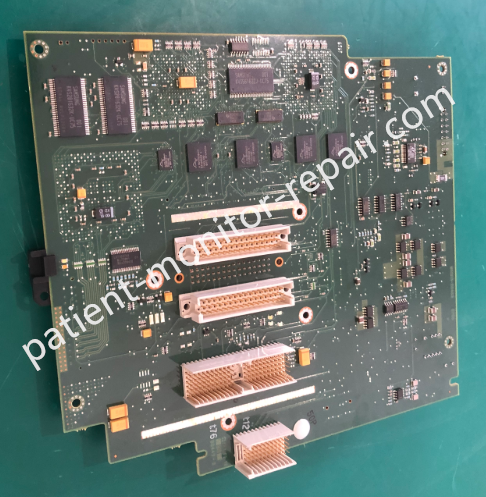

► Detailed Photos

Tags： Philips MP40 Patient Monitor, MP40 Mainboard, M8052-66404 Mainboard,
