Philips M3001A Module Block Channel Parameter Board M3001-66401

Philips M3001A Module Parameter Board

Philips M3001A Module Block Channel Parameter Board M3001-66401

► Product Overview

This product is a Channel Parameter Board (PN: M3001-66401) designed for the M3001A Multi-Measurement Module (MMS) system. The board features a compact, high-density PCB design with precision surface-mount components and gold-plated edge connectors for reliable signal transmission. It integrates dedicated signal processing chips and parameter-specific conditioning circuits responsible for acquiring and processing a particular physiological signal channel within the module. As a critical interchangeable component of the modular MMS system, this board allows for flexible configuration of the patient monitor by housing the specific hardware and algorithms needed for monitoring parameters such as ECG, respiration, or invasive blood pressure. Its precise design ensures high-fidelity signal acquisition and seamless communication with the module's main control board, contributing to the overall accuracy and reliability of patient monitoring in various clinical environments.

► Specification

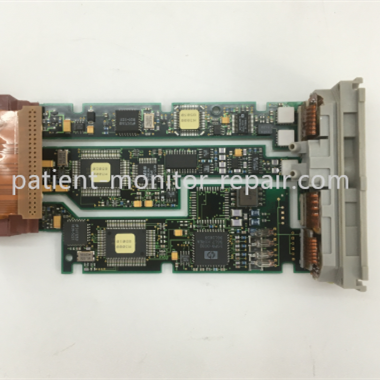

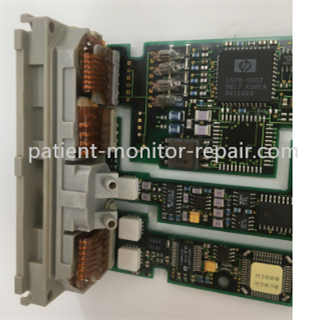

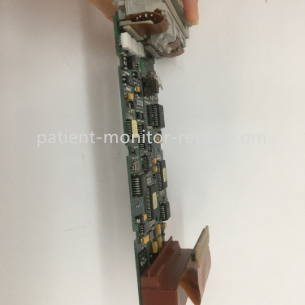

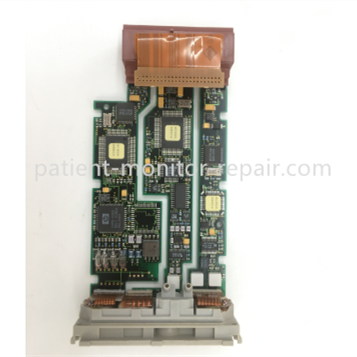

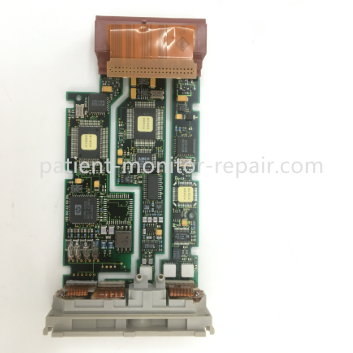

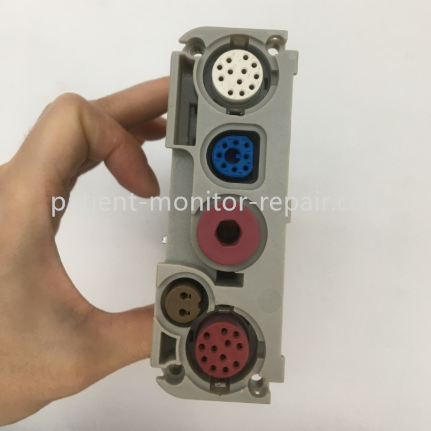

► Detailed Photos

Tags： M3001-66401 Board, Philips M3001A Module, Block Channel Parameter Board,
