Philips MP40 Patient Monitor Parts 12'' LCD Display Screen LQ121S1LW01 NT0341-2

Philips MP40 LCD Display

Philips MP40 Patient Monitor Parts 12'' LCD Display Screen LQ121S1LW01 NT0341-2

► Product Introduction

This is an original specification 12.1-inch LCD display screen designed for the philip MP40 series patient monitor, PN LQ121S1LW01, corresponding to part number NT0341-2. It features a uniform matte, anti-glare surface treated with a hard coating (2H) that resists minor scratches and minimizes reflections. The rear interface is neatly arranged, incorporating a 20 pin LVDS single channel signal connector with a keyed design to prevent reverse insertion. Allowing it to seat precisely into the front bezel without the need for shims or adjustments.The screen displays real-time and stored physiological measurement data, alarm status data, and status information, received from the MDSE Interface Manager, Alarm Service, or other modules.

► Specification

► Display Controller

The display controller interface is composed of a video controller chip, video RAM, and dedicated control software. It processes high-level display commands such as character generation, graphic rendering, and waveform drawing, converting these instructions into pixel data that is written into the video RAM. The video controller chip then generates video synchronization signals and outputs the pixel stream to drive the color LCD display.

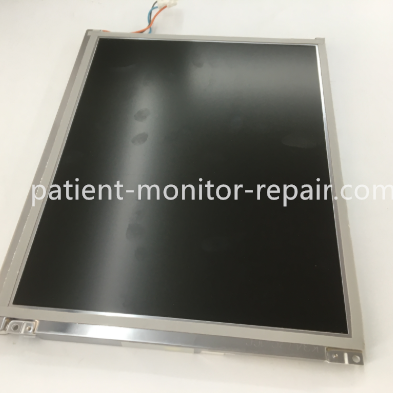

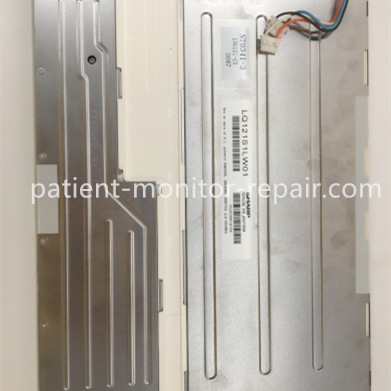

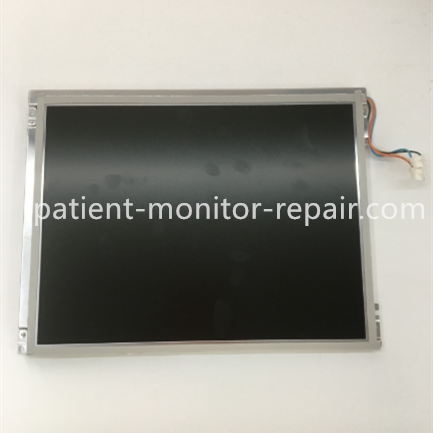

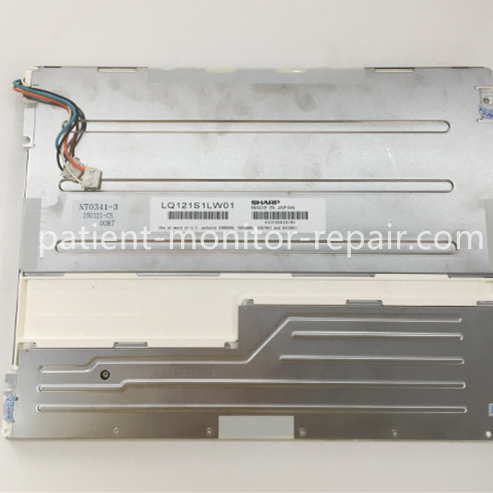

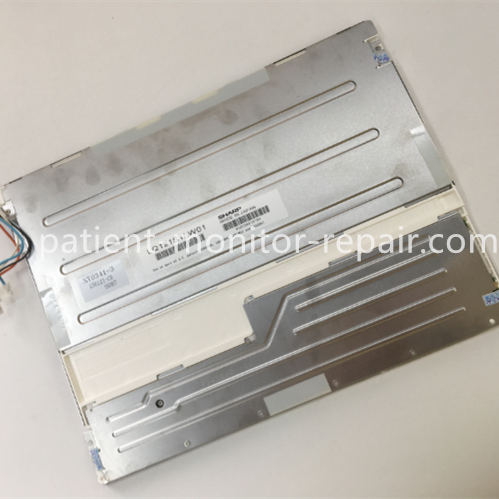

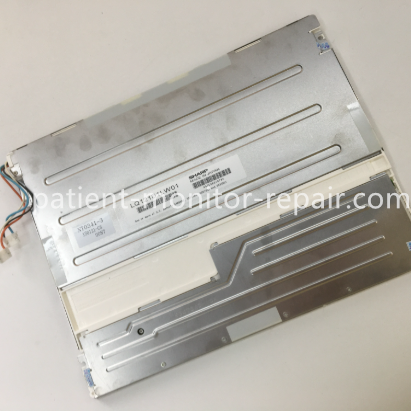

► Detailed Photos

Tags： Philips Display, MP40 Patient Monitor Parts, 12'' LCD Display Screen,
