Philips IntelliVue X3 Patient Monitor Front End Adapter Board 453564521861 453564521871

Philips X3 Front End Adapter Board

Philips IntelliVue X3 Patient Monitor Front End Adapter Board 453564521861 453564521871

► Product Overview

This is a dedicated front end adapter board assembly for the X3 series monitors, comprising a main adapter board and an expansion board . This component acts as a crucial signal dispatch center within the monitor. Its compact, green circuit board is meticulously designed and packed with precision chips and high-definition interfaces. It is primarily responsible for receiving and managing various video and audio signals from external devices . Through internal processing and stable transmission, it ensures that the original signals are delivered to the monitor's core processing unit without loss of quality and with high clarity. This assembly forms the physical foundation for enabling multi device connectivity, one button switching, and high-fidelity transmission for the monitor.

► Specification

► Main Functions

• The core component is responsible for accurately transferring and distributing the raw physiological signals from various front-end parameter modules (ECG, blood oxygen, NIBP, body temperature, etc.) to the monitor's mainboard, achieving unified transmission of signals from multiple modules and avoiding signal conflicts and transmission interruptions.

• Signal preprocessing and optimization: Built-in signal filtering and level conversion preprocessing circuits effectively filter electromagnetic interference and noise in the clinical environment, optimize signal quality, and ensure that the signals transmitted to the mainboard are pure and stable, providing a reliable foundation for subsequent data analysis.

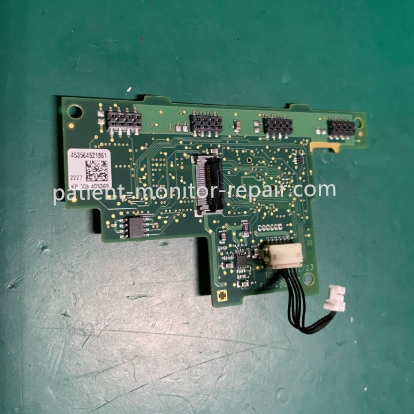

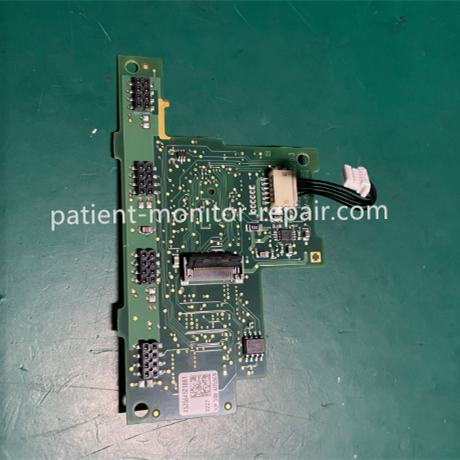

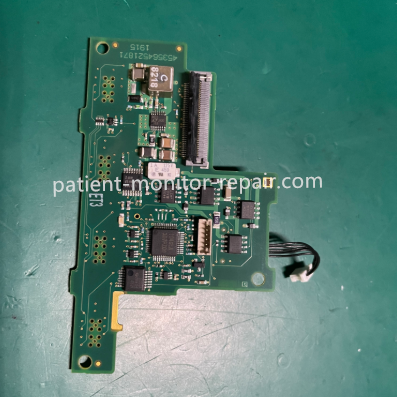

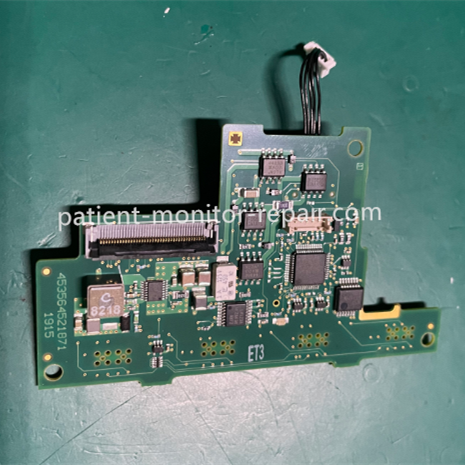

► Detailed Photos

Tags： X3 Patient Monitor, Front End Adapter Board, Philips IntelliVue,
