Philips M3001A Multi-Measurement Server Module With ECG NIBP IBP SpO2 Parameter Board Card

Philips M3001A Server Module

Philips M3001A Multi-Measurement Server Module With ECG NIBP IBP SpO2 Parameter Board Card

► Brief Description

This is the Philips M3001A Multi-Measurement Server (MMS), a multi-parameter measurement module for patient monitors.

It is a "block of channels," a circuit board integrating measurements such as ECG (electrocardiogram), NIBP (non-invasive blood pressure), IBP (invasive blood pressure), and SpO2 (oxygen saturation).

This component is installed in the main chassis of the Philips IntelliVue series monitors and serves as the core measurement unit.

It is responsible for processing physiological signals from various sensors and transmitting the data to the monitor's main control board for display and analysis.

► Specification

► Important Notes

1. Firmware Compatibility:

Ensure the software/firmware version of the M3001A module matches the host software to avoid communication errors.

2. Electrostatic Discharge Protection:

When handling the PCB board, always use electrostatic discharge (ESD) protection measures to prevent damage to sensitive electronic components.

3. Safe Connection:

Before powering on, ensure the flat ribbon cable is securely connected to the motherboard.

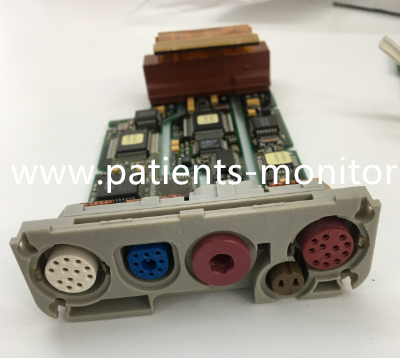

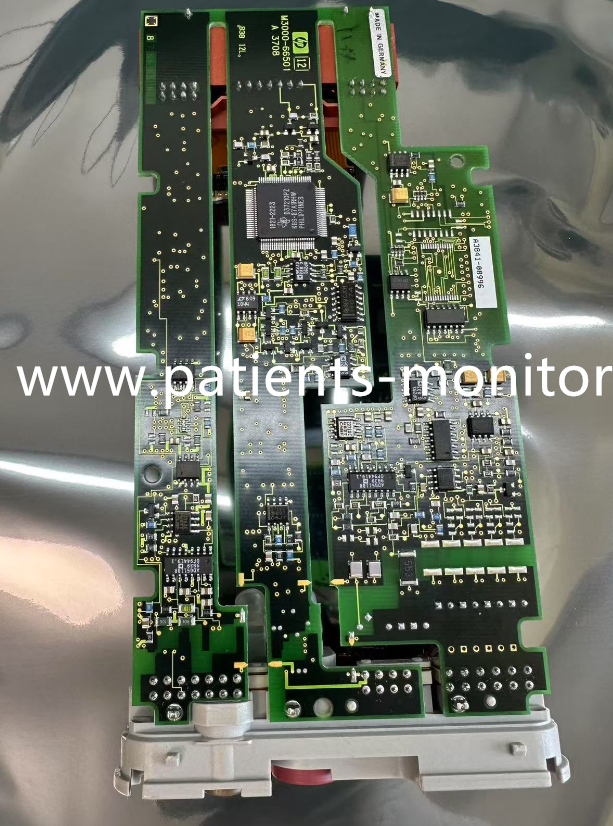

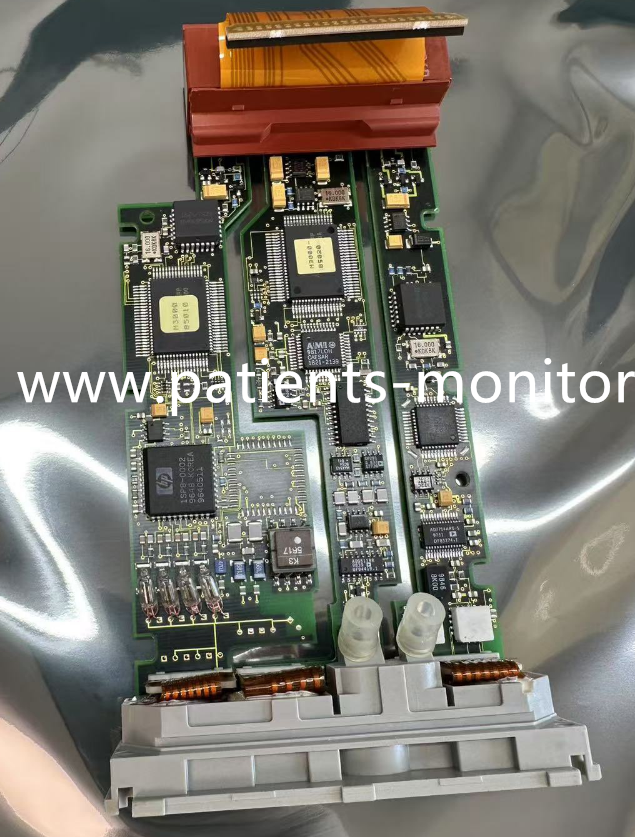

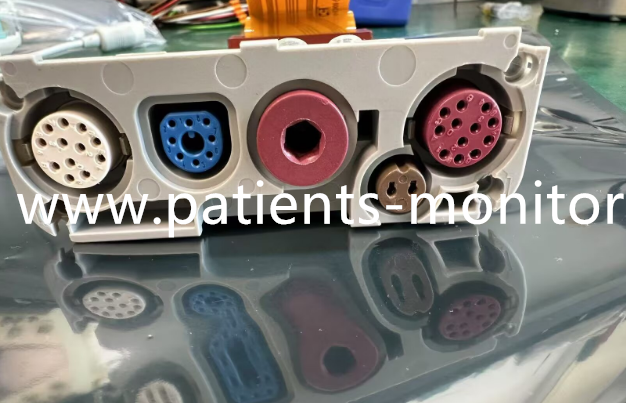

► Detailed Photos

Tags： Philips M3001A Multi Measurement, Server Module Board Card, MP40 MP50 M3 M4 Patient Monitor, ECG NIBP IBP SpO2 Parameters,
