Philips S8-3 Used Ultrasound Transducer Sector Array Probe For Cardiac Abdominal Imaging

Philips S8-3 Array Probe

Philips S8-3 Used Ultrasound Transducer Sector Array Probe For Cardiac Abdominal Imaging

► Brief Description

The Philips S8-3 ultrasound probe features a fan-shaped array design and a handheld, white engineering plastic casing for scratch resistance.The probe's contact surface with the patient uses medical-grade flexible material to reduce patient discomfort; a red marker on the top assists healthcare personnel in positioning.

Supported scanning areas: Adult heart (left ventricular function, valvular disease), pediatric heart (congenital heart disease), fetal heart (pregnancy screening), pediatric abdomen (organ lesions), neonatal brain (ventricular development).

Detailed probe parameters: Features 8-3MHz broadband technology and 96 elements, enabling deep tissue penetration and high-resolution imaging; compatible with 2D, color Doppler (blood flow visualization), spectral Doppler (quantifying flow velocity), tissue Doppler (myocardial motion analysis), and harmonic imaging (image contrast enhancement).

► Specification

► Usage Guide

• Usage Tips: Before examination, apply medical coupling gel evenly to the probe surface to avoid air bubbles affecting imaging; for pediatric/newborn examinations, switch to the corresponding preset mode.

• Installation Steps: Turn off the ultrasound system → Insert the S8-3 probe into the designated interface → Power on for self-test → Select the “S8-3” model in the system menu → Activation complete.

• Maintenance Recommendations: Clean the probe surface daily (wipe with medical alcohol swabs), check cable impedance monthly, and calibrate image quality every six months.

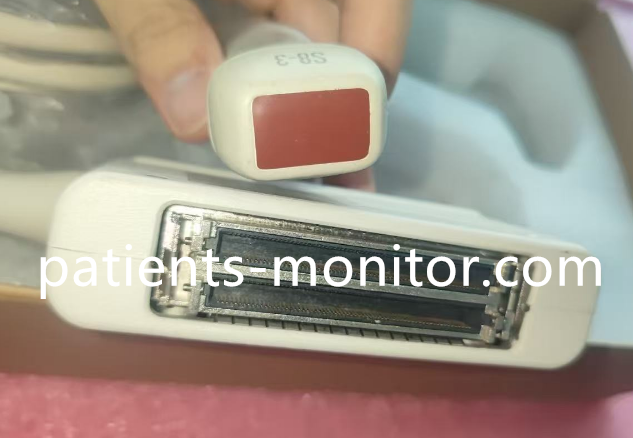

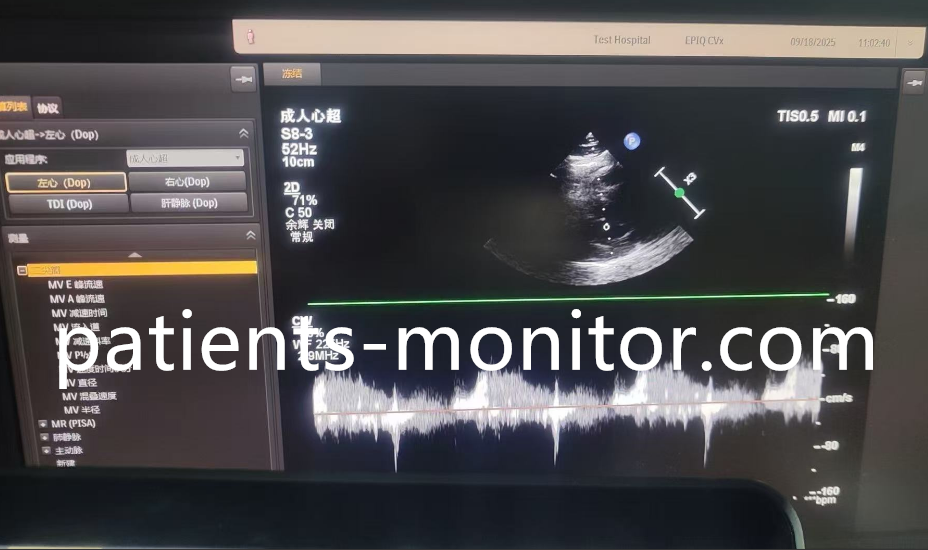

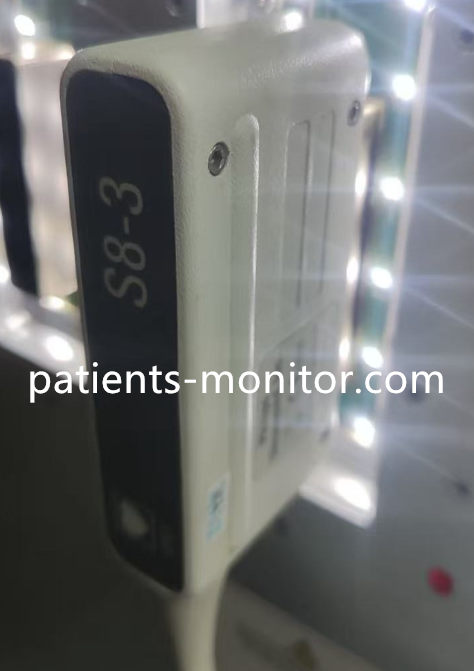

► Detailed Photos

Tags： Philips S8-3 Ultrasound Transducer, Systems 8-3MHz Broadband Technology 96 Elements, For Adult Pediatric Fetal Cardiac Abdominal,
