F453564010751 Connector Board For Philips SureSigns VM6 Patient Monitor

SureSigns VM6 Connector Board

F453564010751 Connector Board For Philips SureSigns VM6 Patient Monitor

► Brief Description

This component is a dedicated connector board for the Philips VM6 patient monitor, model number F453564010751. Its main function is to serve as the electrical connection hub between various modules within the device.

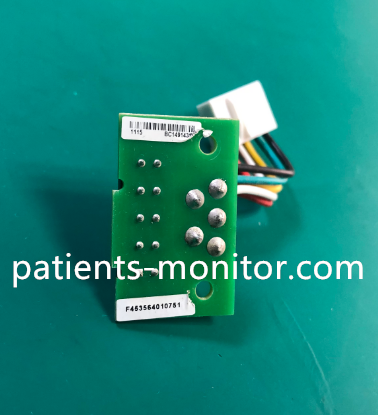

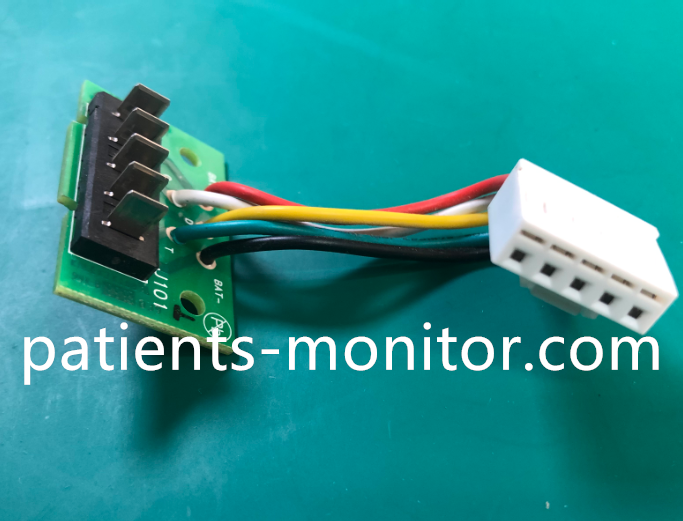

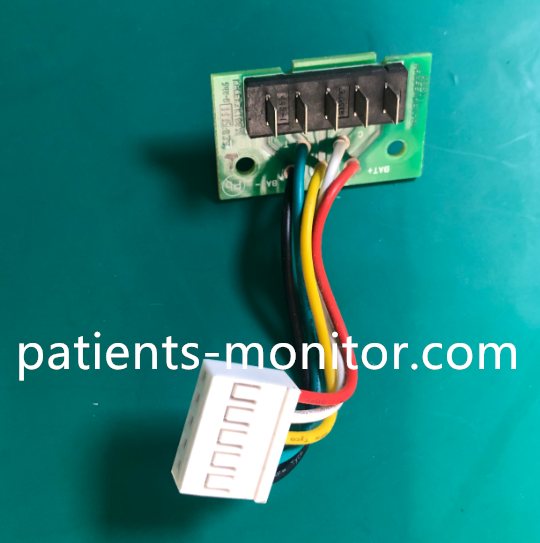

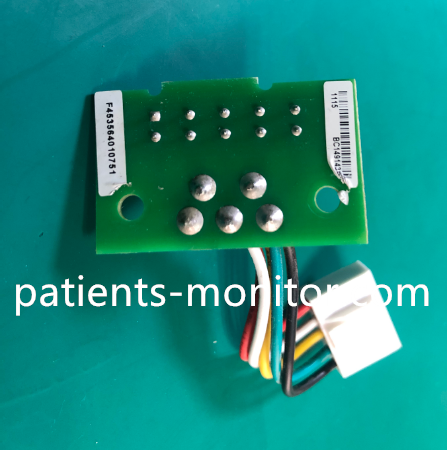

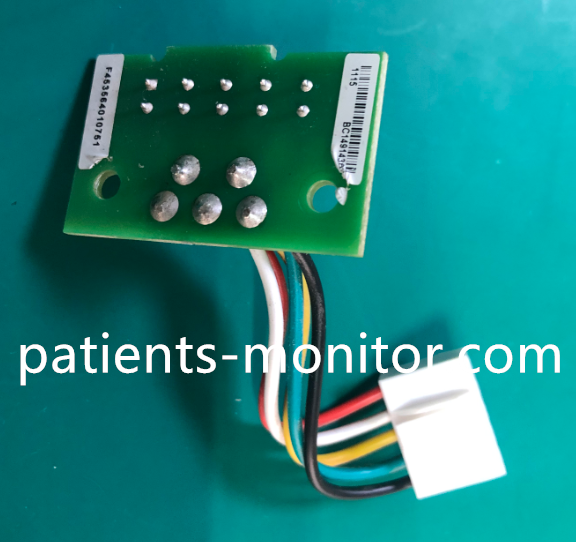

This board is a standard green PCB, equipped with a black multi-pin male connector, which connects to a white female connector via five-color (red, yellow, blue, black, and white) cables. The cables are clearly labeled with interface markings such as "BAT+" and "BAT-", used for internal power distribution and signal transmission.

► Specification

· Model: F453564010751

· Compatible Device: Philips VM6 Patient Monitor

· Material: FR-4 Glass-Epoxy PCB Base

· Connector Type: Multi-pin Plug-In Interface

· Cable Specification: Five-core Shielded Cable with Color Coding

· Operating Voltage Range: Matches OEM Equipment Standard (Typically DC 12V)

► Installation & Usage

Please replace the device after turning it off and disconnecting all external power. Confirm that the slot orientation and wiring sequence match the original part before inserting it to avoid short circuits or damage to the motherboard caused by reverse insertion. Before first use, it is recommended to perform a system self-test and functional test to ensure uninterrupted vital sign monitoring.
