453564081701 PHILIPS SureSigns VM6 Patient Monitor Keypress Encoder Board Keypad Interface Board

SureSigns VM6 Keypad Interface Board

453564081701 PHILIPS SureSigns VM6 Patient Monitor Keypress Encoder Board Keypad Interface Board

► Brief Description

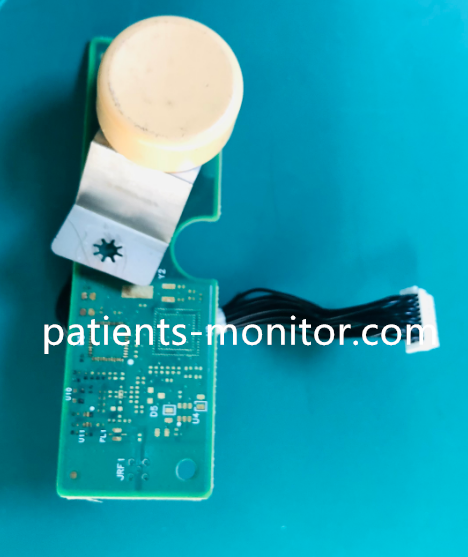

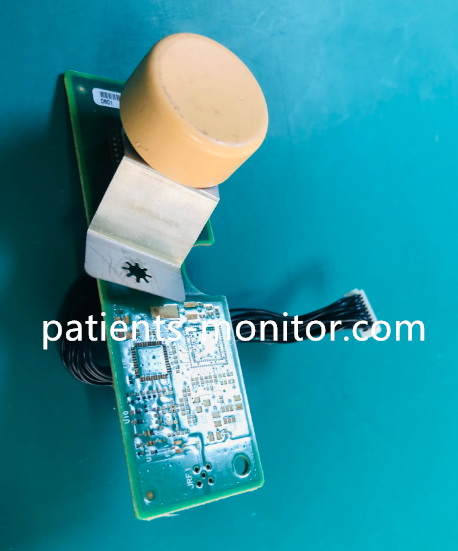

The VM6 monitor's keypad connects to the mainboard via an encoder board, which encodes physical button operations (such as parameter settings and screen control) into electrical signals and transmits them to the main control PCB. This board is an irregularly shaped green PCB that integrates multi-pin connectors, surface-mount resistors/capacitors, and cable assemblies, with a circular sensor connected to one end (for button feedback).

► Specification

► Product Advantages

1. Open the back cover of the VM6 patient monitor and find the original keypress encoding board (located at the back of the key panel).

2. Disconnect the cable connector of the original encoding board and remove the fixed screws.

3. Install the new encoding board, ensure that the connector is aligned with the interface of the motherboard, and tighten the screws.

4. Power on to test the key function, and after confirmation, reinstall the back cover.

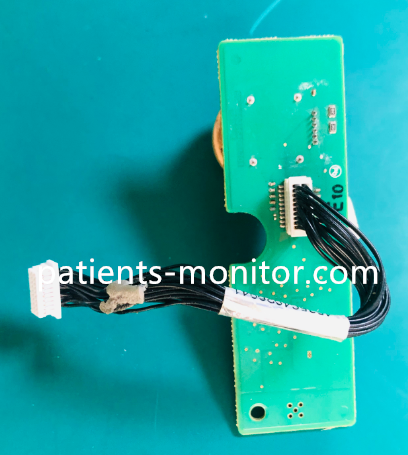

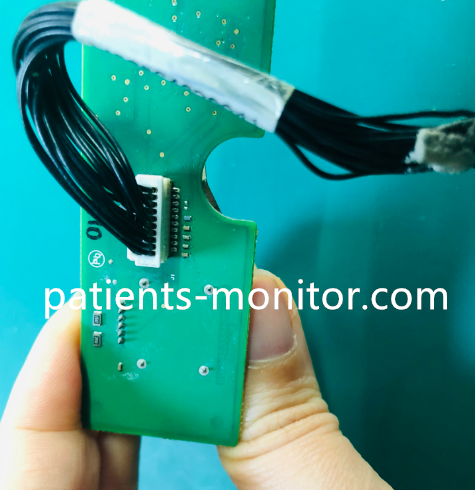

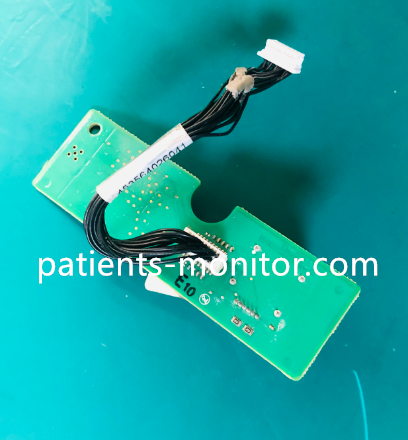

► Detailed Photos

Tags： Philips SureSigns VM6, Keypress Encoder Board, Keypad Interface Board,
