453564025431 K3362 PHILIPS SureSigns VM6 Patient Monitor Inverter High Pressure Board

SureSigns VM6 Inverter High Pressure Board

453564025431 K3362 PHILIPS SureSigns VM6 Patient Monitor Inverter High Pressure Board

patient monitor inverter high pressure board 453564025431 K3362 (5).png" alt="PHILIPS VM6 patient monitor inverter high pressure board 453564025431 K3362 (5).png" width="463" height="434" border="0" vspace="0" style="width: 463px; height: 434px;"/>

► Brief Description

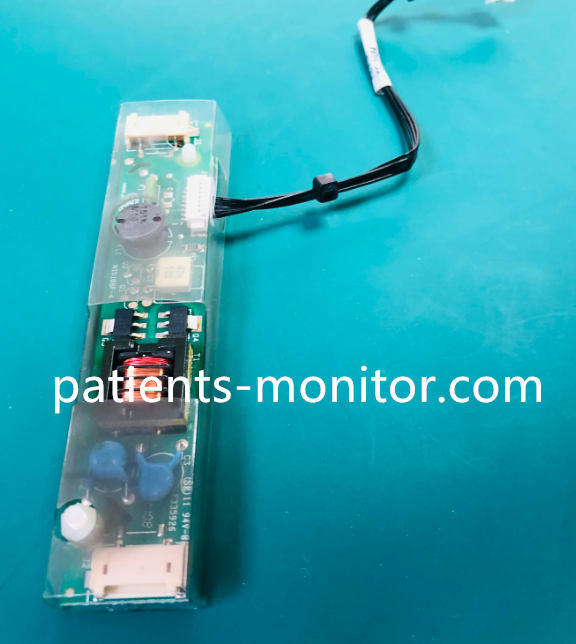

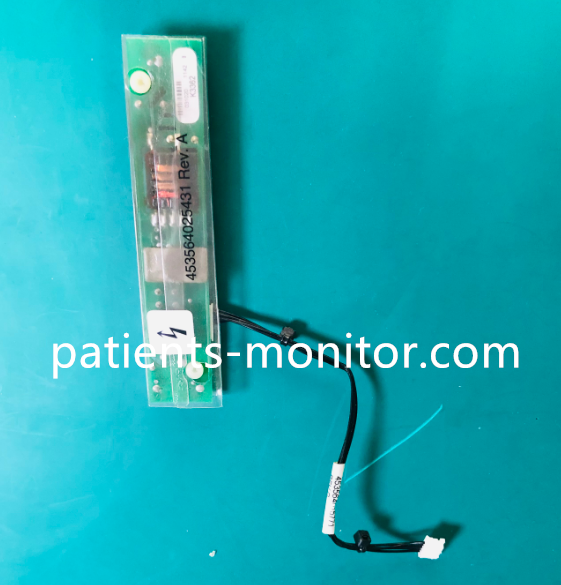

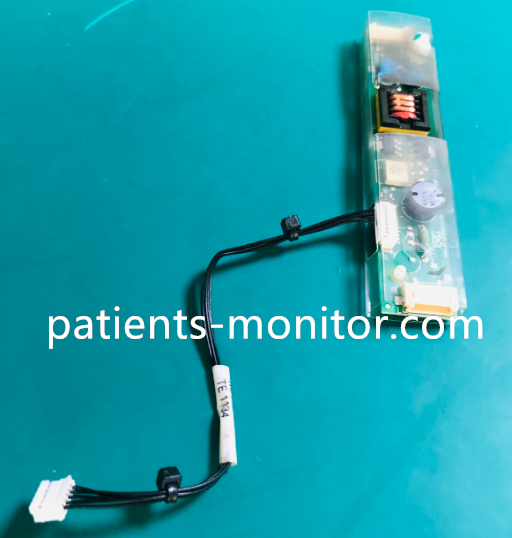

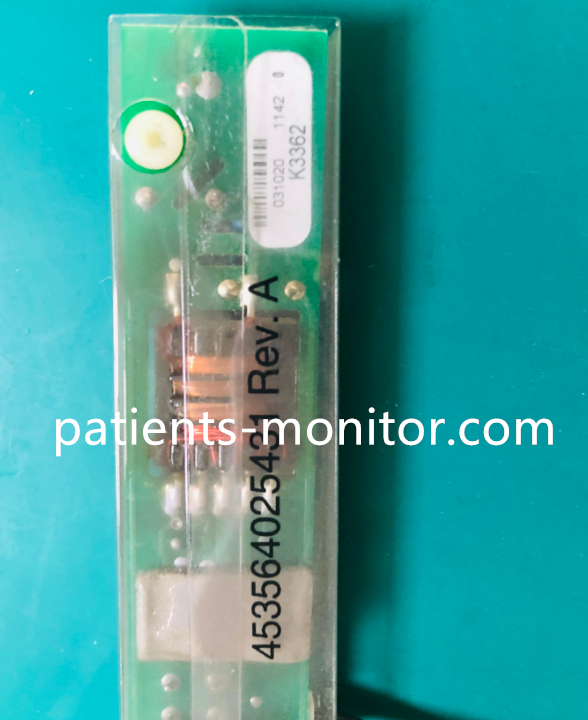

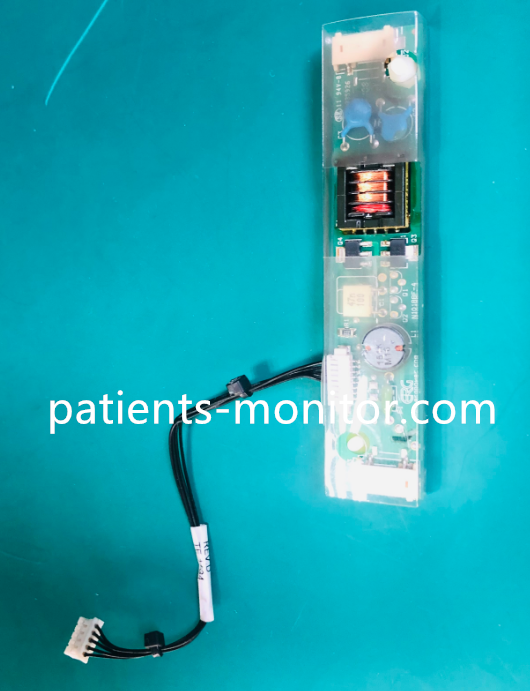

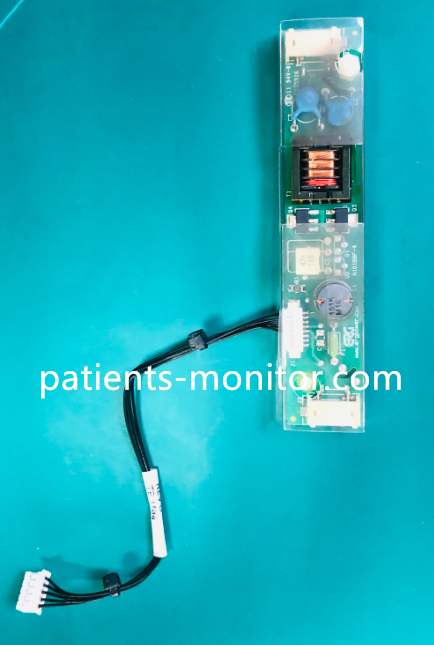

The board is a long, green PCB covered with a transparent plastic protective shell. It integrates components such as transformers, capacitors, and resistors, and one end is connected to a black cable (for connecting to the host motherboard). It is responsible for generating high voltage to drive the display screen, ensuring that the patient's vital signs (such as electrocardiogram, blood oxygen saturation, and non-invasive blood pressure) are clearly displayed in real time.

► Specification

► Features

► Product Usage Guide

• Electrostatic Discharge Protection: Always wear an anti-static wrist strap when handling the circuit board to prevent electrostatic discharge from damaging components.

• Power Supply Check: Before installation, confirm that the monitor's main power output is 15V DC.

• Connection Verification: Ensure the black cable connector is securely connected to the motherboard to avoid signal loss.

• No Firmware Required: This hardware replacement requires no software update; simply power on after installation.

► Detailed Photos

Tags： Philips SureSigns VM6, Inverter High Pressure Board, OEM 453564025431 K3362, Patient Monitor Repair,

Copyright statement:If not specified, the articles on this site are all PMR Med originals. Please indicate the source and attach the link to the 453564025431 K3362 PHILIPS SureSigns VM6 Patient Monitor Inverter High Pressure Board article for reprinting.
