New Original Philips MX450 Patient Monitor Display Screen NL12880BC20-05
Announcer: PMR Med Release Time：2026-10-18
New Original Philips MX450 Patient Monitor Display Screen NL12880BC20-05
► Product Overview
The display uses a transmissive a-Si TFT-LCD panel with a resolution of 1280 × 800 (WXGA) and a 16:10 aspect ratio. Its 450 cd/m² brightness and 1000:1 contrast ratio keep waveforms and numeric data readable in both bright clinical environments and dimly lit patient rooms. The panel’s UA-SFT (Ultra Advanced Super Fine TFT) mode ensures colour and contrast remain consisten.
The screen is designed to present clear, high contrast waveforms and patient data from virtually any angle in the room.
► Specification
Part Number | NL12880BC20-05 |
Compatible Device | Philips IntelliVue MX450 Patient Monitor |
Panel Type | a-Si TFT-LCD, LCM (Transmissive, Normally Black) |
Diagonal Size | 12.1 inches |
Resolution | 1280 (RGB) × 800, WXGA |
Pixel Density | 124 PPI |
Aspect Ratio | 16:10 |
Active Area | 261.12 × 163.2 mm |
Package | Carton box |
Brightness | 450 cd/m² (Typ.) |

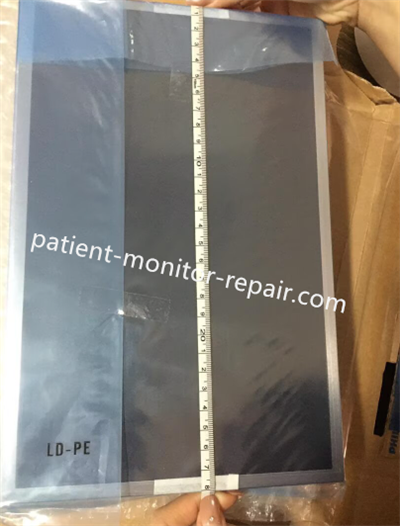

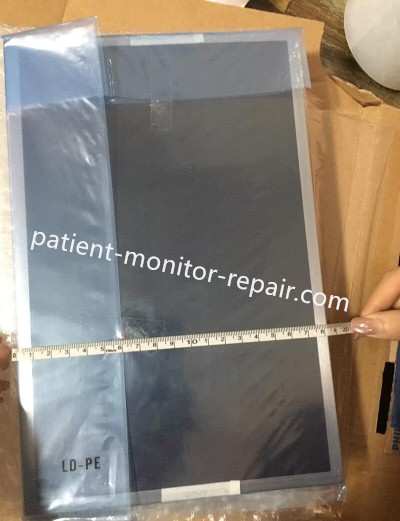

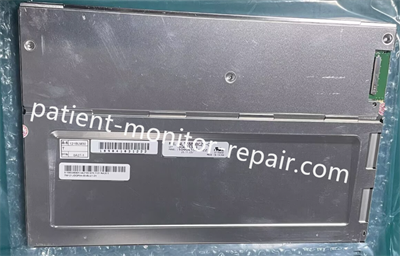

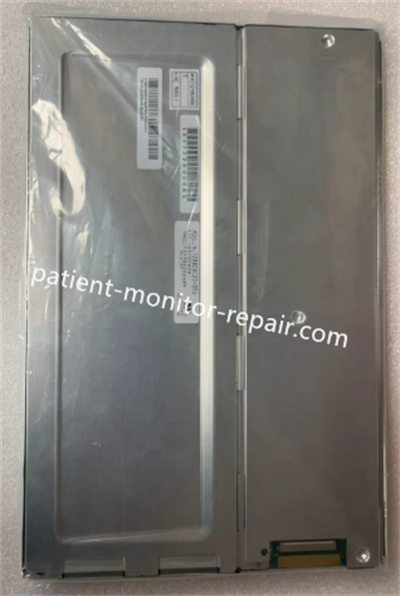

► Detailed Photos
