Philips Goldway UT7000C Patient Monitor Complete Shell

Philips UT7000C Complete Shell

Philips Goldway UT7000C Patient Monitor Complete Shell

► Product Overview

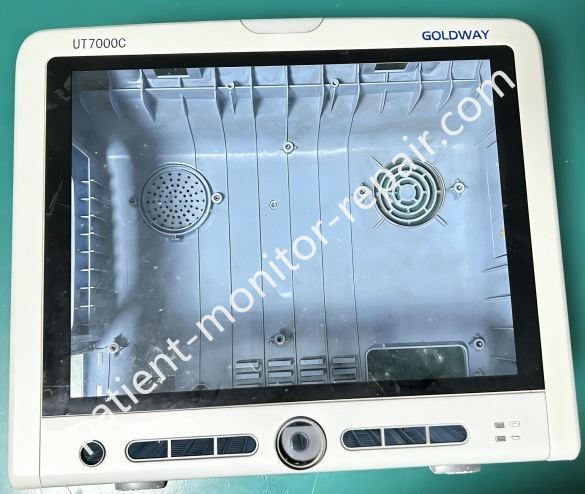

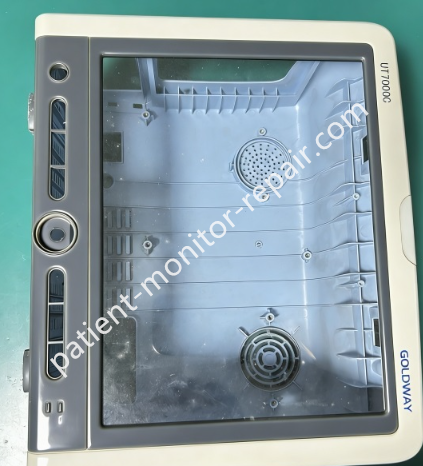

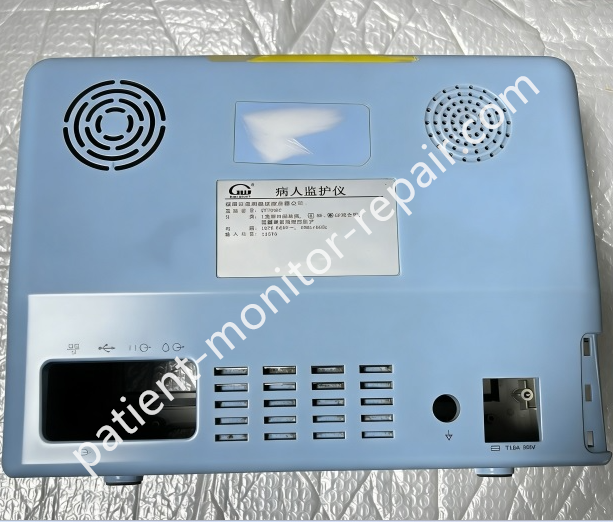

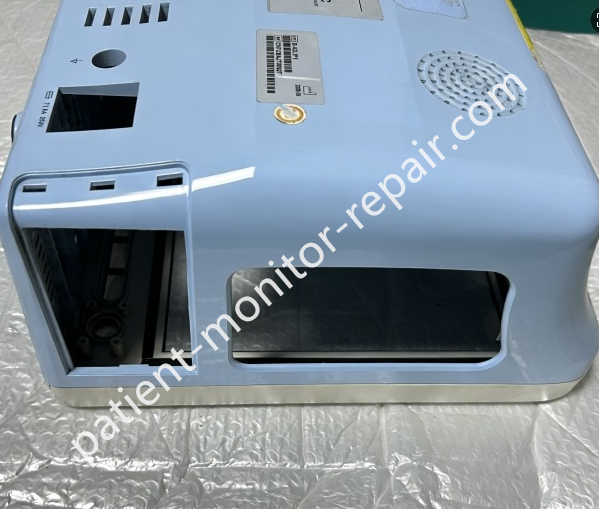

The front shell is the primary structural component on the front of the monitor. It holds the display screen in place, provides mounting points for the keypad and alarm indicator board, and shapes the overall user interface layout. The rear shell covers the back of the monitor, protecting the internal boards and providing cutouts for all the external ports and connectors.

The front shell is designed with clearly defined functional zones: an upper cavity that holds the alarm indicator board, a central display window with retention clips that secure the screen in place, and a lower section with pre-cut openings for the power button, alarm silence, and parameter adjustment keys. Cable routing channels keep internal wiring organised and prevent pinching or chafing that could lead to intermittent faults. The side cutouts for ECG, SpO₂, and NIBP connectors are precision-moulded to match the original sensor plugs.

► Specification

► Detailed Photos

Tags： Philips Goldway UT7000C, UT7000C Complete Shell, Patient Monitor Shell,
