Philips Goldway UT7000C Patient Monitor Front Frame

► Product Overview

The front frame is the structural backbone of the Philips Goldway UT7000C patient monitor the part that holds everything together on the front of the device. It's the component that secures the display in place, provides mounting points for the keypad and alarm indicator board, and shapes the overall user interface layout. It's also one of the most frequently replaced parts in hospital service departments, simply because it takes the most abuse.

The design is organised into clear functional zones. The upper section has a cavity that holds the alarm indicator board (C‑ALARM012A) in place. The central section features a full screen display window with retention clips that secure the screen firmly. The lower section has pre‑cut openings for the power button, alarm silence, and parameter adjustment keys, with a clip in design that allows the keypad board to be installed without screws.

► Specification

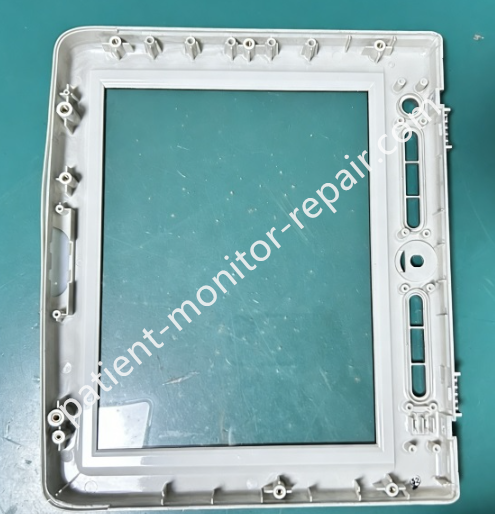

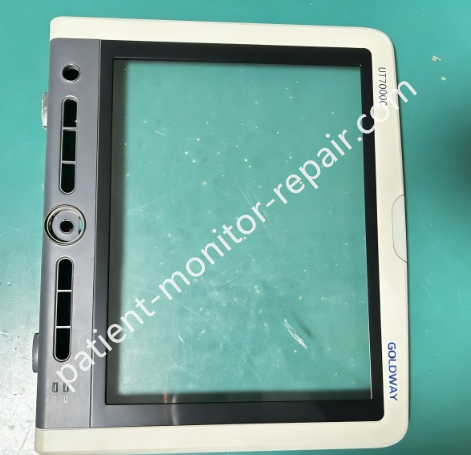

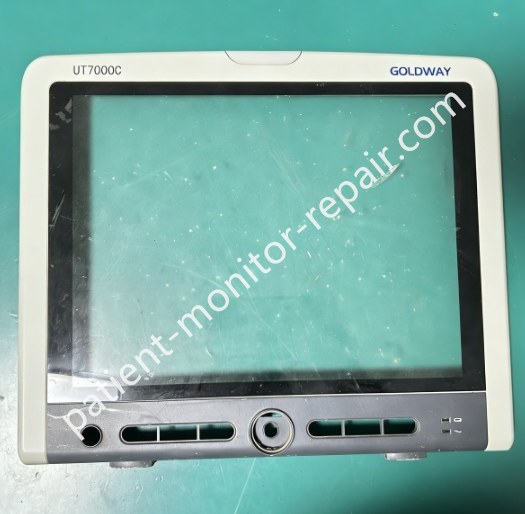

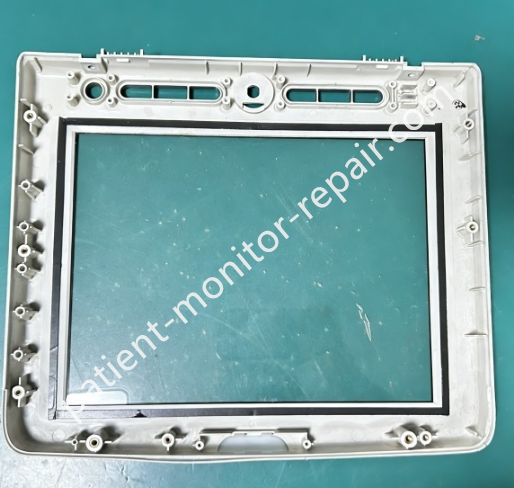

► Detailed Photos

Tags： Philips Goldway UT7000C, UT7000C Patient Monitor, Philips Front Frame,
