Philips G60 Patient Monitor Interface Board Includes VGA USB Interface, JM1071450329, G60C01A

Philips G60 Interface Board

Philips G60 Patient Monitor Interface Board Includes VGA USB Interface

JM1071450329, G60C01A

► Product Overview

The JM1071450329 (part number G60C01A) is a rear signal interface board designed specifically for Philips G60 series bedside monitors. Located on the back of the monitor, it serves as the data hub between the main control board and all external devices.

This board features a standard VGA video output interface for transmitting the monitor's image to an external screen, as well as multiple USB ports for data export, system updates, and diagnostics. It utilizes a medical grade FR 4 flame retardant PCB board with a moisture proof and corrosion resistant gold plated finish. Multi-stage electrostatic discharge (ESD) protection circuitry prevents electrostatic discharge, and the filtering circuitry is optimized for the electrical noise environments of intensive care units (ICUs) and operating rooms. In these environments, onboard voltage regulators maintain stable power for video and USB, preventing sudden voltage drops during device insertion and removal that could lead to system restarts or data loss.

► Specification

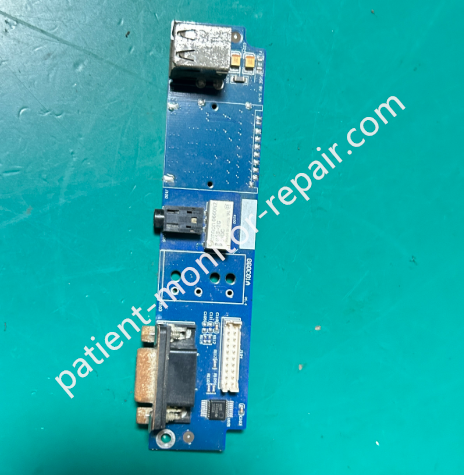

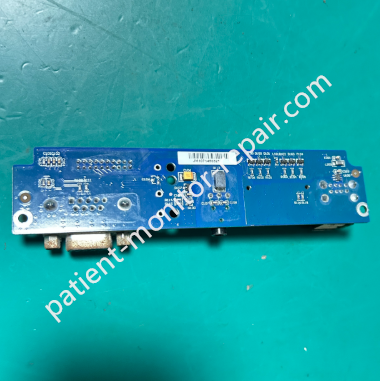

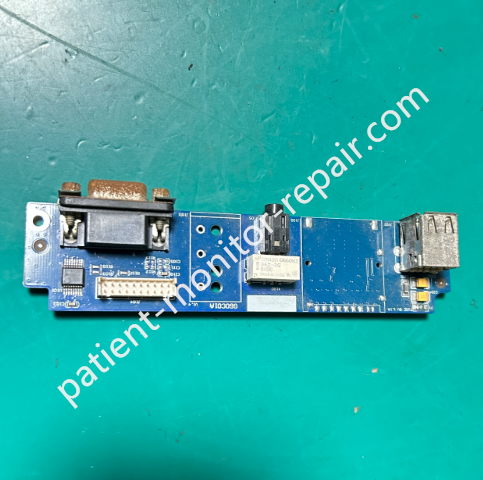

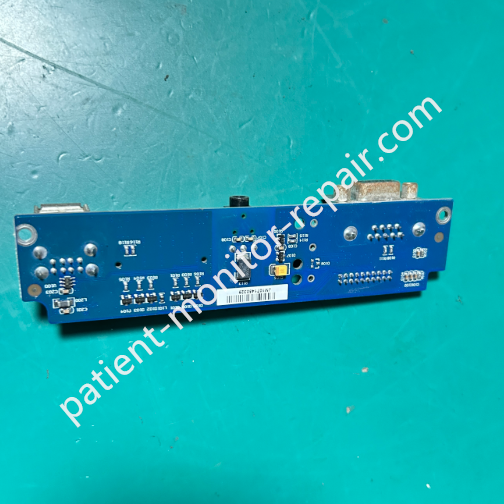

► Detailed Photos
