Philips Goldway UT7000C Patient Monitor Parameter Board Wiring
Announcer: PMR Med Release Time：2026-09-20
Philips UT7000C Parameter board wiring
Philips Goldway UT7000C Patient Monitor Parameter board wiring
► Product Overview
The cable uses a multi core shielded ribbon design with keyed, snap-lock connectors at both ends. Inside the cable, the wiring is divided into dedicated groups: power supply lines, differential communication signal pairs, fault detection loops, and a shielded ground. The cable itself uses flexible, bend-resistant materials that can withstand the repeated opening and closing of the monitor during repairs, as well as the vibrations that come with transporting the device between departments
► Specification
Used for | Philips Goldway UT7000C patient monitor |
Cable Type | Multi core shielded ribbon cable |
Connector Type | |
Internal Wiring Groups | Power supply lines, differential communication signal pairs, fault detection loop, shielded ground |
Power Supply Voltage | |
Communication | |
Shielding | Aluminium foil shield layer + shielded ground contacts at both end |

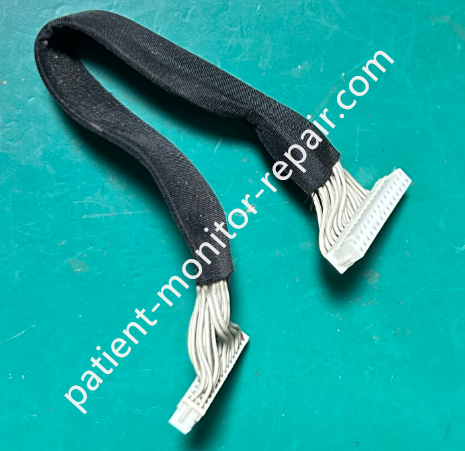

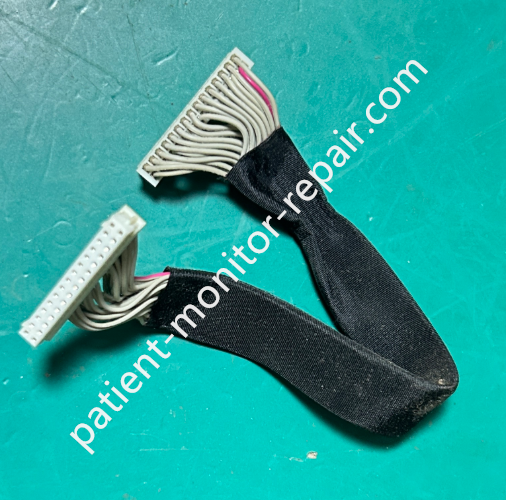

► Detailed Photos
Tags： Philips Goldway, UT7000C Patient Monitor, Parameter Board Wiring,
