Philips Goldway UT7000C Patient Monitor key film

Philips UT7000C key film

Philips Goldway UT7000C Patient Monitor key film

► Product Overview

The key membrane in the Philips Goldway UT7000C is located between the front panel of the display and the internal keyboard. It's a crucial component of the user interface; it's this membrane that you actually contact when you press the power button, start a blood pressure measurement, turn off an alarm, or freeze a waveform.

This key membrane uses a multi-layered composite structure. The top layer is a durable PET touch panel that can withstand hundreds of presses per day. The middle layer contains conductive carbon ink circuitry, and the bottom layer has metal clips that contact the keyboard below when a button is pressed. From the main menu to the parameter adjustment keys, each function key on the display has its own raised clip on the membrane; these clips are tested to withstand thousands of presses without losing their elasticity.

► Specification

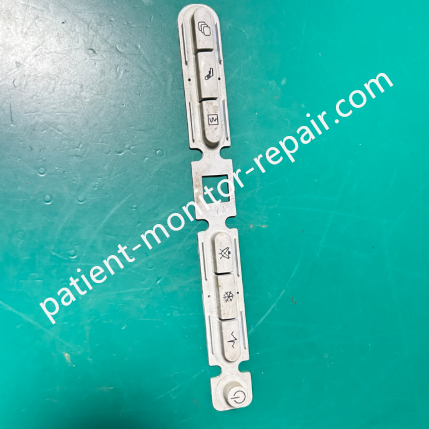

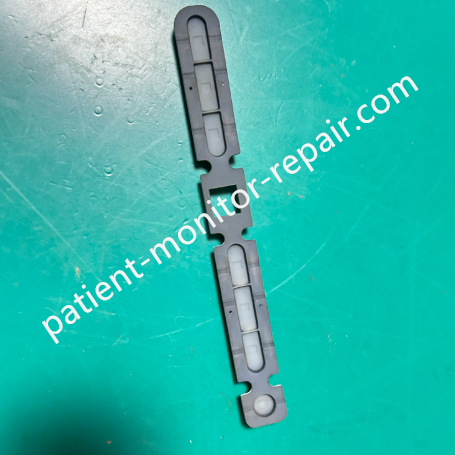

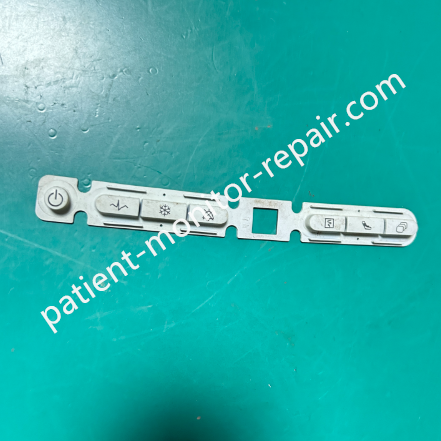

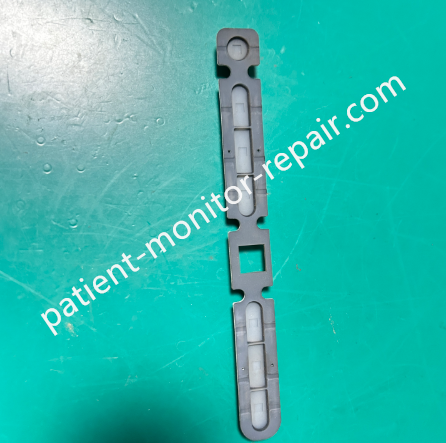

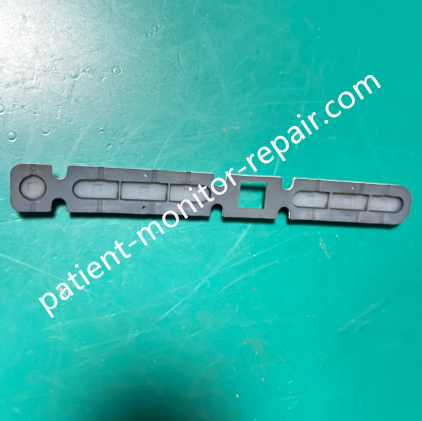

► Detailed Photos

Tags： Philips Goldway UT7000C； Patient Monitor ；UT7000C key film,
