Philips Goldway GS20 Basic 5 Multiple parameters Patient Monitor

Announcer: PMR Med Release Time:2026-07-18

Philips  GS20 Monitor

Philips Goldway GS20 Basic 5 Multiple parameters Patient Monitor



► Product Introduction


The GS20 uses Philips' proven FAST SpO₂ algorithm, which maintains accuracy even during patient motion and in low‑perfusion states. The Philips ECG algorithm supports arrhythmia analysis and ST‑segment monitoring, providing clinical grade data that clinicians can trust.

Covers all the essential parameters. The monitor tracks ECG (3‑lead or 5‑lead), respiration, SpO₂, NIBP, pulse rate, and dual temperature as standard. Optional add ons include invasive blood pressure (2‑channel), capnography (EtCO₂), and a built‑in thermal recorder , allowing the system to scale with patient acuity.


► Specification


Manufacturer

Philips Goldway

Model

GS20

Display

10.4-inch colour TFT LCD

Display Resolution

800 × 600 pixels

Waveform Channels

Up to 8

Dimensions (W x D x H)

316 × 265 × 131 mm

ECG

3-lead / 5-lead

Heart Rate

15 – 350 bpm

SpO₂

0 – 100%

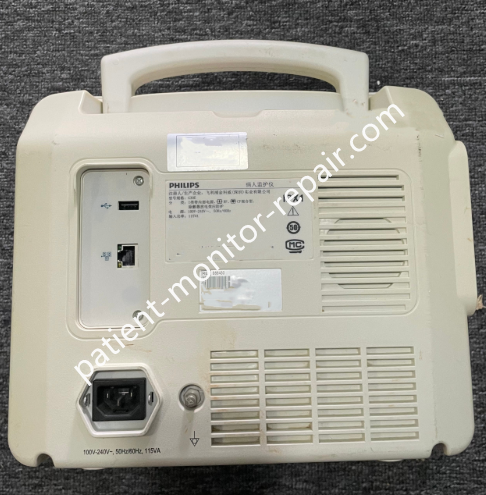

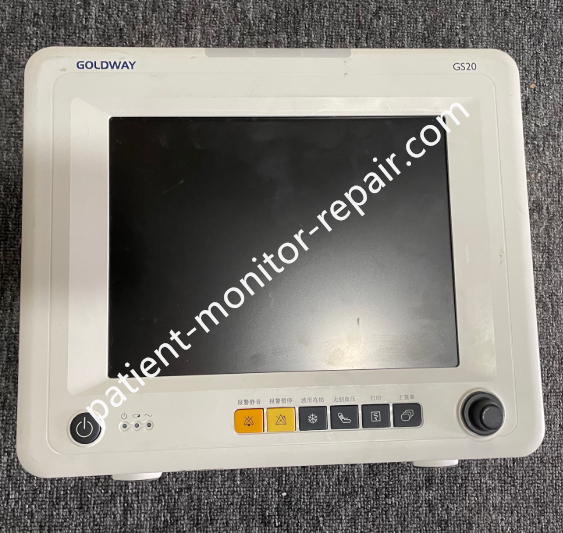

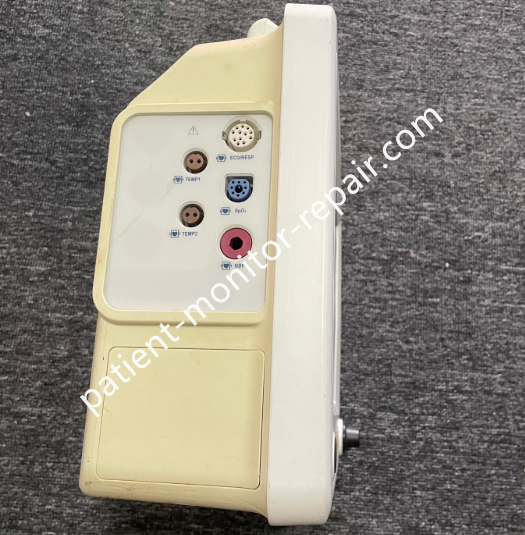

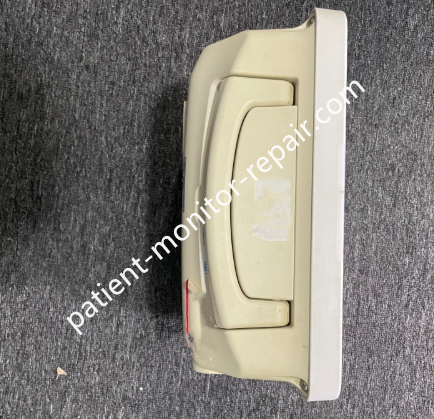

► Detailed Photos
