Philips MP40 Patient Monitor Connector Board M8063-66401 M8063-61001 M8001-60
Announcer: PMR Med Release Time：2026-06-22
Philips MP40 Connector Board
Philips MP40 Patient Monitor Connector Board M8063-66401 M8063-61001 M8001-60
► Product Introduction
The connector circuit board serves as a vital internal signal and power connection module for the Philips IntelliVue MP40 patient monitor. Positioned as the bridge between the monitor’s main control unit and external functional modules, it undertakes all core docking work for data interaction and circuit conduction, supporting the normal operation of multi-parameter monitoring functions.
These connector boards provide the physical docking station, power supply, and high-speed data link that allow the monitor to communicate with external MMS modules
► Specification
Compatible Devices | Philips IntelliVue MP40 |
Type | |
Serial Interface (RS-232) | |
Data Rate | |
Power Supply | |
Weight | |
Operating Temperature | |
Humidity | 15% to 95% non-condensing |

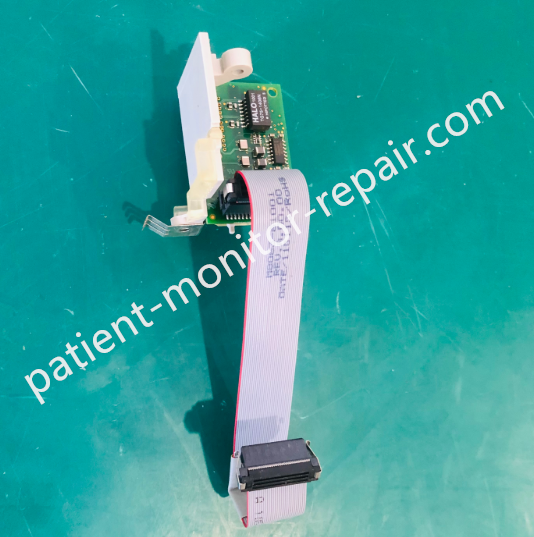

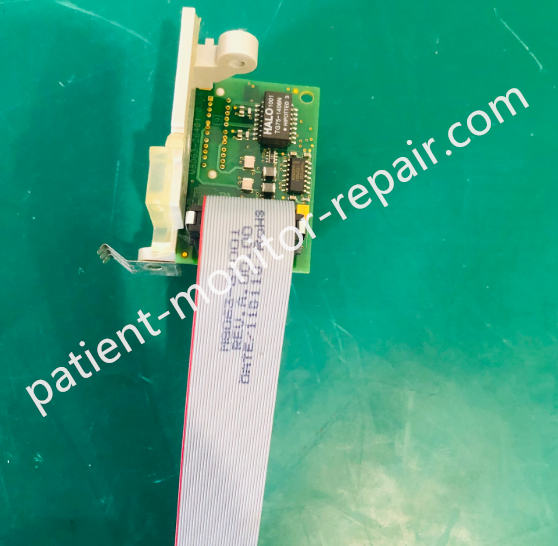

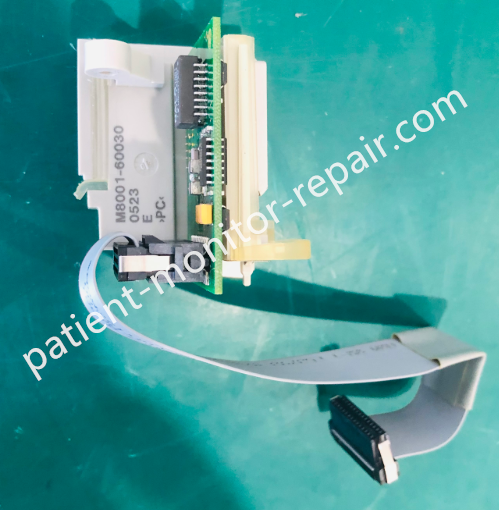

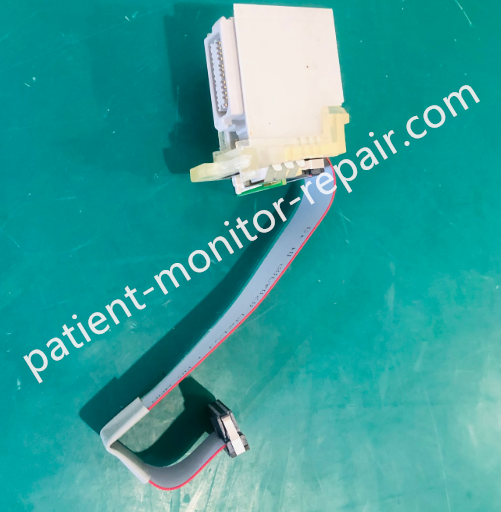

► Detailed Photos
Tags： Philips MP40, Patient Monitor Board, MP40 Connector Board,
