Philips Goldway G30 G40 Patient Monitor High Pressure Voltage Board TPI-02-0426-K

Philips G30 G40 High Pressure Voltage Board

Philips Goldway G30 G40 Patient Monitor High Pressure Voltage Board TPI-02-0426-K

► Product Introduction

The Philips Goldway G30/G40 high-voltage board (model: TPI-02-0426-K) is a backlight inverter board designed specifically for the G30 and G40 patient monitors. Its primary function is to drive the liquid crystal display (LCD) panel. Specifically, it converts the +12V DC power supplied by the monitor's main power supply into the high-frequency, high-voltage AC power required to drive the backlight inside the LCD screen.

This board is manufactured to medical-grade standards and features a modular design. It integrates overvoltage, overcurrent, and overtemperature protection functions, automatically shutting down and sending a fault signal back to the main system upon detecting an abnormality.

► Specification

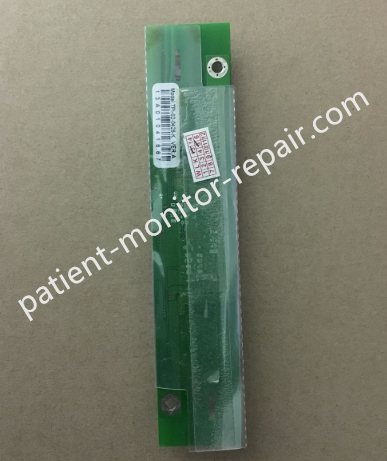

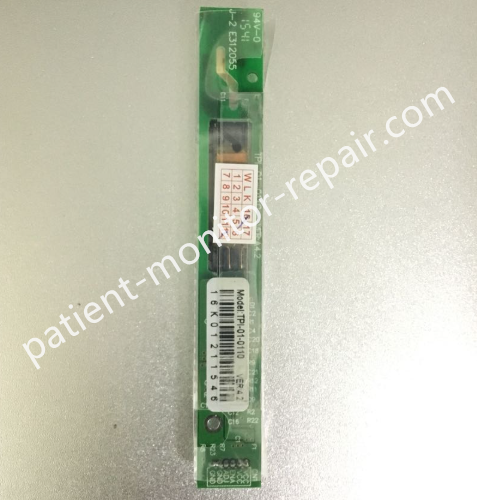

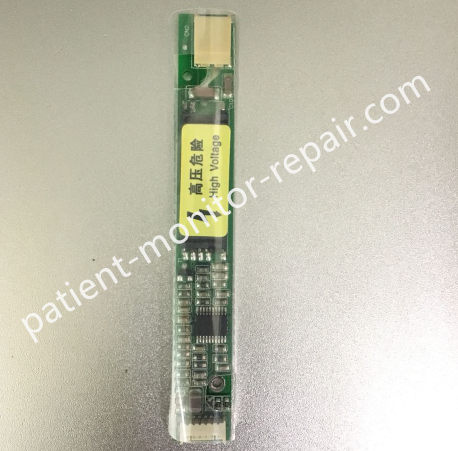

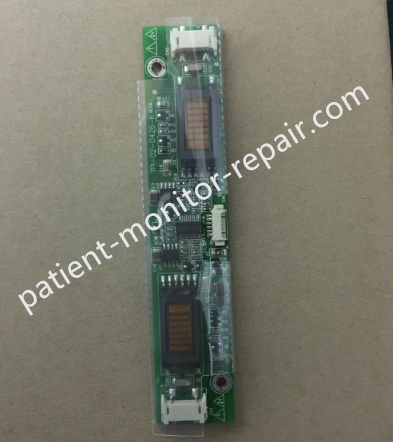

► Detailed Photos

Tags： Philips Goldway G30 G40, High Pressure Voltage Board, G30 G40 Patient Monitor Board,
