Philips TC20 TC30 ECG Machine Display Assemble PN 453564227721
Announcer: PMR Med Release Time：2026-06-08
Philips TC20 TC30 ECG Machine Display Assemble PN 453564227721
► Product Overview
- This is the original display assembly (Part No. 453564227721) engineered exclusively for the Philips PageWriter TC20 and TC30 ECG machines. As the core human‑machine interface, it integrates a high‑resolution color LCD, a resistive touch panel, and a backlight unit into one compact module. It serves as the primary interface for viewing real‑time ECG waveforms, patient data, and operational menus, while also enabling direct touchscreen control of the device. Built to withstand daily clinical use, it ensures stable and accurate display performance over long periods, supporting consistent diagnostic workflows.
► Specification
Type | |
Color Depth | VGA resolution (640 x 480 pixels), 18 bit per pixel |
Viewable Area | |
Backlight | Integrated LED |
Aspect Ratio | 4:3 |
Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Operating Humidity | 10% to 90% RH (non condensing) |

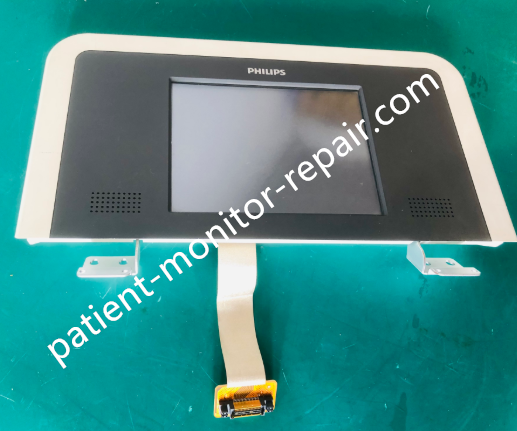

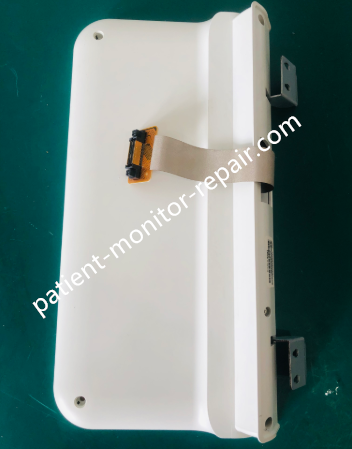

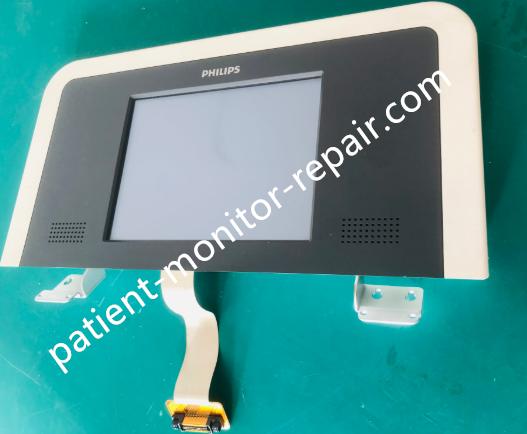

► Detailed Photos
Tags： Philips Display, TC20 TC30 ECG Machine, Philips Assemble PN 453564227721,
