PHILIPS TC20 TC30 ECG Machine Mainboard 453564197811 SBB01597
Announcer: PMR Med Release Time：2026-06-06
PHILIPS TC20 TC30 ECG Machine Mainboard 453564197811 SBB01597
► Product Overview
The PHILIPS TC20 / TC30 ECG Machine Mainboard (PHILIPS Part No. 453564197811 / SBB01597) is the core central processing unit (CPU) used in the PageWriter TC20 and TC30 electrocardiographs. This mainboard integrates the system’s processor, control electronics, and all essential I/O interfaces, including connections for the touchscreen display, keyboard, printer, power supply, and patient interface module (PIM). As the "brain" of the ECG system, it orchestrates the entire workflow from 12-lead signal acquisition and DXL algorithm interpretation to report generation. It also provides internal system memory to store up to 200 ECGs directly on the board.
► Specification
Part Number(s) | 453564197811 / SBB01597 |
Also Referred To As | ECG CPU Board / Main Control Board |
Compatibility (Primary) | Philips PageWriter TC20, TC30 |
Function | Central processing, ECG algorithm execution (DXL), system control |
Onboard Features | Processor, power management circuits, memory (holds up to 200 ECGs), firmware, I/O ports |
Interfaces | Touchscreen, Keyboard, Printer, PIM (Patient Interface Module), AC Power |
Primary Platform | Windows CE-based platform |
Physical Form | PCB designed for internal chassis mounting |

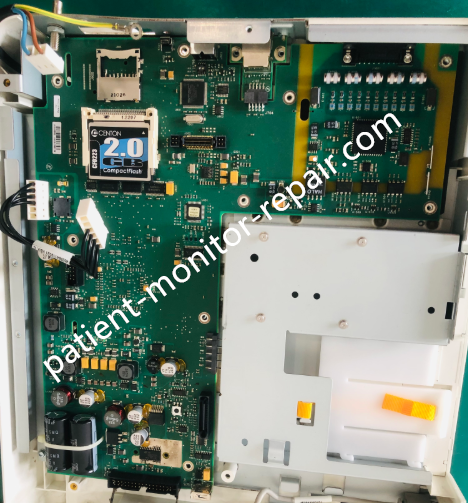

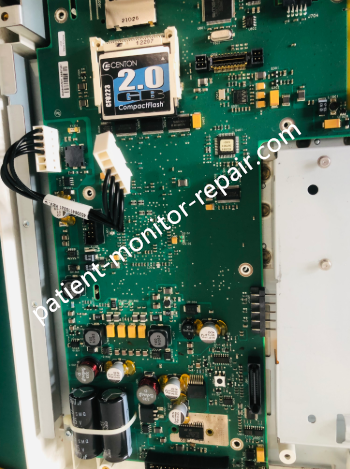

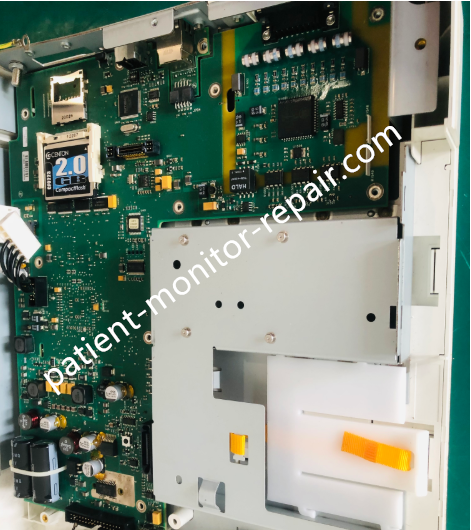

► Detailed Photos
