Philips AV FM20 FM30 Fetal Monitor Display Assy 5 Wire Part 453564435191
Announcer: PMR Med Release Time：2026-06-02
Philips FM20 FM30 Display
Philips AV FM20 FM30 Fetal Monitor Display Assy 5 Wire Part 453564435191
► Product Overview
The Philips AV FM20/FM30 Fetal Monitor Display Assy 5‑Wire (Part Number 453564435191) is the core display module for the Avalon FM20 and FM30 fetal/maternal monitors. This assembly combines a 5‑wire resistive touchscreen, a 6.5‑inch TFT LCD panel, and an LED backlight. It connects to the display adapter board (M2703‑66440) and is mounted inside the display housing. The adapter board links to the recorder adapter board (M2703‑66430) via a 50‑pin ribbon cable, and a green power‑on LED is also integrated on the adapter board.
► Specification
Part Number | 453564435191 |
Compatible Monitors | Philips Avalon FM20, FM30 fetal/maternal monitors |
Screen Size | 6.5 inches |
Display Type | TFT LCD (color) |
Touchscreen Type | 5 wire resistive touch |
Backlight Type | LED |

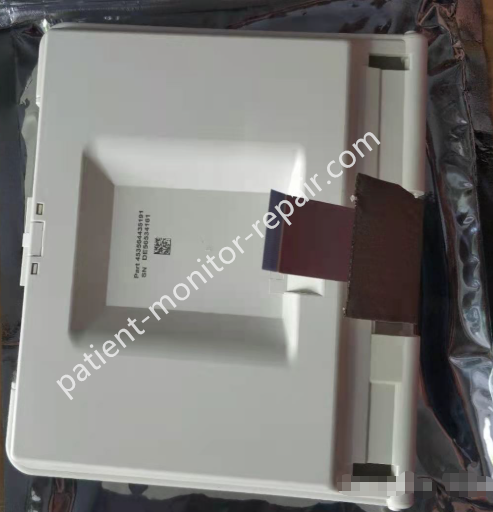

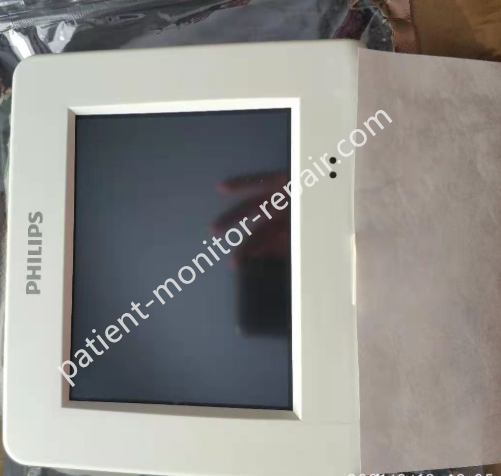

► Detailed Photos
