Philips MP20 MP30 Patient Monitor Battery Board M8067-66461

► Product Overview

1.The Philips IntelliVue MP20/MP30 Patient Monitor Battery Board (Part Number: M8067-66461) is a critical power management component designed for the MP20 (M8001A) and MP30 (M8002A) patient monitors.

2.This printed circuit board assembly (PCA) serves as the interface between the monitor's rechargeable lithium-ion batteries and the main system, handling battery charging, power distribution, and battery health monitoring functions.

3.The M8067-66461 board is engineered to support the MP20/MP30's dual-battery configuration, which provides up to five hours of continuous operation during patient transport or when mains power is unavailable.

4.When the monitor is connected to AC power (100-240 VAC), this board manages the charging of the 12V / 4400mAh lithium-ion batteries. During battery-powered operation, the board delivers stable DC power from the batteries to the monitor's core components, including the display, measurement modules, and processing unit

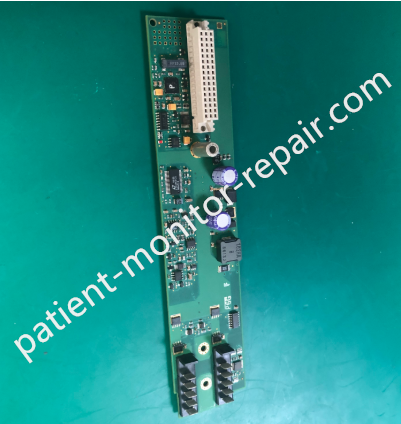

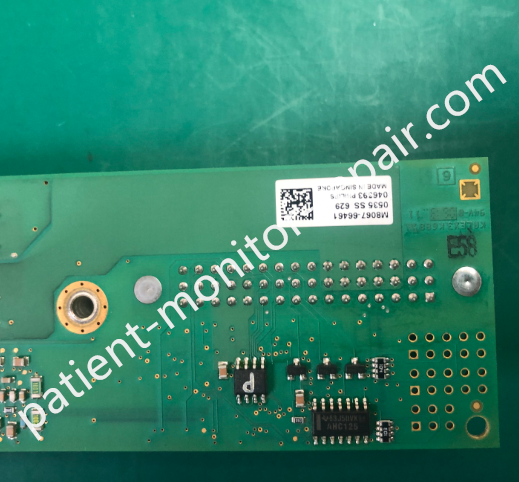

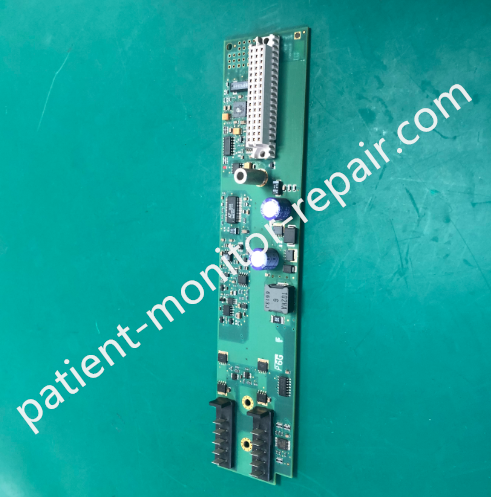

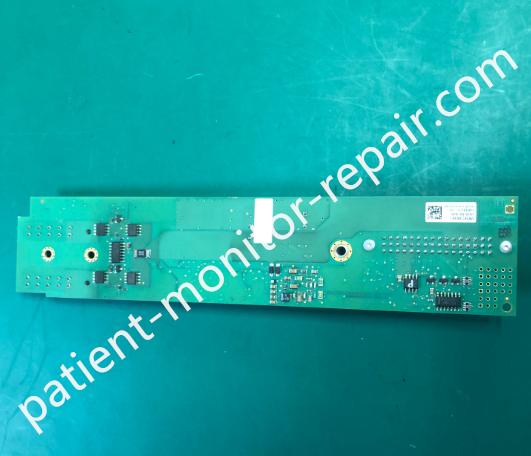

► Detailed Photos
