Philips MP50 Patient Monitor LAN Network card M8090-67021 M8090-26401

Philips  MP50 Network card

Philips MP50 Patient Monitor LAN Network card M8090-67021 M8090-26401

► Product Overview

1. This LAN network card assembly, featured with OEM part numbers M8090-67021 and M8090-26401, serves as the dedicated network communication module for Philips IntelliVue MP50 (also compatible with MP40) patient monitors. It acts as the core data transmission gateway that enables stable network connection and medical data interaction between the monitor and hospital central monitoring systems.

2.  Responsible for uploading real-time vital sign data, waveform records, alarm logs and historical monitoring information, this board ensures seamless data synchronization for hospital information management. It can effectively resolve common network failures such as network disconnection, failure to connect to central station, unstable data transmission and unrecognized network port. Adopting modular plug-and-play design, the board requires no complicated calibration after replacement, allowing medical staff to quickly restore the monitor’s network communication function and guarantee continuous clinical data transmission.

► Specification

•  Applicable Devices: Philips IntelliVue MP40, MP50 Patient Monitor

• OEM Part Numbers: M8090-67021, M8090-26401

•  Product Type: Built-in LAN network interface circuit board assembly

•  Network Standard: Compliant with 10/100Mbps adaptive Ethernet protocol

•  Interface Type: Standard RJ45 network port, dedicated internal pin definition

•  Transmission Function: Supports real-time vital sign data, waveform data, alarm event upload and offline data synchronization

• Anti-interference Design: Built-in filter and EMC shielding circuit, adapts to complex electromagnetic environment in clinical wards

•  Connection Mode: Internal buckle and flat cable docking, modular integrated installation

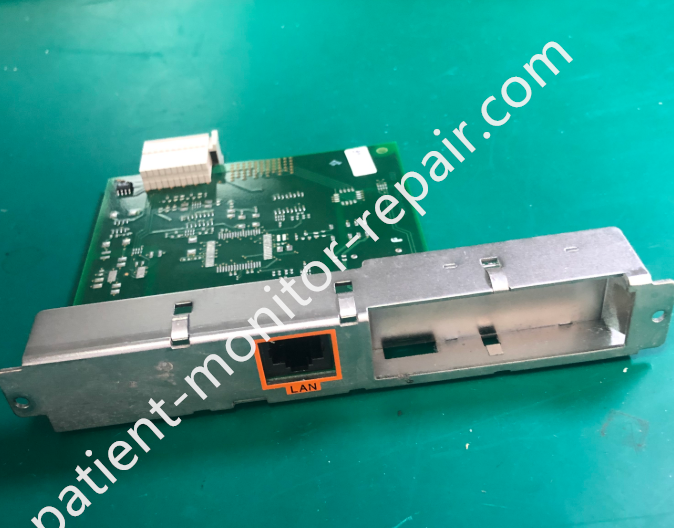

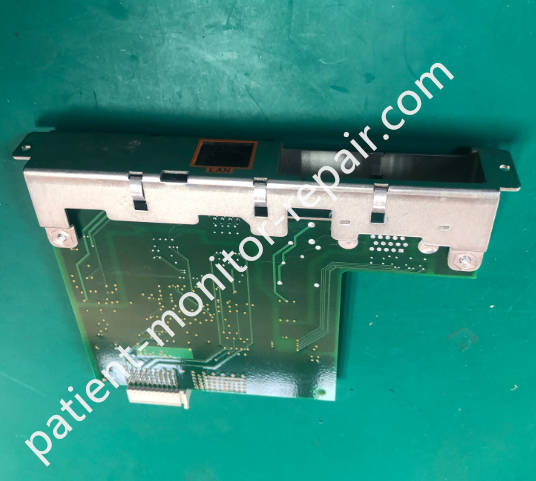

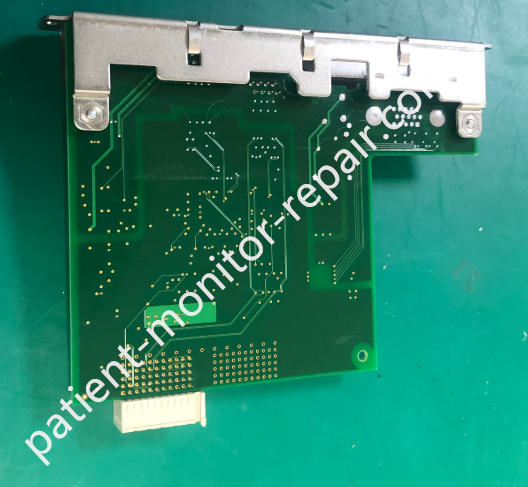

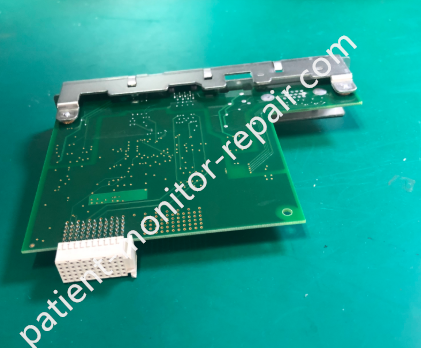

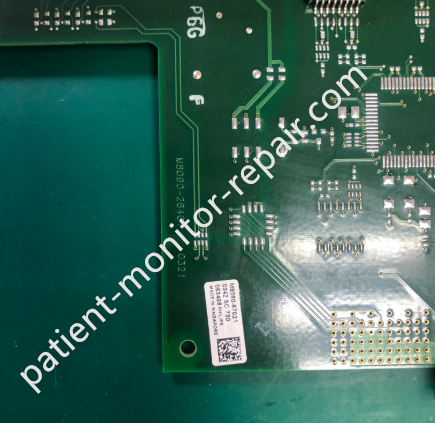

► Detailed Photos
