Philips X2 Patient Monitor Power Supply Board M3002-66460

Philips X2 Power Board

Philips X2 Patient Monitor Power Supply Board M3002-66460

► Product Overview

The Philips IntelliVue X2 Multi-Measurement Module/Transport Monitor Original Power Board Assembly: M3002-66460 is the core power supply module for the Philips X2/M8002A (M3002A) patient monitor. This compact PCB board contains voltage regulation, power distribution, and battery charging management circuitry, responsible for converting input power from the main monitor (connected via MSL), the external power adapter M8023A, or the internal rechargeable lithium battery into the stable DC voltage required by the device, providing reliable power to the mainboard, measurement modules, 3.5-inch color touchscreen, and parameter sampling circuitry.

This power board accepts 36V to 60V DC floating input, with an average power consumption of less than 12W and a peak power consumption of less than 30W during charging.

► Specification

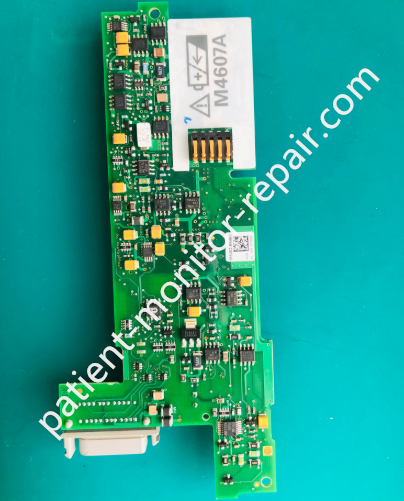

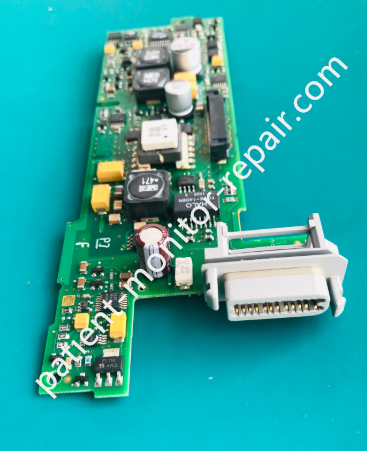

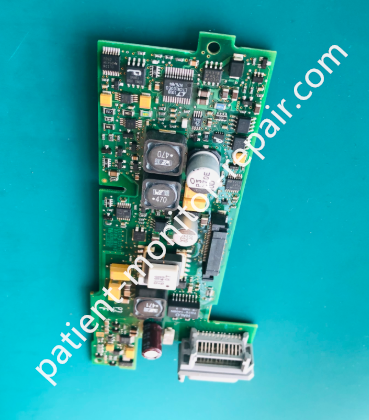

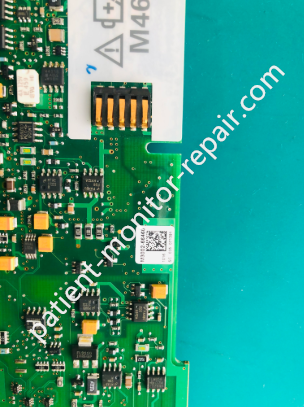

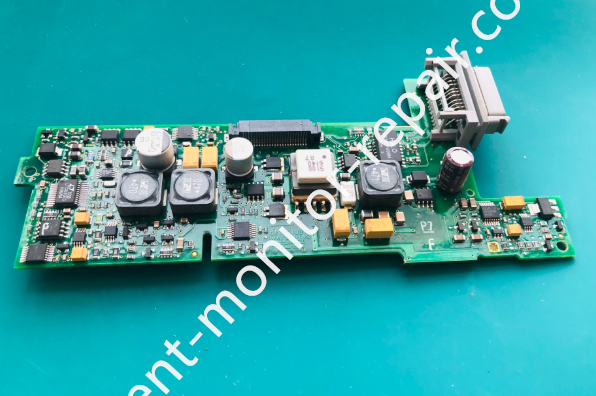

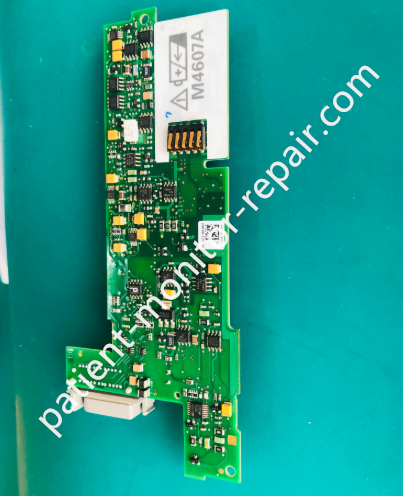

► Detailed Photos

Tags： Philips X2 Patient Monitor, Power Supply Board, X2 Power Board,
